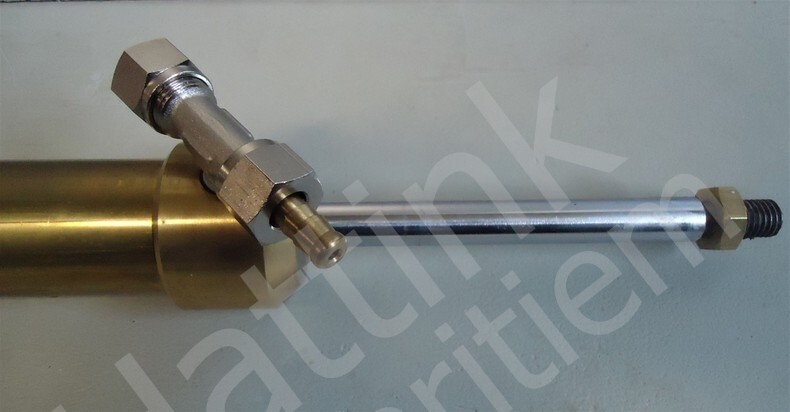

Cylinder Type MTC72, Tube D10mm
Description on Article:
Vetus
Made in Holland
MTC7210
PO 10482/1/07E08

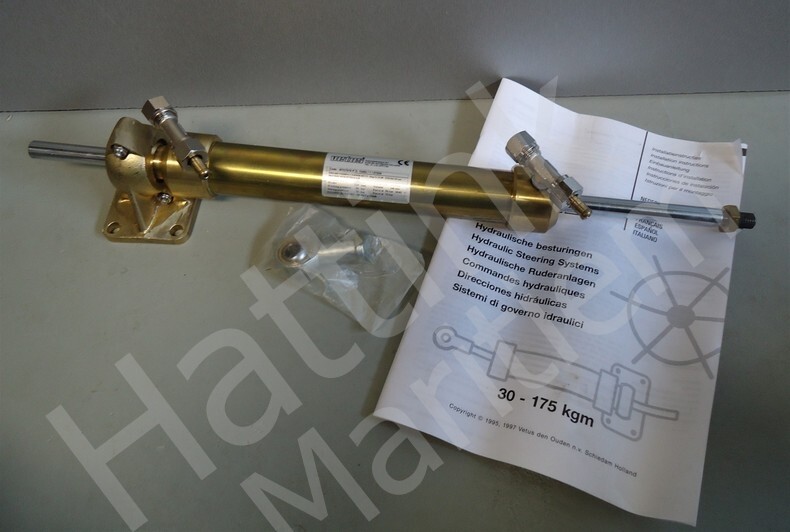

Inboard Steering Cylinder MTC72
DWG CL-231.00
Stroke 225mm
Provided With Fittings d.10
Cylinder bore 32mm
Stroke 225mm
Working Pressure 56 Bar
Setting Pressure 70 Bar
Piston Rod 14mm
Volume 146 cmc
Force at 56 Bar 3640N
Description on packaging:
Vetus
Cylinder Type MTC72, Tube 10mm
MTC7210
Made in Holland
Hydraulic Steering
Cylinder Only
Applications and Examples or
Names and product codes:
