Govi trailer units, the right choice for you Trailer refrigeration.
Type GV-1600N

Arktik 1600N-2000N-2000P-2500N

Govi trailer unit set

Voltage
Type                 Temperature         Volumen     Capacity*                   Voltage
arktik 1600 N     0 ° C to + 10 ° C     12m³       1600 Watt / 2 ° C        230V / 50Hz 0.855 kW
arktik 2000 N     0 ° C to + 10 ° C     19m³       2050 Watt / 2 ° C        230V / 50Hz 1.07 kW
arktik 2500 N     0 ° C to + 10 ° C      27m³      2500 Watt / 2 ° C        230V / 50Hz 1.2 kW
arktik 2000 P     -20 ° C to + 10 ° C   11m³       2050 Watt / -20 ° C    230V / 50Hz 1.2 kW

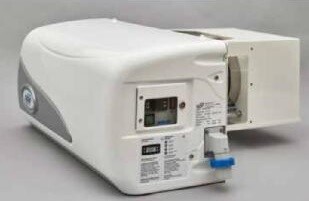

Arktik Trailer Unit
Cooling systems for stationary trailers (cooling trailer / refrigerated trailers)
Normal cooling (0 ° C to + 15 ° C)
Refrigerant R134a (1600N / 2000N) R404A (2500N / 2000P)

* The data is based on a set temperature of 2°C
The cooling is based on the following environmental variables: outside temperature 30°C, R.H. 50%
Insulation with a k-value of is recommended.

Serial in all trailer refrigerations

Automatic defrosting with electric tubular element.
Light switch for lamp in trailer.
Supplied with two keys for control panel.
Lamp armateur incl. 60 wat lamp.
Pre-wired cable for connecting door contact brackets.
Pre-wired cable for connecting a lamp.
Connection socket "with sealing cap.
Thermometer for reading the indoor temperature.
Lockable Control Panel.
Warranty Cooling unit Type GV-1600N 1 Year Manufacturer's warranty from Govi

Unit Connect /To turn on

Change setpoint

Manual defrost
