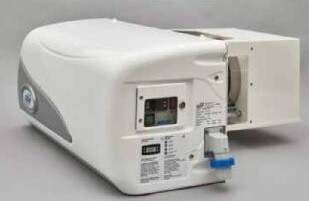

Trailer cooling Govi Artic 2500N:
Space cooling Govi Monoblock without heating.
Important information about shipping Govi units.
We prefer that you pick up the unit yourself in Katwijk/Cuijk.
This is the most favorable price for you.
If our Govi units have to be shipped, this will be done on
a pallet. This is done on a larger pallet than standard so that
the unit falls within the pallet and therefore no
damage can occur to the unit during transport. That is why the shipping costs
are so high because the unit is not stackable and therefore takes up an entire
pallet space on an extra large pallet.
It is also possible to arrange your own shipment for the unit, this is done on the standard pallet. Keep in mind that you
are also liable if there is damage to the
unit arise during transportation.
Trailer/Space size : up to 20 m³ at +2°C / up to 25m³ at +10°C
Temperature range : From +2 to +10 °C
Power supply : 230V /50 Hz
Current draw : 7 (2°c) 7.5(10°c) amp
Consumption LRA (starting current) : 32 Amp
Consumption consumption FLA: 7 Amp
Consumption in cooling: 1200W
Defrost heating : Elektice 600 W
Cooling power : 2500 W at +2°C
Refrigerant : R452A
Refrigerant quantity : 800 grams
Evaporator air volume: 1100 m³/h
Max.Operating temperature : +40 °C
Protection class : IP54
Total weight : 63 kg
Width outdoor unit : 965 mm (incl. 220V connection (ex -76mm)
Height outdoor unit : 400 mm
Depth outdoor unit : 392 mm
Width inside evaporator : 662 mm
Height inside evaporator: 302mm high, extending into cargo space 263.5mm
Depth inside evaporator : depth from front/outside inwards 422mm (incl. transit)
Hole size for mounting: 663mm wide x 305mm high
Based on an insulation value for a cooling, K-factor cooling panels/casing 0.32 W/m² °C,
Arktik2500N Govi
Below descriptions, adjustments
and applications various article codes
It is forbidden to copy bottom texts
Govi Stationary Trailer Refrigeration Unit
Plug-in cooling unit / Monoblock cooling
Refrigerated trailer / Trailer Cooling system
Monoblock unit / Monoblock type 220V
The user-friendly refrigeration unit for rental.
The right unit for refrigerated trailers
Plug-in unit/Cooling unit/Trailer unit/Refrigeration installation
Govi Trailer/trailer Monoblock Space cooling without heating.
Trailer unit/Cooling unit/Refrigerating installation
The cool trailer for the best choice
For refrigerated trailer the best choice
Freezer trailer/BE trailer/Refrigerated trailer
Trailer/plug-in unit/trailer cooling
The right unit for cooling your products during Transport
Simple operation and pleasant to use
