Trailer Refrigeration Govi:
Important information about shipping Govi units.
We prefer that you pick up the unit yourself in Katwijk/Cuijk.
This is the most favorable price for you.
If our Govi units have to be shipped, this will be done on
a pallet. This is done on a larger pallet than standard so that
the unit falls within the pallet and therefore no
damage can occur to the unit during transport. That is why the shipping costs
are so high because the unit is not stackable and therefore takes up an entire
pallet space on an extra large pallet.
It is also possible to arrange your own shipment for the unit, this is done on the standard pallet. Keep in mind that you
are also liable if there is damage to the
unit arise during transportation.

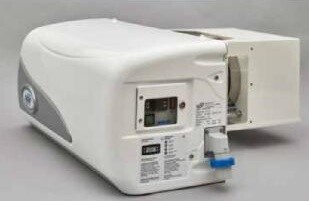

Type GV-20000P / GV2000P
Space cooling without heating.
Trailer / great room:
up 9 m³ at -20°C / 12 m³ at -18°C / 18m³ at 10°C
Temperature:
From -20 to + 10 ° C
Power supply:
230V / 50Hz
Current consumption:
6,5 (-20°c) / 7 (+2°c) / 7,5(+10°c) amp
Consumption LRA:
32 amp
Ondooiverwarming:
Elektice 1090 W
Cooling capacity:
1500 W at -20°C 2100W at +2°C 2800W at +10°C
Refrigerant:
R404a
Refrigerant Quantity:
1170 grams
Airflow evaporator
1100 m³ / h
Max.Bedrijfstemperatuur:
+40 ° C
Beveilegingsklase:
IP54
Total weight:
63 kg
Width outdoor unit:
880 mm (incl.220V connection 956mm)
Height outdoor unit:
400 mm
Depth outdoor unit:
392 mm
Width inside evaporator:
422 mm
Height inside evaporator:
302mm high anticipation in loading 263,5mm
Depth inside evaporator:
depth from front / outside inwards 576mm (incl.doorvoer)
Hole for mounting:
425mm wide x 305mm high
Govi unit Colour: Ral 9010
Starting with an insulation values at a cooling K factor cooling panels / conversion 0.32 W / m ° C,
Govi Stationary Trailer Refrigeration Unit
Arktik2000P Govi ??
Cool trailer unit GV-2000P
Descriptions below, adjustments
and uses various product codes
It is prohibited to copy bottom texts
Govi Stationary Trailer Refrigeration Unit
Plug-cooling unit / cooling Monobloc
Refrigerated Trailer / Trailer Cooling
Monobloc unit / Monoblock type 220V
The user-friendly refrigeration unit for rental.
The right unit for refrigerated trailers
Cool Trailer 2000P unit
