Govi Trailer cooling /
Trailer Refrigeration brand Govi
Important information about shipping Govi units.
We prefer that you pick up the unit yourself in Katwijk/Cuijk.
This is the most favorable price for you.
If our Govi units have to be shipped, this will be done on
a pallet. This is done on a larger pallet than standard so that
the unit falls within the pallet and therefore no
damage can occur to the unit during transport. That is why the shipping costs
are so high because the unit is not stackable and therefore takes up an entire
pallet space on an extra large pallet.
It is also possible to arrange your own shipment for the unit, this is done on the standard pallet. Keep in mind that you
are also liable if there is damage to the
unit arise during transportation.
Type GV-1600N/GV1600N
Space cooling without heating.
Trailer/Space size:
up to 10 m³ at +2°C / up to 16 m³ at +10°C
Temperature range:
From +2 to +10 °C
Power supply:
230V /50Hz
Power consumption: FLA
4.8 amps
Consumption LRA:
19.8 amps
Consumption 855W
Defrost heating:
Electric 340 W
Cooling capacity:
1600W at +2°C 2000W at +10°C
Refrigerant:
R134a
Refrigerant quantity:
450 grams
Evaporator air volume:
750 m³/h
Airflow Condenser:
750 grams
Max.Operating Temperature:
+45 °C
Security class:
IP54
Total weight:
55 kg
Width outside unit:
880 mm (incl. 220V connection 956 mm)
Height outdoor unit:
400mm
Depth outdoor unit:
392mm
Width inside evaporator:
422mm
Height inside evaporator:
302mm high, extending into cargo area 263.5mm
Depth inside evaporator:
depth from front/outside inwards 576mm (incl. grommet)
Hole size for mounting:
425mm wide x 305mm high
Govi unit Colour: Ral 9010
Based on an insulation value for a cooling, K-factor cooling panels/casing 0.2W/m2K

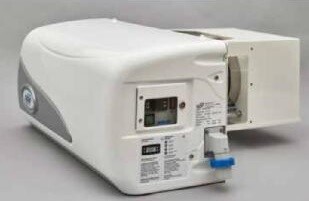

Govi Stationary Trailer Refrigeration Unit
Arktik1600N Govi
Cooltrailer unit GV-1600N
The data is based on a set temperature of 2°C
The cooling is based on the following environmental variables: outside temperature 30°C, R.H. 50%
Insulation with a k-value of is recommended.
Below descriptions, adjustments
and applications various article codes
It is forbidden to copy bottom texts
Govi Stationary Trailer Refrigeration Unit
Plug-in cooling unit / Monoblock cooling
Refrigerated trailer / Trailer Cooling system
Monoblock unit / Monoblock type 220V
The user-friendly refrigeration unit for rental.
The right unit for refrigerated trailers
Cooltrailer 1600N unit
Cooltrailer for sale separately the 1600N unit
This unit is also mounted on
a Proline refrigerated trailer
And is also used in the Rent world, for rental of
followers.
Importer Govi Netherlands/Inporteur of the Netherlands concerns Govi units
Govi in the Netherlands represented by HaTttink Thermo Parts.
the right unit for freezer trailer units too.
A good price for the right unit from Govi distributor in the Netherlands.
We sell to rental companies, self-installation companies
and also to end users.
The mentioned Proline unit 1600N
Also marketed as
Proline cooling unit 220V
Cooling units/For carcass cooling
a Professional cooling unit
a Monobloc unit for your cold store or cool trailer
plug-in unit cold room 220V easy to assemble yourself.
with three year warranty
Hanging cooling unit/ hanging cooling unit
type monoblock of the brand Govi
The unit for Rental/Sale/Rent worldwide
Type Artik 1600N/Artik1600N/ Artik-1600N
Type 1600N/Type Artik1600N/ Type Artik-1600N
Trailer refrigeration unit / refrigerated trailer unit 220 Volt
Type Artik 1600 N/Artik1600 N/ Artik-1600 N
The unit for Sale/Rental/Rent worldwide
cooling unit govi/ cooling unit govi
Importer Govi Netherlands/Inporteur of the Netherlands concerns Govi units
Govi in the Netherlands represented by Hattink Thermo Parts.
the right unit for freezer trailer units too.
A good price for the right unit from Govi distributor in the Netherlands.
We sell to rental companies, self-installation companies
and also to end users.
And is also used in the Rent world, for rental of
followers.
