Danfoss Thermostatic expansion valve TX2 R22
Body material Brass
Capillary tube length [in] 59 in
Capillary tube length [mm] 1500 mm
Connection material Brass
Direction Angleway
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 2
Inlet connection type FLARE
Inlet size [in] 3/8 in
Max. Working Pressure [bar] 34 bar
Max. Working Pressure [psig] 500 psig
MOP Point [psig] MOP 20
MOP Point [°C] -20 °C
MOP Point [°F] -5 °F
Outlet connection type FLARE
Outlet size [in] 1/2 in

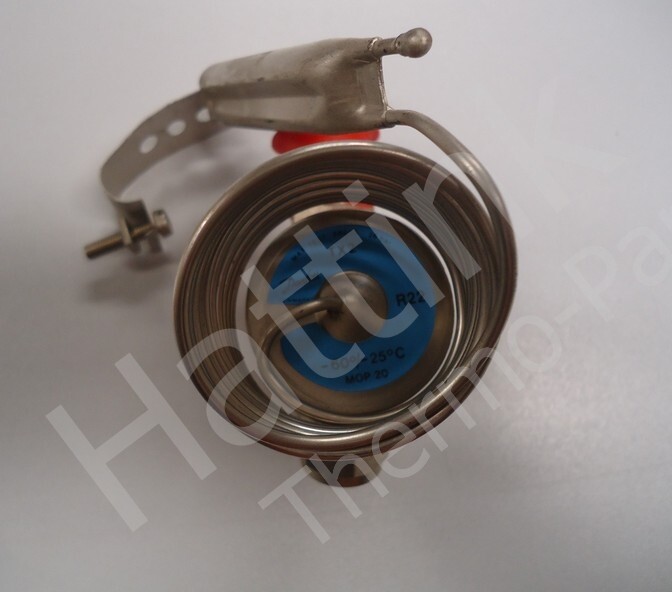

Description on Article:
Danfoss
TX2
R22
-60/ -25C
MOP 20

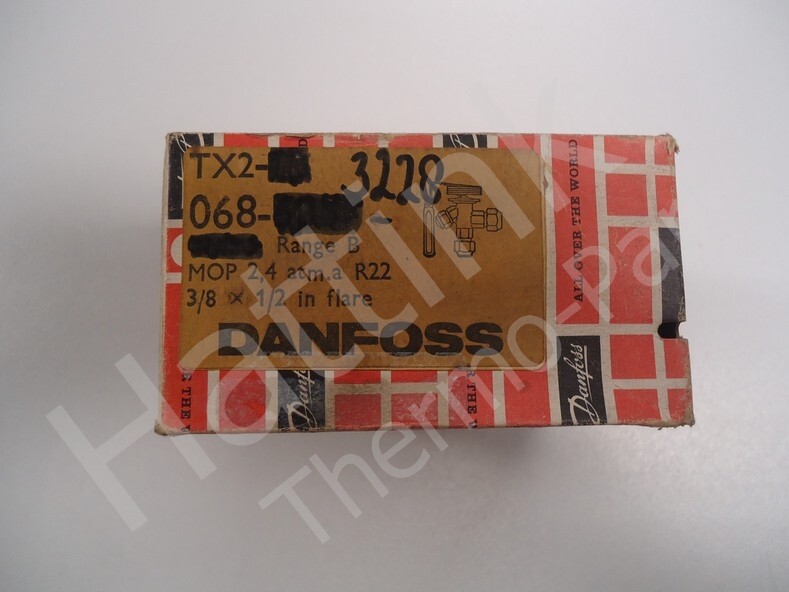

Description on packaging:
Applications and Examples or
Names and product codes:
