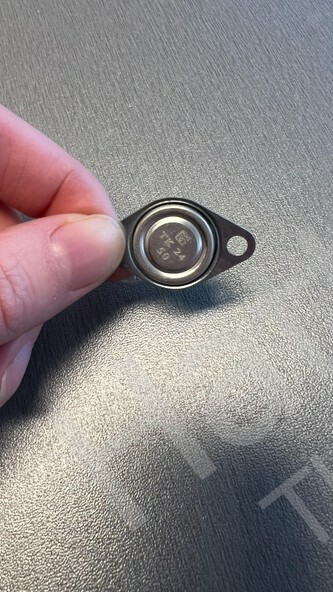

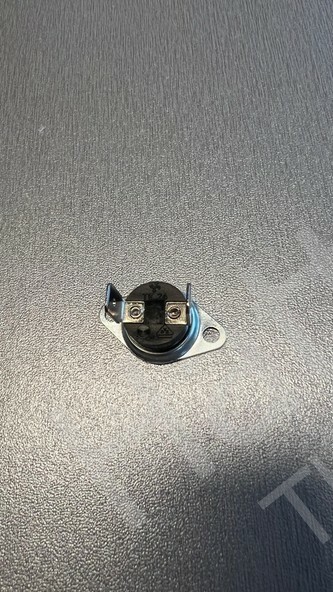

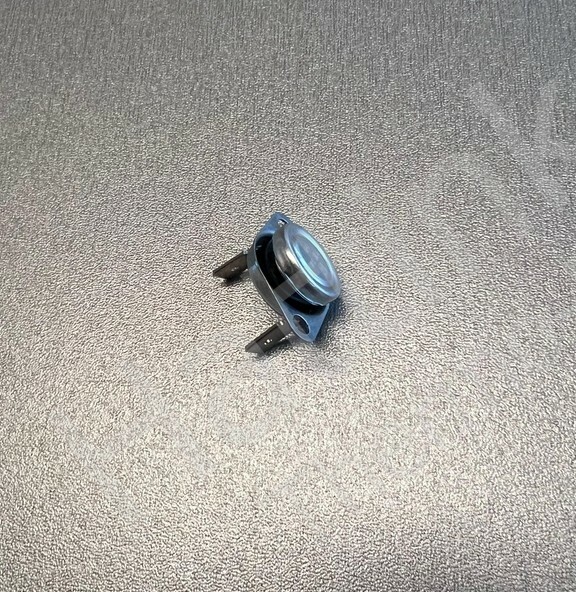

Klixson/Bimetal switch
Temperature switches TK24 50
Bimetal switch 250 V 16 A
Opening temperature (± 5 °C) 50 °C
Closing temperature 40 °C
Technical specifications:
Show articles with the same values
Opening temp. (± 5 °C) : 50 °C
Closing temp. (°C): 40 °C
Switching voltage: 250 V
Switching current (max.): 16 A
Connection: Cable lug 6.3 mm
Diameter: 17.6 mm
Height: 19.05 mm
Length 30.36 mm
Hole size HxH 24.56 mm
Hole size: 3.8 mm
Electrical lifespan: 100,000 switching operations) at 16 A
Contents: 1 piece(s)
Dimensions: (Ø x h) 30.36 mm x 18.44 mm
Type: TK24 50
Type name: Bimetal switch
Temperature Switch Type TK24-50-S40 50C open/ 40C closed
