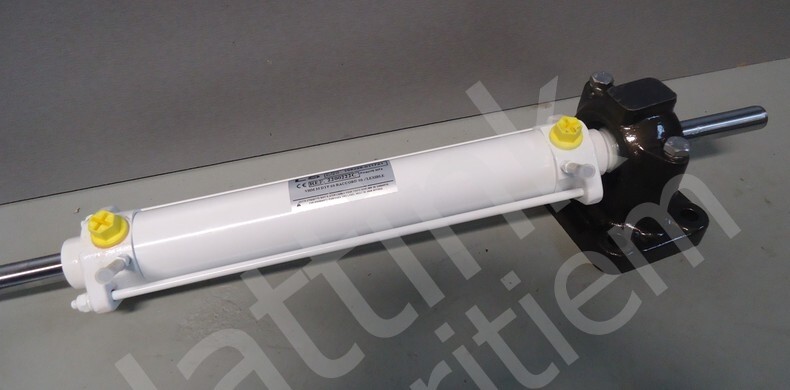

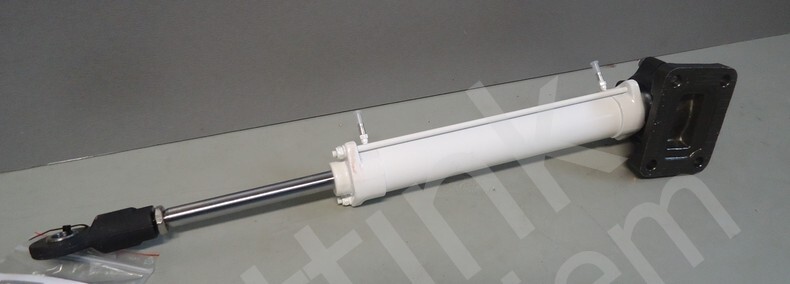

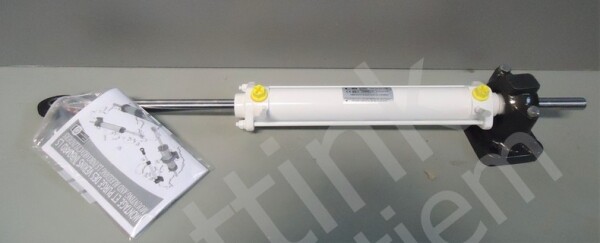

Steering Cylinder for rudder/rudder blade
S.A.S LECOMBLE & SCHMITT
Connections BSP (B.S.P.): 1/4"
Art.code: 1690
Force (kgf): 465
Force (kgm): 75
pipe dia. (mm): 8 x 13.3
Brand: Lecomble & Schmitt
Product content (cc) 150
Stroke length (mm): 200
Check valve: no

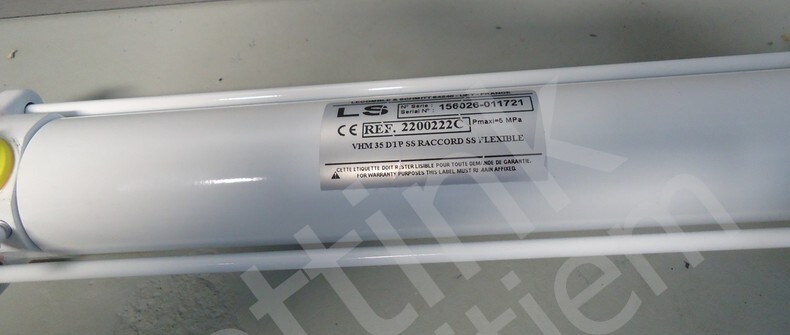

Description on Article:
Lecomble and Schmitt
LS 156026-011721
REF 2200222C
PMaxi 5 Mpa
VHM 35 DTP SS Raccord SS Flexible
Description on packaging:
LS
1690
LS Cilinder LC451 35DTP 75 KGM
Cyleinder LC451 35DTP 75 KGM 150cc
156026-011721
2200222C/156026-011721
VHM 35DTP SS Raccordi SS Flexible
1690
Applications and Examples or
Names and product codes:
