Description:
Spal Blower
Ø255 mm VA53-BP70/LL-39A
Proof tension 26V
Electric consumption (A) 6 A
Air flow (m3/h) 1840 m³/h
Voltage 24V
Type Fan Suction
Diameter Ø 255 mm
Duct Diameter 278 mm
Thickness 95.4 mm
Weight 2165 gr
Frabrikant code VA53-BP70/LL-39A
Waterproof IP68
Fan/Blower

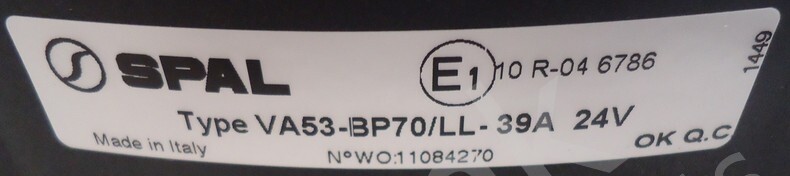

Description on Article:
Logo Spal
E1 10 R-04 6786
Type VA53-BP70/LL-39A 24V
Made in Italy
2165 gram
Technical specifications:
AC-3010.2578.pdf
Spal type comparison:
Spal Type VA53.pdf
Examples and applications or
Names and TKunit codes:
AC-3010.2578/AC-30102578
AC3010.2578/AC30102578
AC 3010.2578/AC 30102578
VA53BP70/LL39A/VA53BP70LL39A
VA53BP70/LL-39A/VA53-BP70/LL39A
VA53BP70LL39A/VA53-BP70/LL-39A 24V
Spal fan
