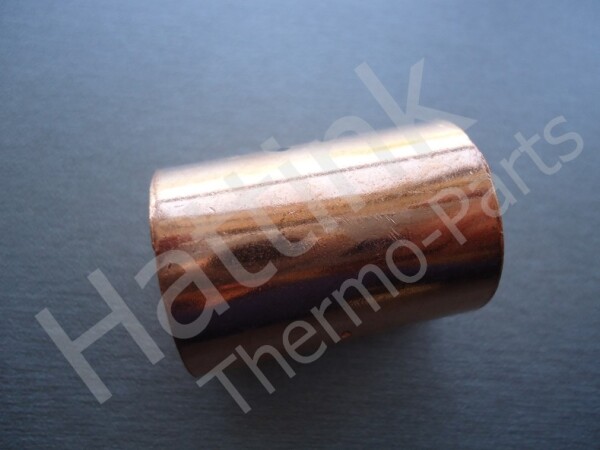

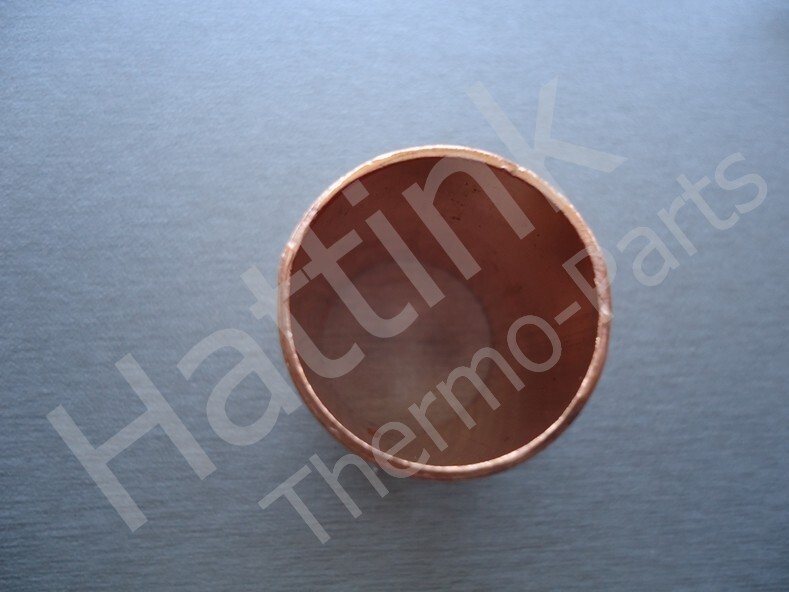

Soldering sleeve / Braze sock
Connecting piece for copper pipe
22mm outer size.
Soldering with tin (Water connection)
or SIF / Brazing hards soldeer (for high pressures)
Specification:
Sizes:
22x33x1,05 (loss size in length ± -1.5)
Operating Pressure: 130 Bar
Netto 20 gram
Solder info:
By brazing with a silver content (Ag) of min. 5%
according to ISO 17672 and a flux FH 10 according to DIN EN 1045,
fittings and associated piping can be connected
be.
This high pressure solder we offer,
as specialized koeltechnis wholesale refrigeration,
optimal, safe and at the same time the most advantageous
plant technology to, wherein the material used
meets the highest quality standards.
Hieronder omschrijvingen, aanpassingen
en toepassingen diverse artikelcodes
Het is verboden onderste teksten te kopiëren
Sleeve 22mm, on both sides soldering cup 22mm
Code 527022
Note: SANHA GmbH & Co. KG
