Automatic fuse 16Amp 230V (3680 Watt)
Description

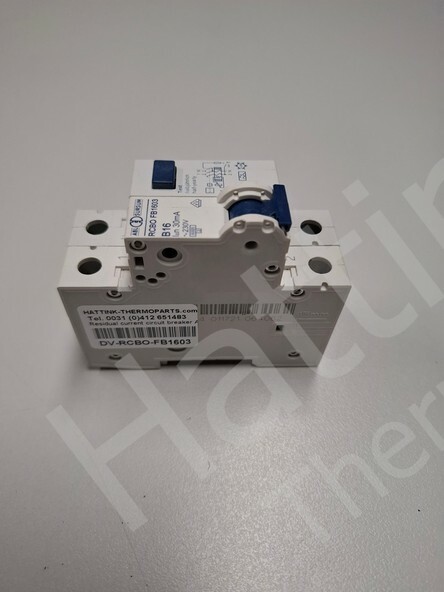

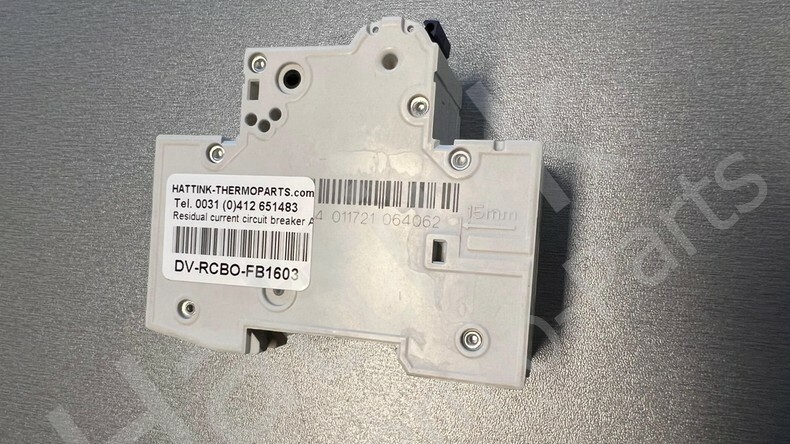

ABL Sursum AARDLAUTOM rcbo fb1603 30mA
Brand:ABL Sursum
Supplier article code: ABL Sursum
EAN number:8012542066217
Customs number:85363010
HGS code:180186
Minimum purchase:1
Product description
residual current circuit breaker
tripping characteristic C
type leakage current A
co-switching neutral,
nom. (measuring) current 16A, nom.
fault current 0.03A,
delayed tripping characteristic,
width in module units 2,
with locking device,
with test button
2 poles (total),
The C characteristic can handle a short-term peak current
of 5 to 10 times the nominal value.
If you do not want this, take a
A B characteristic is the standard tripping characteristic for homes,
these can have a relatively low switch-on peak.
This characteristic can handle a short-term peak current of 3 to 5 times the nominal value.
For use on a boat, yacht, ship, home, business premises, camping
to protect the power consumption by max 16amp (3680 Watt)
and leakage to earth of 30 mA to switch off the installation.
