Universal expansion tank
Product information
Universal pressure vessel that saves water and electricity and
can be combined with all self-priming pumps.
28% less power consumption thanks to the Fiamma A20 pressure vessel.
through a better start-up.
Constant water flow
The A20 pressure vessel is an ideal addition to the Fiamma Aqua 8
its previous models and other self-priming water pumps
such as the Jabsco, Shurflo, Flojet.
The new pressure vessel eliminates the knocking or stuttering effect of pressure pumps and supplies a constant flow of water.
The A-20 pressure vessel extends pump life and reduces water use.
The internal membrane absorbs impacts and allows a steady flow of water to pass through, ensuring
almost no sound.
The A-20 can be disassembled for any internal repairs.
The pressure of the A20 pressure vessel is preset to
0.9 bar (13 psi) Std. busy, but can be adjusted very easily
with a compressor on the valve. The A20 can therefore be made suitable for all self-priming pumps that are available
are in circulation under different brands
Specifications: Pressure vessel A20
Brand/Manufacturer: Fiamma
Pressure in bar: 0.9 bar
Type of Pressure Vessel:
Description on Article:
Fiamma
A20

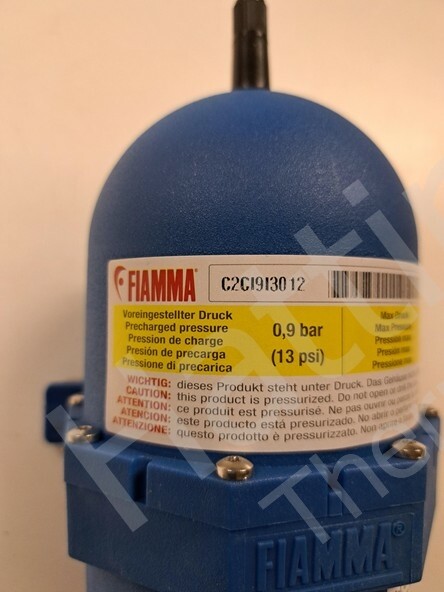

Precharge Pressure 0,9 bar/ 13 psi

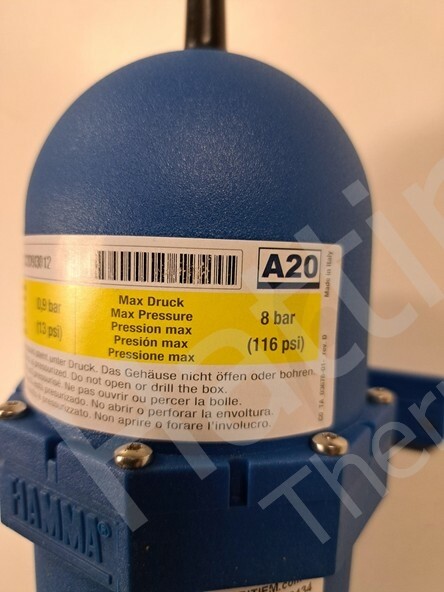

Max Pressure 8 bar/116 psi

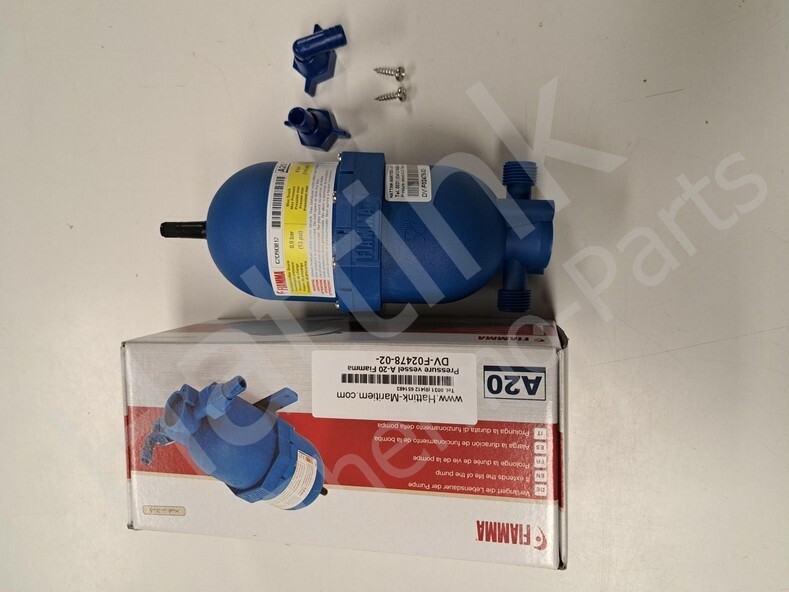

Description on packaging:
Fiamma
02478-01-
Universal expansion tank
A20
Made in Italy
Breedte in mm : 154 mm
Lengte in mm :234 mm
Diameter in mm:ø 98 mm
Applications and Examples or
Names and product codes:
