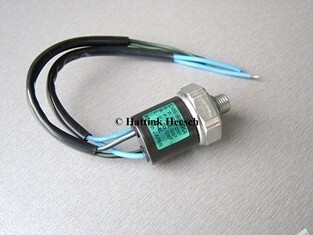

Press Security Shake Laar:
Trinair male connector R134a
For refrigerant R134a
high pressure / low pressure / intermediate pressure switch
L.P. 2 bar open
M.D. 15 bar closed.
H. D. 27 bar open
Connection M10x1
OE nr.825505
Description Article:
LMH-958-69A
H / P 27 kg / cm²
M / P 15 kg / cm²
L / P 2 kg / cm²
5-L
Made in Japan
Descriptions below, adjustments
and uses various product codes
It is prohibited to copy bottom texts
High pressure beveileging for conditioning system
If these high-pressure, discharge side of the
air conditioning pump, the compressor barrel off reaches a pressure of 27 bar
possibly in the medium pressure scaling know. the cooling fan at
for the additional cooling of the condenser.
At too low pressure on the suction side of the air conditioning pump
under 2 bar will also turn off the air conditioning pump
beveilegen to the system.
AC-248050084/AC248050084/AC.248050084/AC 248050084
