Separator Oil
Description:

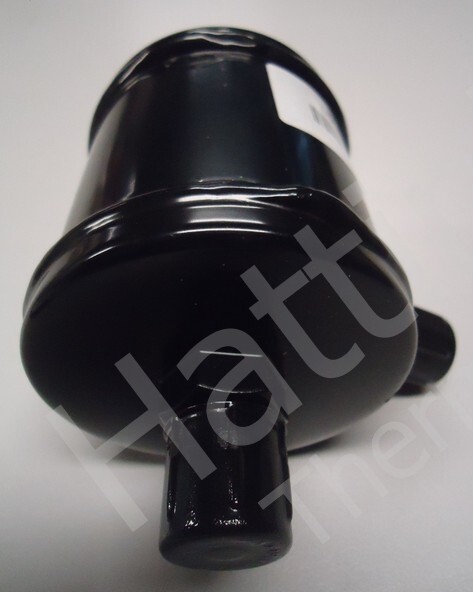

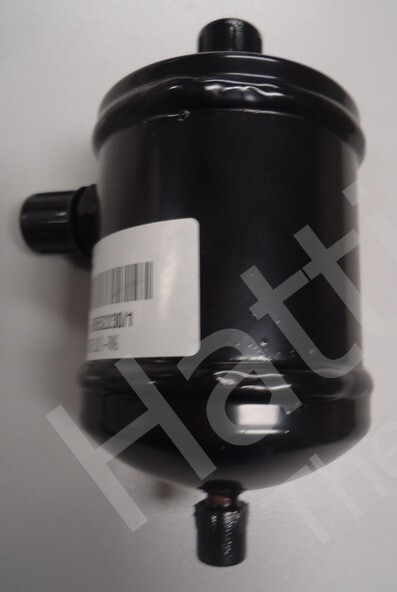

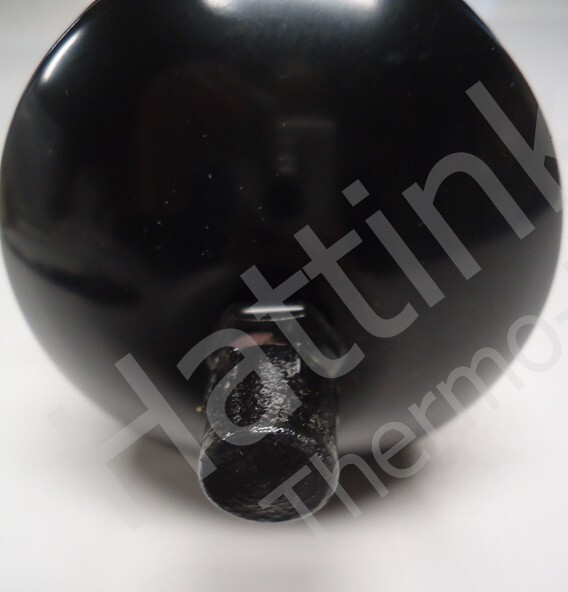

Oil Separator
Inlet 3/4"16UNF O.R.
Outlet 3/4"16UNF O.R.
Height (h) 140 mm
Diameter Ø 77 mm
A1/4" SAE
Inlet thread 3/4" 16UNF - 2A O.R.
Outlet thread 3/4" 16UNF - 2A O.R.

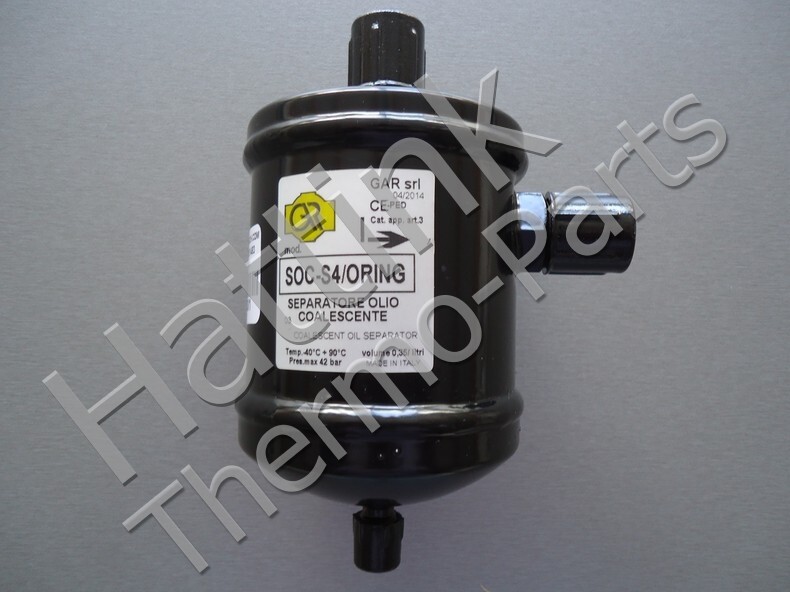

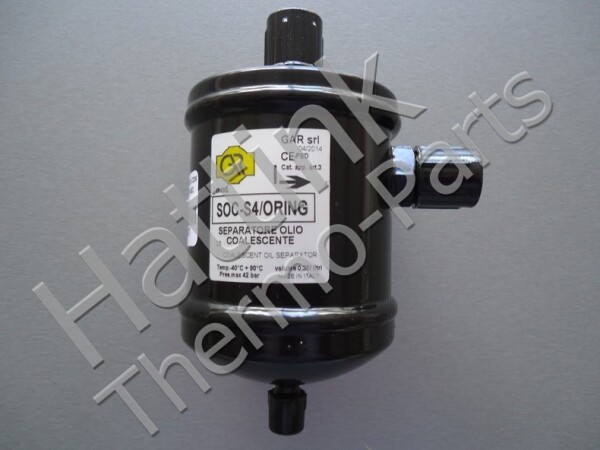

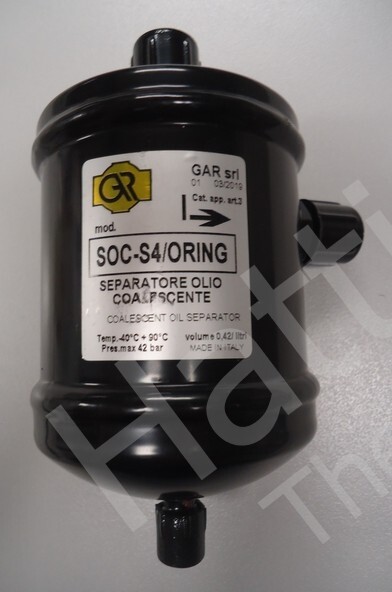

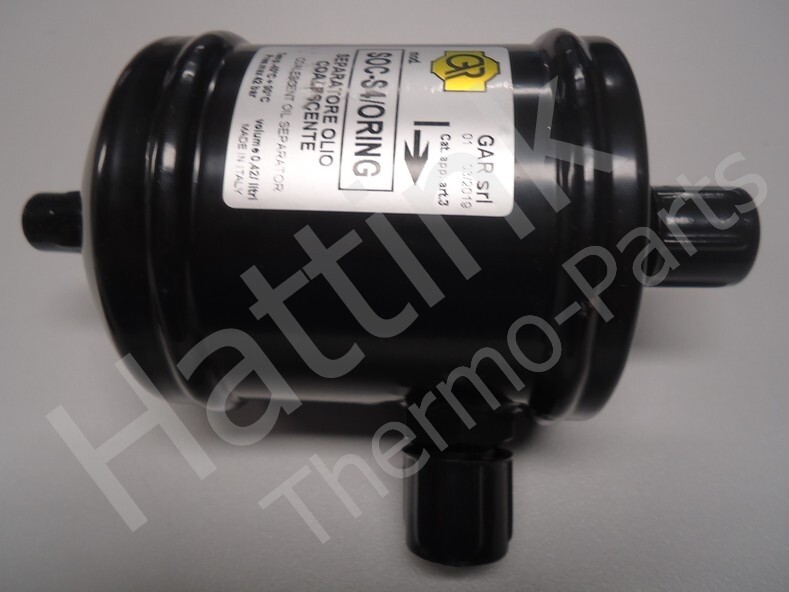

Description on Article:
GAR srl.
CE-Ped cat.app art 3
Mod.SOC-S4/O-RING
Separatore Olio Coalescente
Coalescente Separatore Olio
Capaciteit 0,36 lt
Filter exit Male x Male
(Werk Druk 30 bars)
OE 240510045
SOC- S4/ O-ring
Temp. -40°C + 90°C
Volume 0,36 / litr
Max druk 42 bar
Made in Italy
Netto 743 gram
Konvekta
H14-002-07
H14-002-079
OE 240510045
Examples and applications or
Names and product codes:
Examples and applications or
Names and product codes:
This article is mounted in
the discharge line to the oil
to obtain the compressed gas and back
be traced back to the compressor.
Note that in compressor damage where many
contaminated oil is caused must
This filter / oil separator for safety consideration
always be changed, here is a filter
what is closing down. this will
compressor insufficient oil return get
Afscheider olie
Olie Seperator/Seperator Olie
Olie Seperator

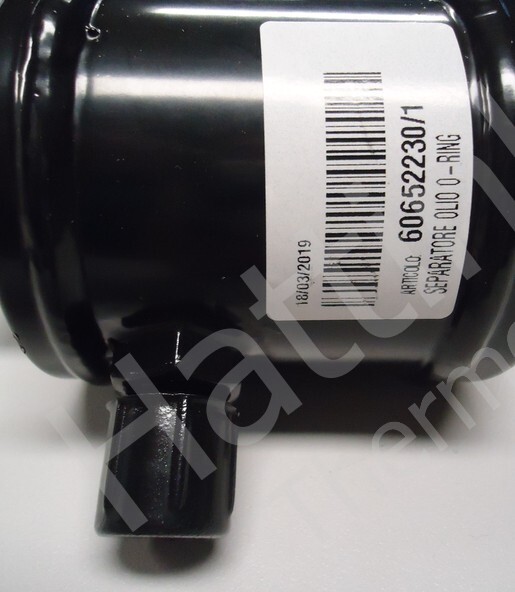

60652230/1
Separatore Olio O-ring
Oil Separator (Eberspächer)
