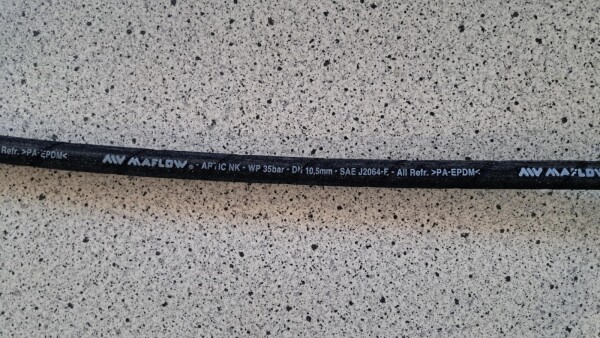

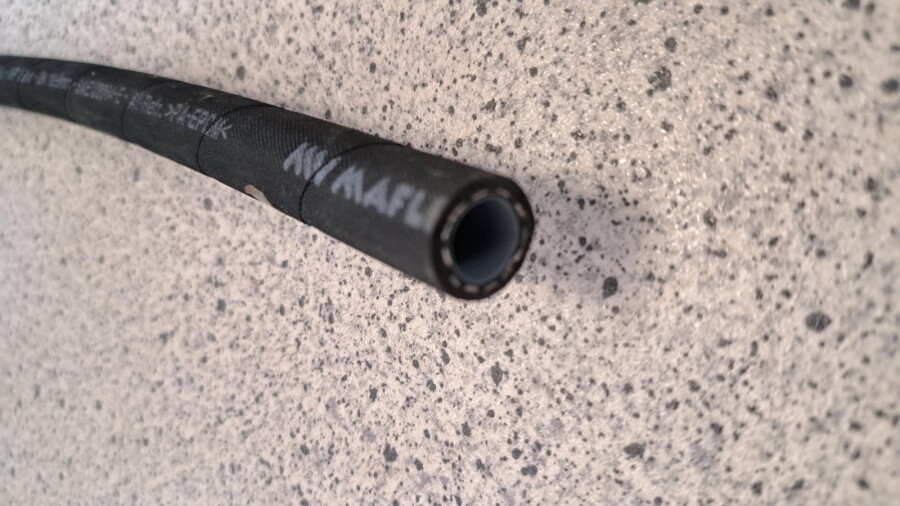

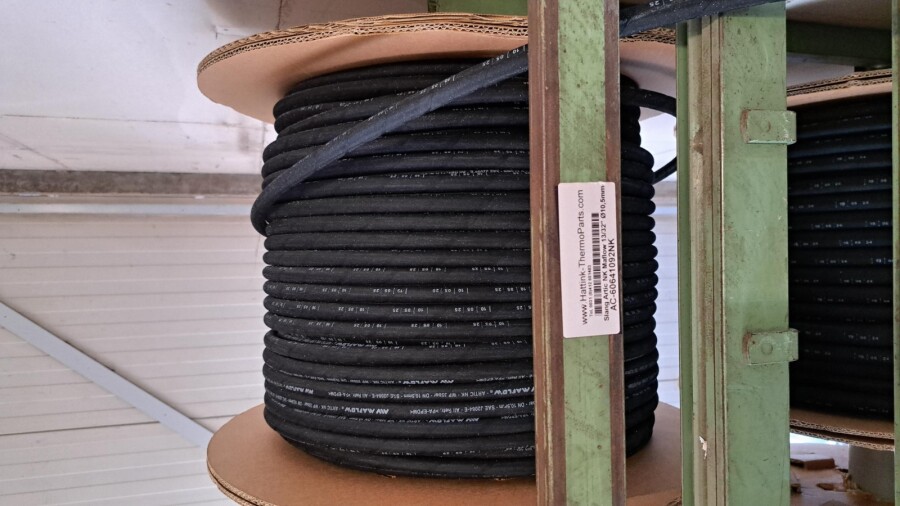

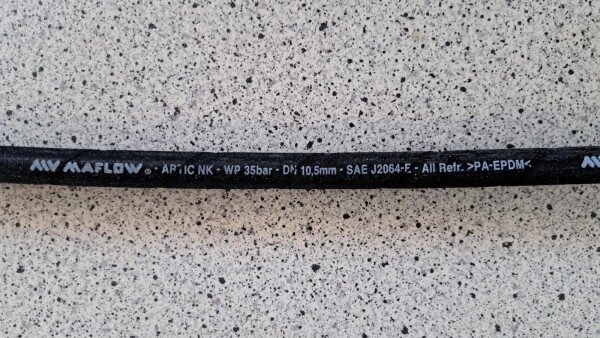

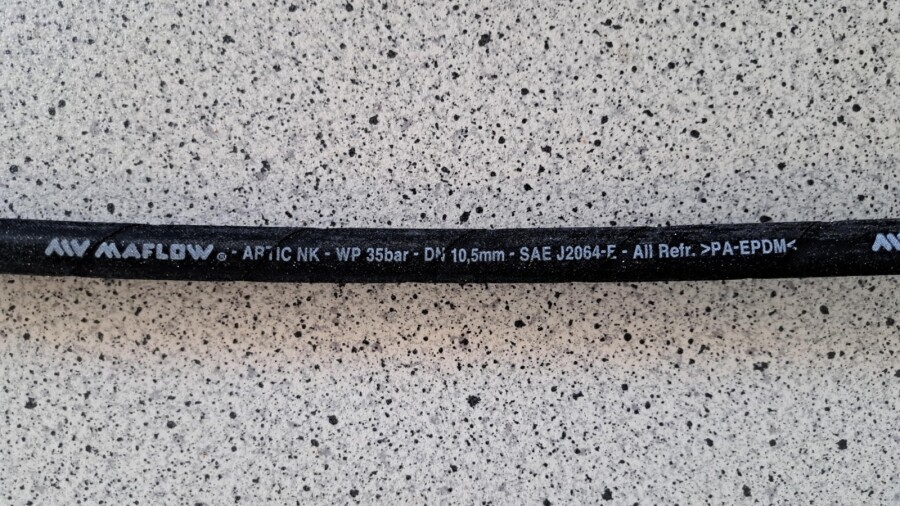

Airco hose / air conduit / cooling hose
Brand refrigerant hose:
Refrimaster or Artic NK
Description type: G8
Size (mm) 10.5 - 16
Hose size 13/32 "
Hose ref. G8
Weight (KG. Abt.) 0.140 kg / m
Price per meter.
Manuli Refri Master or
Artic NK
SAEJ2064 TYPE/E
CLASSI PA-EPDM
WP 35 Bar
OE 8881700113
8881700128
H09071010
CONTINUOUS SERVICE TEMPERATURE
RANGE
-40 ° F / 257 ° F
-40 ° C / 125 ° C
MAXIMUM OPERATING TEMPERATURE
140 ° C, 284 ° F
SNAKE
Resistant to high temperatures thermoplastic (PA)
veneer
REINFORCEMENT
One textile braid
APPLICABLE SPECIFICATIONS
SAE J2064 Type E Class I
R134 - R404 - R410
