Refrigeration Hose
Hose Refrimaster of Artic AW Maflow
Description G10
Dimensions (mm) 13,0 - 18,1
Hose Size 1/2"
Hose ref. G10
Weight (KG. abt.) 0,160 kg/m
Per meter
Description on Article:
Artic NK AW Maflow
WP 35 Bar-DN13,0mm
SAEJ2064-E All Ref. >PA-EPDM<
- Low Permeability to Refrigerant Fluids;;
- Compatibility with a wide range of refrigerants such as R134a, R1234yf, R404a;
- Compact Dimensions; Low Weight;
- High Flexibility;

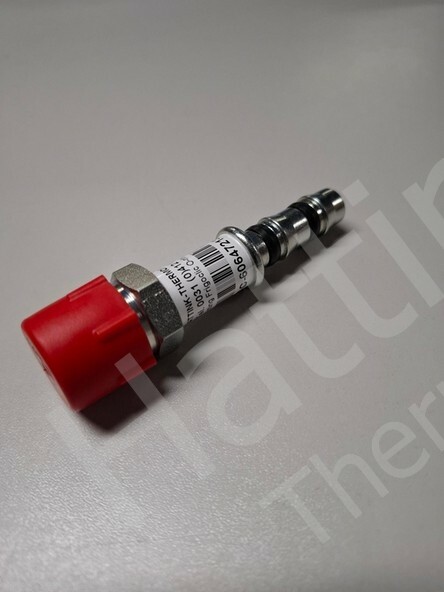

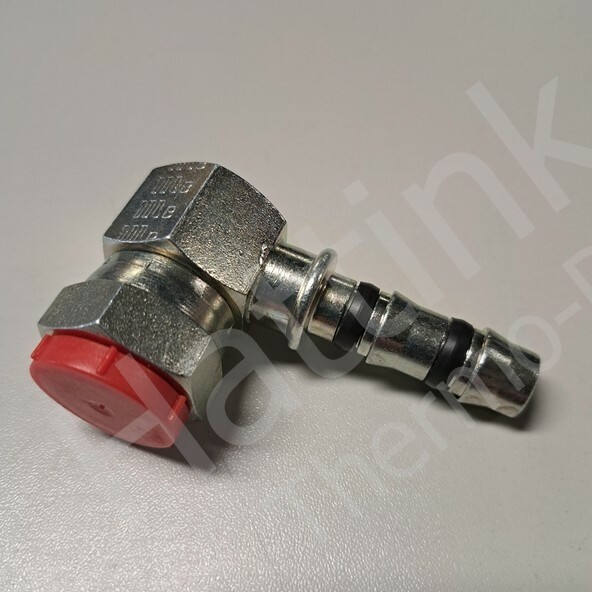

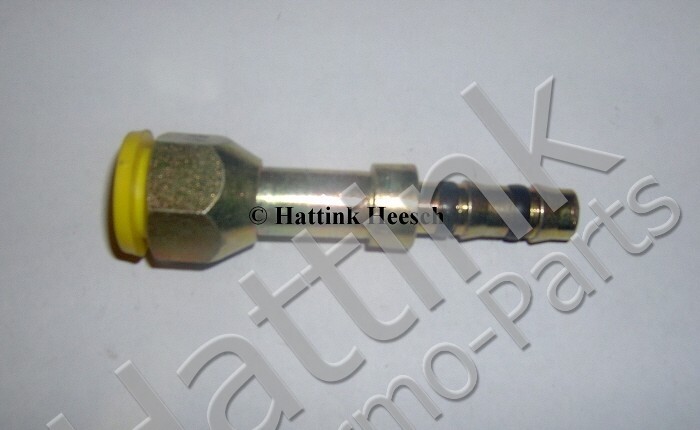

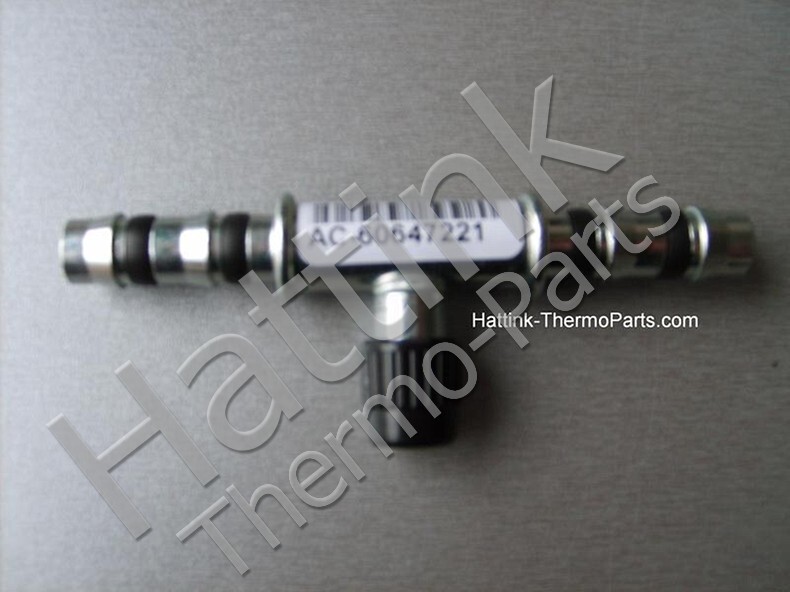

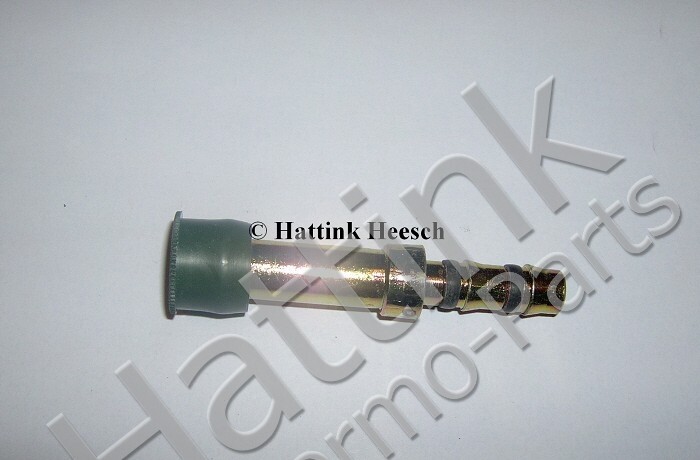

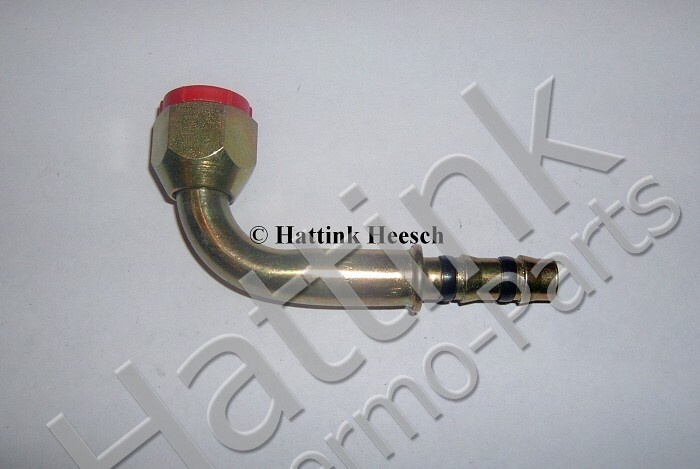

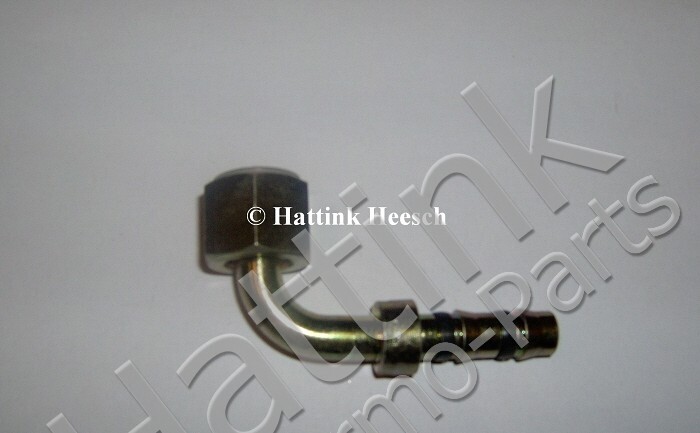

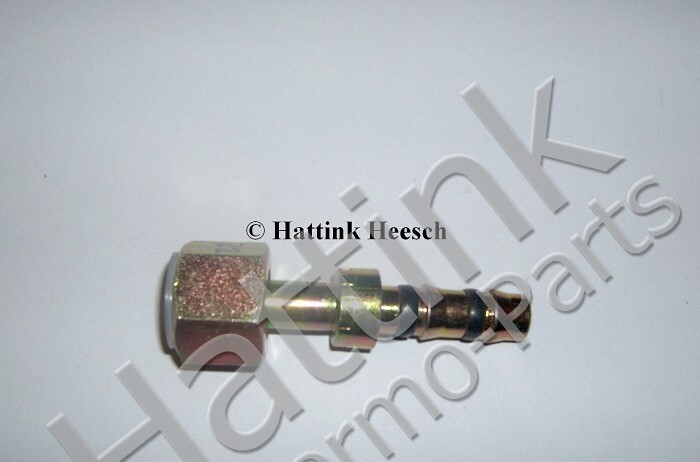

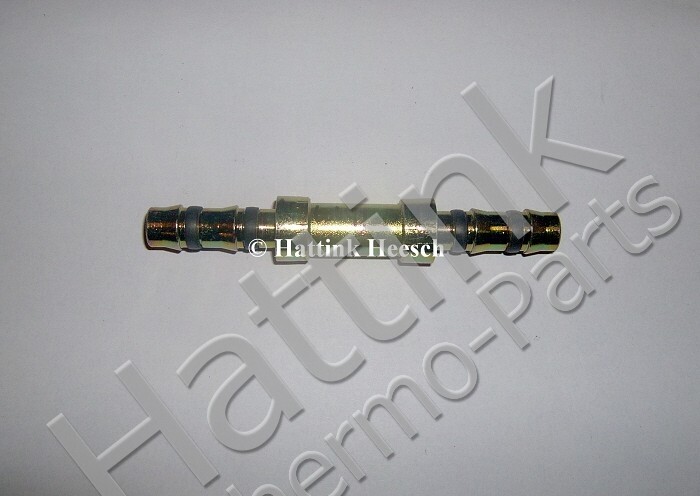

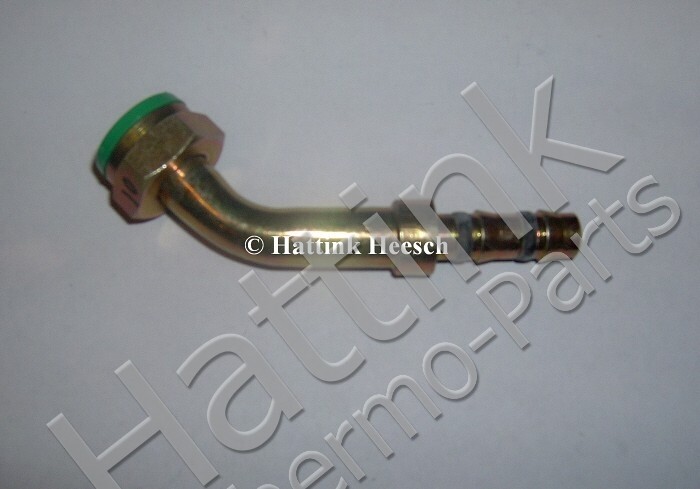

- Low Noise Transmission DN8x12.7, 10.5x16, 12,7x18.1, 16x21,7 are couplable
with reusable FRIGOCLIC® fitting also.

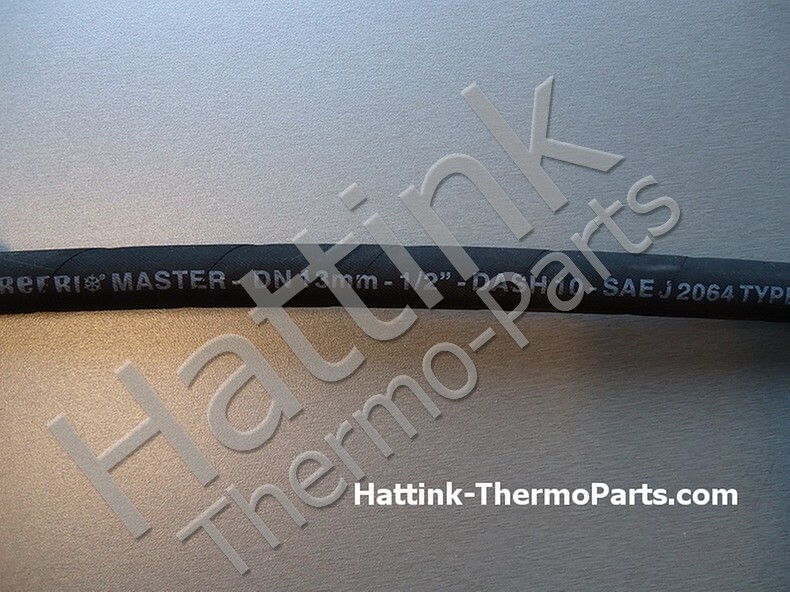

Manuli Refri Master
DN 13MM 1/2"
DASH 10- SAEJ2064 TYPE/E
CLASSI PA-EPDM
OE 8881700114
H09071010
CONTINUOUS SERVICE TEMPERATURE
RANGE
-40 ° F / 257 ° F
-40 ° C / 125 ° C
MAXIMUM OPERATING TEMPERATURE
140 ° C, 284 ° F
SNAKE
Resistant to high temperatures thermoplastic (PA)
veneer
REINFORCEMENT
One textile braid
APPLICABLE SPECIFICATIONS
SAE J2064 Type E Class I
