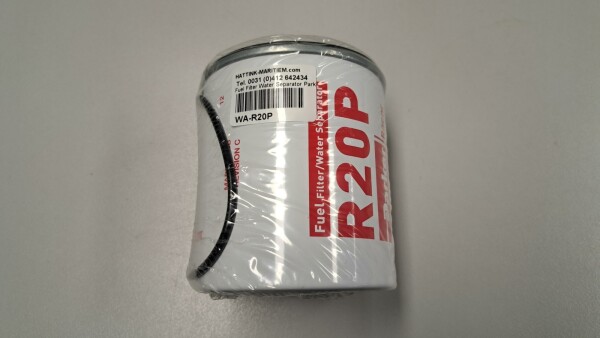

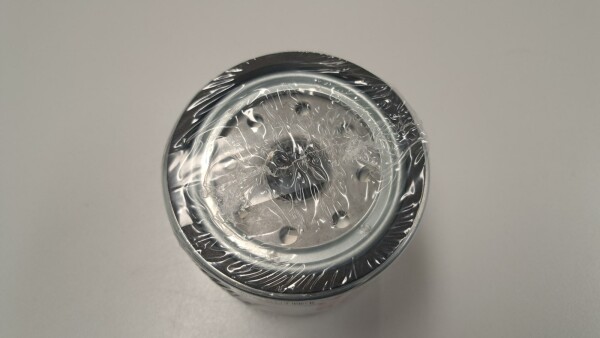

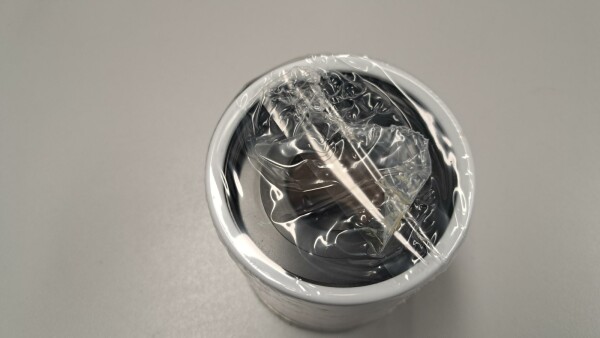

Fuel Filter Parker Type R20P
Fuel Filter Racor 30 Micron Fuel Filter
Specification:
Made in: North America and EMEA regions
Filter Element Type:30 Micron Aquabloc® Spin-on
Product Range:Diesel Spinon FF/WS
Brand:Racor
Thread Size:1"-14
Micron Value:30 micron μm
Connection Type:3.125" Female Bottom Threads
Meets Specifications:No
Outside Diameter:3.8" (97 mm)
Flow Direction:Inside Out
Height:4.0" (102 mm)
Associated Parts:Clear Bowl: RK 22350-02
or closed bowl
Product Range:230R
Colour: Off-white with red print
Item Information:
Spin-on replacement cartridge filter elements are compatible with
Racor’s range of Spin-on water separator fuel filter systems.
The elements demonstrate exceptional efficiency in the removal of both bulk and emulsified water,
low fuel flow restriction and high dirt holding capacity. Their unique design allows them to perform well in modern diesel and petrol engine applications,
where high pressure conditions can cause small
particles of dirt and water to score and wear out precision parts, resulting in engine damage and increased downtime.
The filter housing is protected with a durable,
electrostatically applied coating for superior rust protection.
The spin-on filter design is easy to repair and features a
reusable, clear plastic or metal contaminant collection bowl with a self-venting drain to drain collected
contaminants and water.
All spin-on replacement cartridge filter elements utilize
Racor’s highly efficient Aquabloc® media. Aquabloc® is a
blend of high-quality cellulose, formulated with resins and a
special chemical treatment. It features pleat spacing
and an improved pore structure that increases dirt holding capacity
and extends filter life.
The media is watertight and rustproof and traps contaminants while the specially treated surface separates and coalesces water from the
fuel, turning it into large droplets that then fall into the fuel filter collection bowl.
Aquabloc® elements repel water and remove solid contaminants from fuel at an efficiency of
98% of their micron rating. To meet the unique requirements of customers’ engines, three different
micron filter grades are available, including:
30 Micron (98% at 30 Micron):
Ideal as a pre-filter to protect downstream filters from excessive contamination. Extends the life of engine filters.
10 Micron (98% at 10 micron): Captures more contaminants
than 30 micron elements and more effectively blocks water
Extends the life of the entire fuel system.
2 Micron (98% at 4 micron): Provides maximum water removal and filtration and
has the ability to protect all modern injection systems.
Also dramatically increases the life of hard-to-repair engine filters.
Here’s how it works:
Racor’s spin-on filters use Aquabloc® media to reliably remove dirt and water
from diesel and gasoline. The Aquabloc® media is pleated,
corrugated and designed to provide high water repellency and long life.
Fuel entering the filter head is directed down the
vertical media pleats, causing larger water droplets and contaminant particles to fall
directly into the collection tank. Smaller water droplets converge
and coalesce on the specially treated media surface until they are large enough
to also fall into the collection tank. Small contaminants are
retained on the surface of the Aquabloc® media,
while even smaller particles are retained deeper in the layers.
Instructions for Use:
Replacement fuel filter element parts are
specifically designed for a specific series unit and a specific fuel type.
Although replacement parts from different series may look similar on the outside,
the internal structures may vary.
Therefore, do not attempt to use a replacement part from one series on another series type.
A clear reservoir is an inspection item for fuel systems:
Inspect frequently for damage, deformation, and discoloration and and replace as necessary.
Benefits:
A. Provides exceptional removal of water entering the system
from condensation in the fuel tank. • Water present in the
fuel stream supports bacterial growth which can clog filters,
which can result in the formation of corrosive acids.
Susceptible components rust and corrode, causing erosion and wear
of critical fuel system components.
B. Removes airborne hard particles such as sand and silica that are carried
through fueling.
C. Prevents costly injector damage and extends the life of downstream
filters.
D. Saves time and money by eliminating unscheduled maintenance and downtime by eliminating
system component failure.
E. Highly efficient Aquabloc® media ensures that original diesel engines
meet stringent government emission standards.
Replaceable with or
the following:
036530R1 DEUTZ
4723905 MOPAR
13038480 CLAAS
301465 ASAP
F1036 CPS
FS19996 FLEETGUARD
R20P RACOR
SFR5657FW SURE FILTER
SN902030 HIFI
Transparent bowl: not included, you must replace it or order it.
WA-RK 22350-02
Closed bowl with sensor also not included, you must replace it or order it
Product ID: 85244/WA-85244
