DC Fan
Jamicon Fan 24Volt
Outside Diameter 120mm x 120mm x 38mm
Thickness 38mm
Air displacement 135m3/h
Power Consumption: 0.37A
Input 8.8 watts
2 speeds
Voltage 24V DC
Min/Max Voltage 20.4- 27.6 Volt
Rotary DC Fan Brushless
Speed 3200RPM
Dual Ball Bearing
Kaimei Electronic Corp.
Frame : Plastic Material UL 94V-0
Impeller: Plastic Material UL 94V-0
Speed Range: ±10%
Noise 47.9 dBa
Made in China
Net 273 Grams
Your supplier for DC fans in the Netherlands
Of course also for DC Automotive
Old item no.
AC-30315255 AC-30315255
Description on Article:

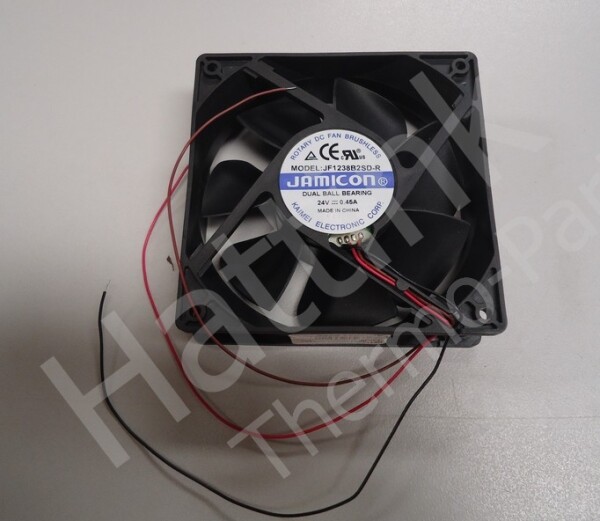

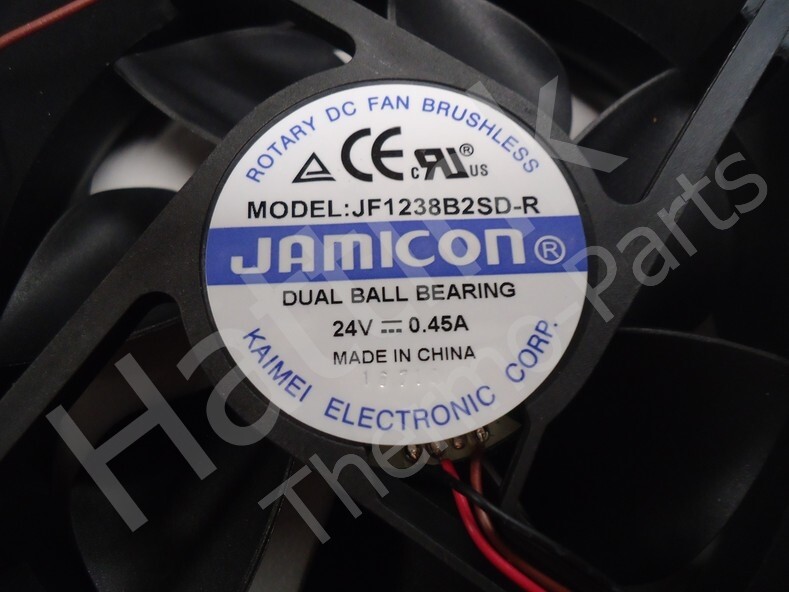

Rotary DC Fan Brushless
Jamicon
Model JF1238B2SD-R
Dual Ball Bearing
24V 0,45A
Made in China
Kaimei Electronic Corp
Below descriptions, adjustments
and applications various article codes
It is forbidden to copy lower texts
Examples and applications of
Names:
We will prosecute you for this
This is hereby indicated as information and as a warning
Fans from Jamicon for control cabinets
Axial fan / fans axial for electrical systems
Cooling fans for cooling small spaces
Fans 24Volt for computer systems
Extra cooling fan/blower of the type Jamicon Brand Kamei
Spal Ventilators for livestock transport, live animal transport
Or in an air system for Circulation
Fans type Jamicon Brand Kamei
OE:
AC-30315255 / AC-30315255
AC30315255/ AC30315255
AC JF1238B2SD-R/ AC JF1238B2SD-R
AC-JF1238B2SDR/ACJF1238B2SD-R
AC-JF1238B2SD R/ACJF1238B2SD-R
AC JF1238B2SD-R/AC JF1238B2SDR
jamicon jf1238b2sd-r AC jamicon jf1238b2sd-r
ELETTROVENTOLA DM.QUADRO
