Description :

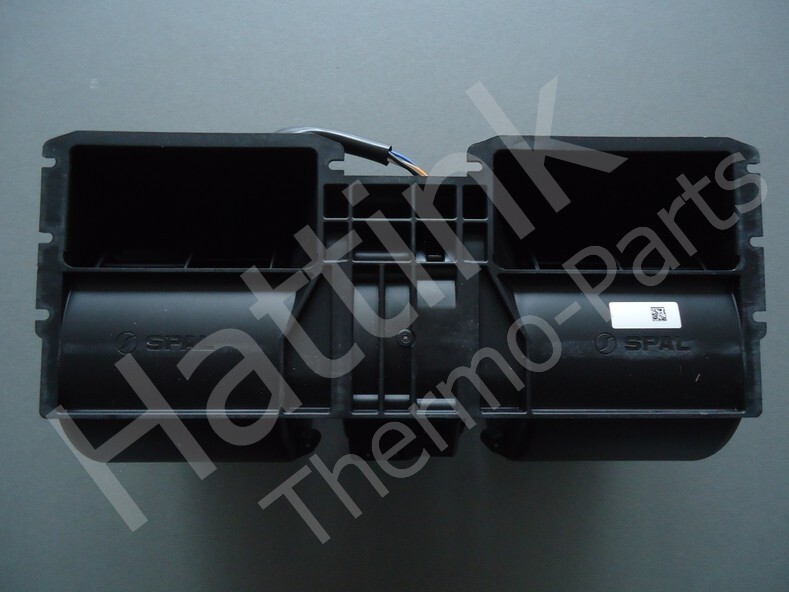

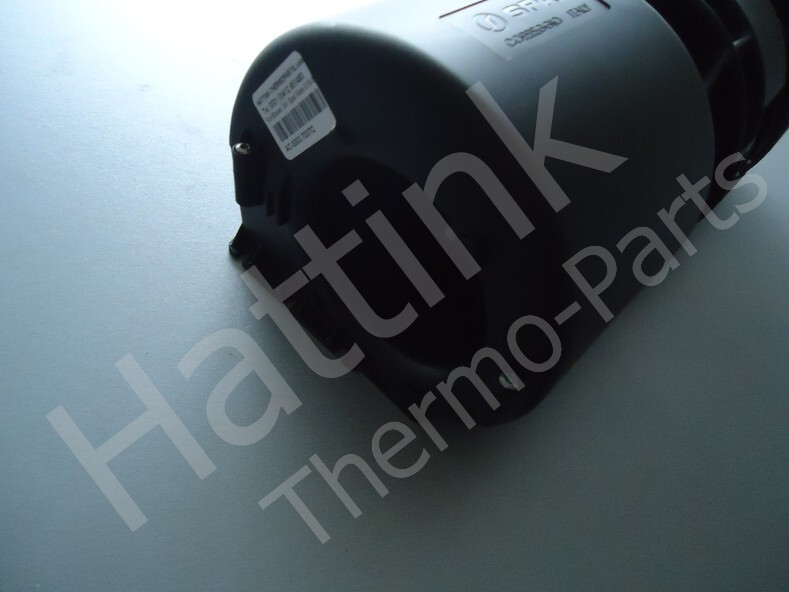

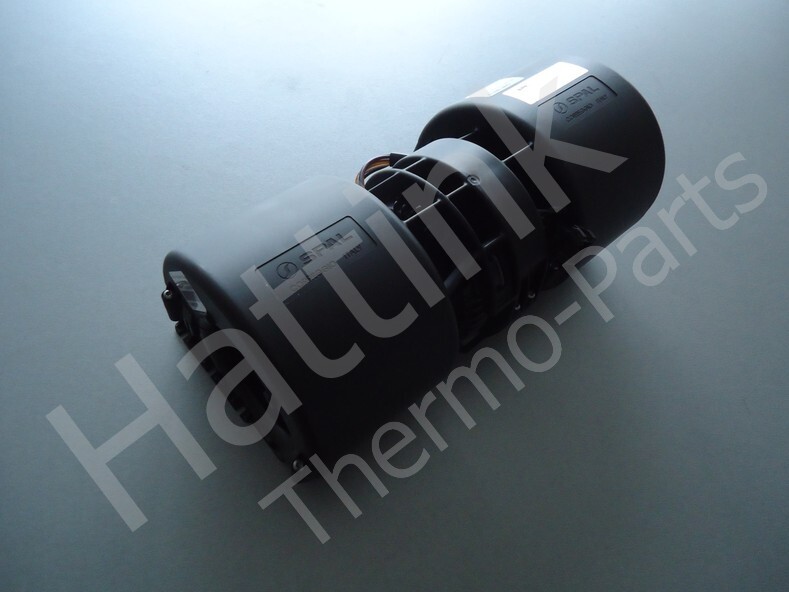

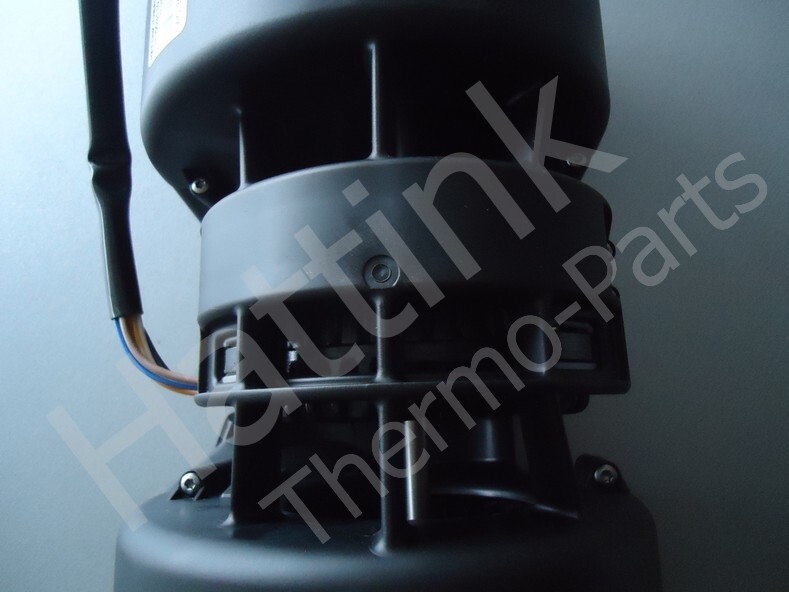

Spal Blower 019-BBL377P/R/N-95
Proof tension: 26V
Electric consumption (A): 26 A
Air flow (m3/h): 1160 m³/h
Voltage: 24V
Type Blower: Dubbel wheel
Base length 355 mm
Spal productor Code: 3000.7007C
PWM and analog input for continuous adjustment of fan speed
EMC directives: 2006/28/EC
RoHS compliant: totally lead-free electronic
assembly process
Nominal power 300W and 500W
Operating temperature range: -40 ÷ +120 °C
Protection:
-Overtemperature
-Overcurrent
-Mechanical overload
-Locked rotor
-Load dump
-Overvoltage
-Undervoltage
Description on Article:
Logo Spal
Type: 019-BBL377P/R/N-95
Made in Italy
2345 gram
OE 11114118B - 11114118C
Technical specifications:
AC-3000.7007C.pdf
Applications and Examples or
Names and product codes:
It is not allowed to copy this.
AC-019-BBL301-95/AC019-BBL301-95
AC 019-BBL301-95/019-BBL30195
019BBL301-95/019-BBL30195
AC-20220254/AC20220254
AC 20220254/AC-30002151
AC-3000.7007C/AC AC 30007007C
AC 30007.007C/AC3000.7007C
AC30007007C/AC-30007007C
AC-11114118B - AC11114118C
AC 11114118B - AC.11114118C
