009-B40/T/IE-22
Proof tension 26V
Electric consuption (A), 13 A
Air flow (m3 / h) 1050 m³ / h
Voltage 24V
N speed: Electr.Var
Base length 335 mm
Manufacturer Code 009-B40/TIE-22
Spal productor 3000.0520
Resistor type GRPWM2
Blower/Wals Spal
OE: 0008355007 - 0008355107
0028305208 - 0028309608
6278350107 - 6278350207
80523A - 81779306068 - 83075B
84410008730 - A0008355007
A0008355107 - A0028305208
A0028309608 - A6278350107
A6278350207 - H11001282
Spal® Old Artikelcode :

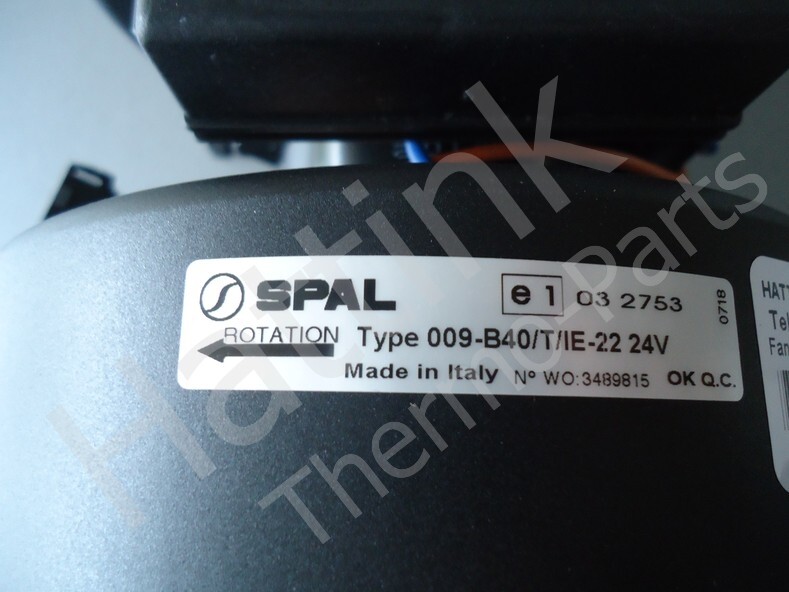

Description on Article:
Logo Spal
Type 009-B40/TIE-22 24V
e1 03 2753
Made in Italy
Netto 2393 gram
B40 20140102
182 15

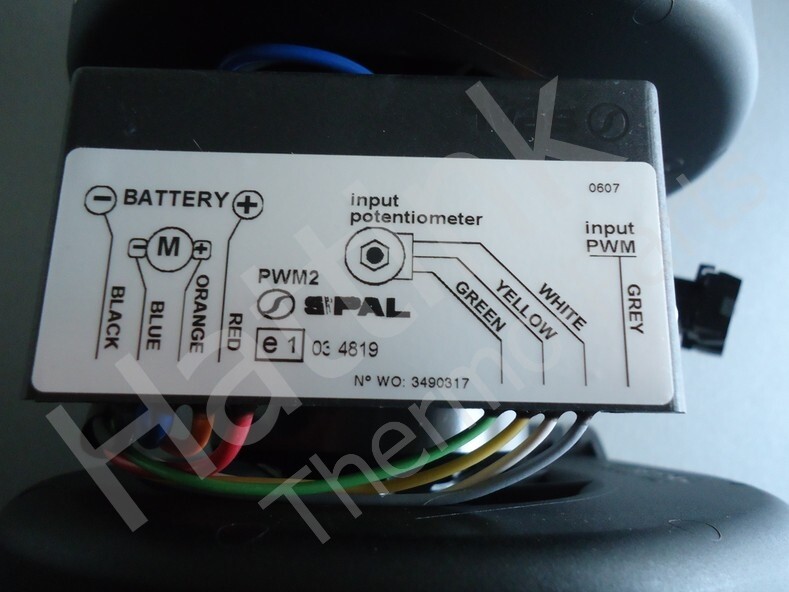

PWM2 e1 03 4849
Technical specifications:
AC-3000.0520.pdf
Applications and Examples or
Names and product codes:
