Description

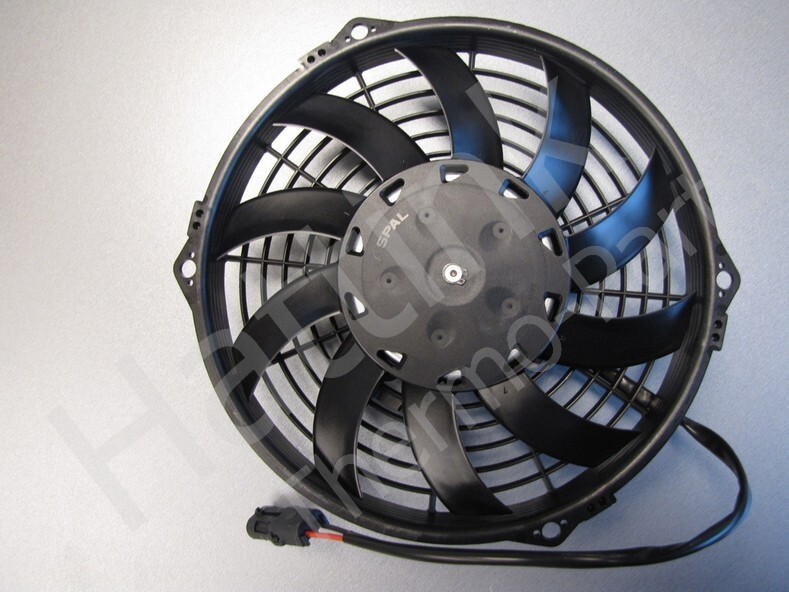

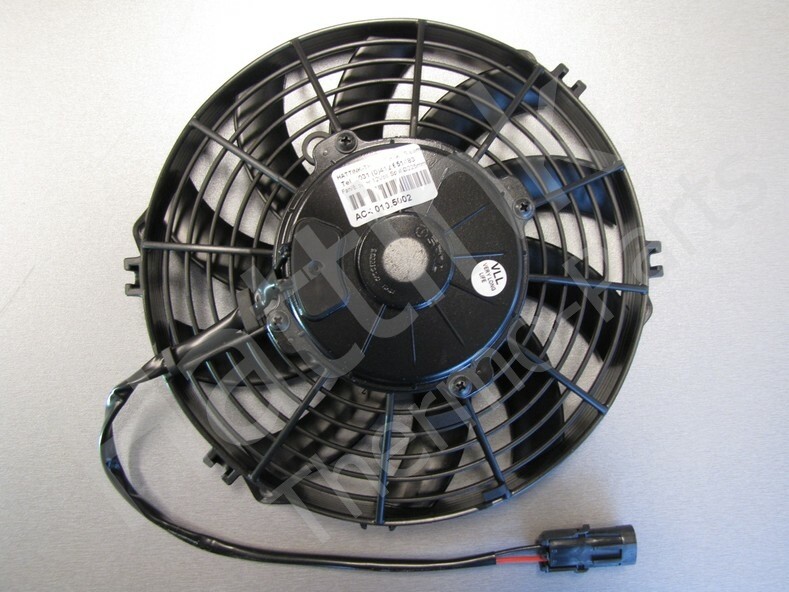

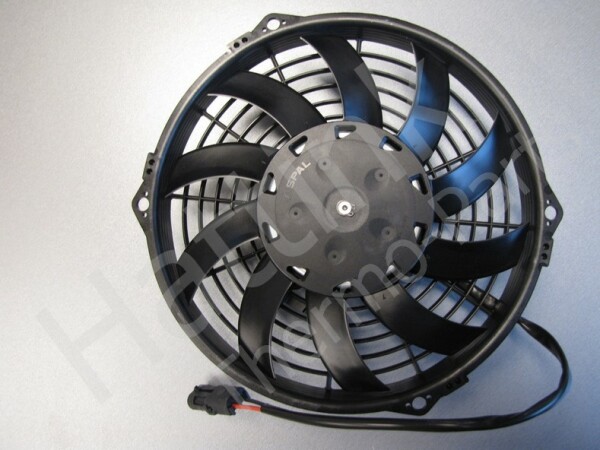

Fan Ø225mm Blowing VA07-AP8/VLL-58S
Max voltage 13V
Electric consumption (A) 7.2 A
Air displacement (m3 / h) 1080 m³ / h
Voltage 12V
Fan type blowing
Weight 976 gr
New Spal Code VA07AP8 / VLL-58S 12V
Spal productor Code3010.5002 / VA07-AP8/VLL58S
Thickness 61 mm
Blade Diameter Ø 225 mm
Channel size Ø 232 mm
Outer size for round side Ø 265 mm
Outer size on largest side Ø 248 mm
Hole size center to center Diagonal 251 mm
Hole size center to center 140 mm
Hole size center to center 208 mm
Hole size 8.4 mm
OE no.

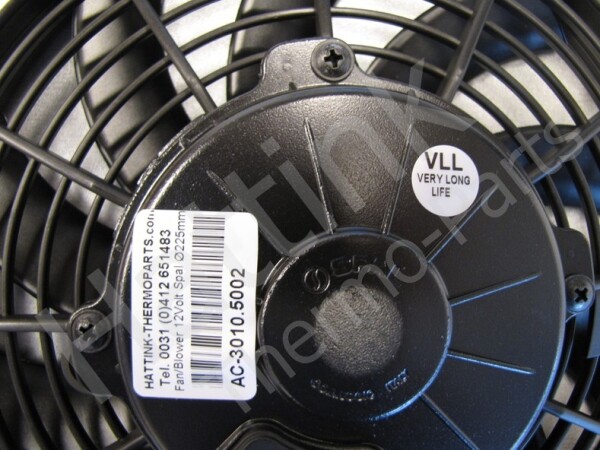

Description on article:
Logo Spal
VA07-AP8/VLL-58S 12V
e1 032756
Made in Italy
Net 976 grams
Your webshop for Spal Fans for the Netherlands
Of course also for Spal Automotive Ventilators
The cheapest in the Netherlands
Technical
specifications:
AC-3010.5002.pdf
Spal type
comparison:
Spal
Type
VA07.pdf
Designations, Examples or
applications:
Fans Spal for Autocros / racing / road racing
Spal fans for livestock transport
Axial fan / axial fans
Fans 12Volt for rally cars / cars
Extra cool fan / blower from the brand spal
Spal Fans for livestock transport, transport for live animals
SPAL Fixing products for good mounting.
Or in an Air-conditioning system for Circulation
Tuning fans 12V for more horsepower
Cooling fans for cooling Condenser / radiator
Also for Oldtimers with 12Volt power supply as extra cooling
