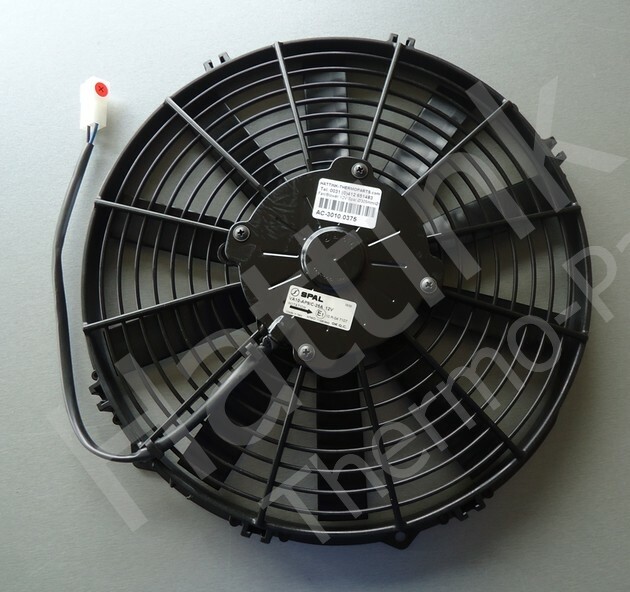

Blower 12V
Diameter Ø 305 mm
Manufacturer code VA10AP9/C-25A
Spal productor Code 3010.0375 / 30100375
VA10AP9/C25A
Duct Diameter 335 mm
Fan/Blower
Spal Fan/Blower
Ø 305 mm Suction VA10-AP9/C25A
Proof tension 13V
Electric consumption (A) 6,9 A
Air flow (m3/h) 1470 m³/h
Voltage 12V
Type Fan Suction
Thickness 51 mm

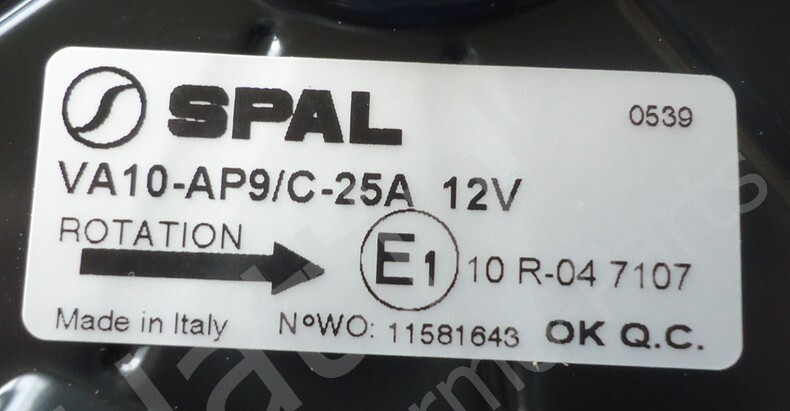

Description on Article:
Spal Logo
AC-3010.0375 12V
VA10-AP9/C-25A
Rotation : counterclockwise ( links om)
Made in Italy
Description on packing:
AC-3010.0375
OE AC-3010.0375 30315043
3MTV140
Technical specifications:
AC-3010.0375.pdf
Spal type comparison:
Spal Type VA10.pdf
Replaces:
Spal AC-3010.0375
Spal VA10-AP9/C-25A
Waeco 8880500039
Examples and applications or
Names and unit codes:
AC-3010_0375 AC-3010-0375 Waeco Spal VA10-AP9C.25A VA10-AP9\C25A 8880500039 2 AC-3010.0375 VA10-AP9_C25A VA10-AP9C-25A VA10-AP9\C.25A VA10-AP9\C-25A VA10-AP9-C.25A AC-3010.0375 AC-3010/0375 AC-30100375 VA10-AP9-C25A VA10-AP9/C-25A VA10-AP9/C25A VA10-AP9/C-25A VA10-AP9/C.25A 8880500039 VA10-AP9.C25A VA10-AP9.C-25A VA10-AP9C25A Spal 1 VA10-AP9_C.25A VA10-AP9-C-25A VA10-AP9.C.25A AC-3010\0375 3 VA10-AP9_C-25A
