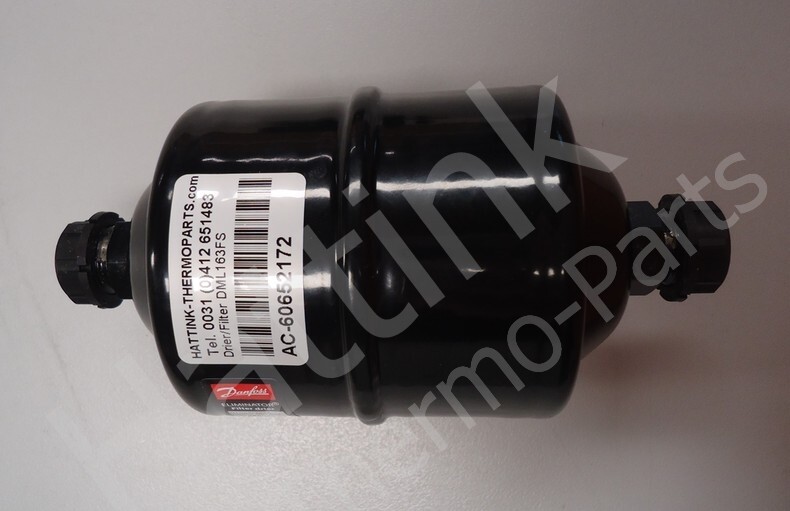

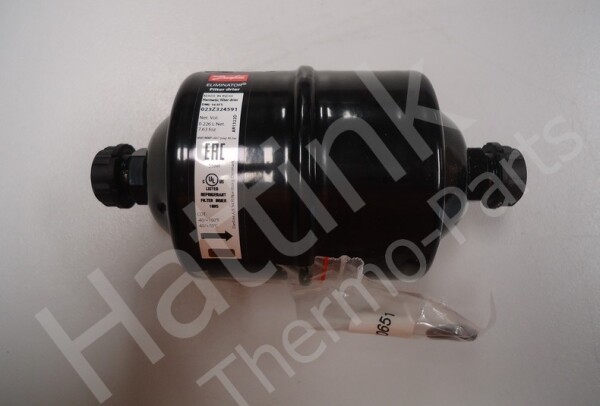

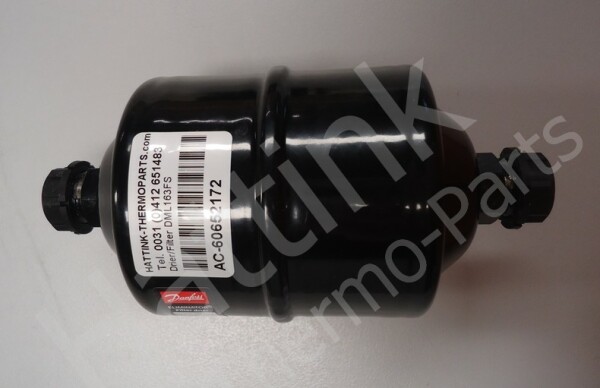

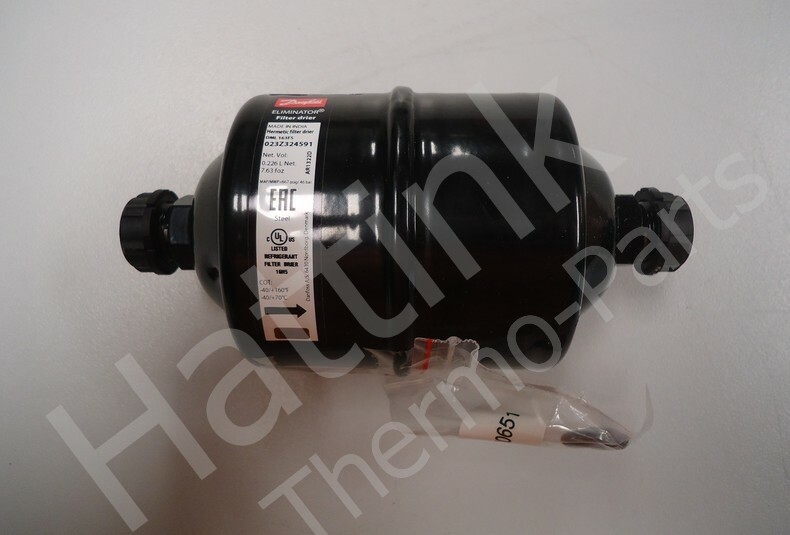

Filter/Drier DML163 FS
Inlet :11/16"-16UN ORS
Lenght: 148 mm
Outlet: 11/16"-16UN ORS
Height (h) :148 mm
Weight (KG. abt.):0,82 kg
Diameter 76 mm
Inlet thread: 11/16" 16UN - 2A
Outlet thread:11/16" 16UN - 2A
Thread: 3/8" ORS
Capacity: 234 cc
Filter exit: Male x Male
Type DML 163 FS
Body lenght 110 mm
Artikel nr. AC-60652172
Description on Article:

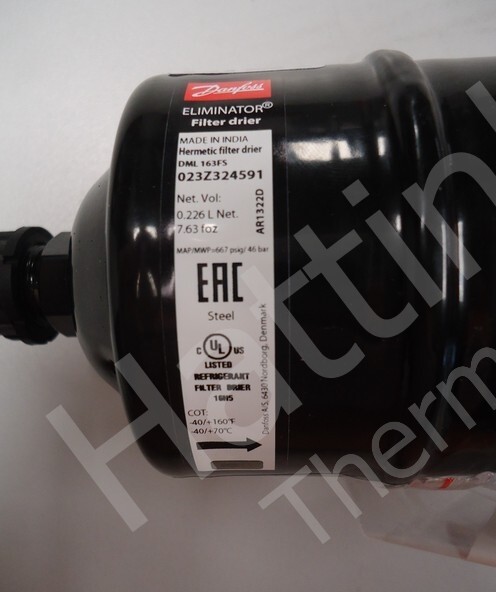

Danfoss Eliminator Filter Drier
Liquid Line
DML 163FS
023Z0245
Net Vol: 0,122 Net (4,13 foz)
Refrigerant Filter Drier 16H5
Approwed media
HFC/HCFC
cot: -40/+160°F
-40/+70°C
MAP/MWP=667 psig/46 bar
Made in Mexico
L 152 mm
Ø 74,78 mm
In/Out 3/8 in Face Seal
Netto 659 gram

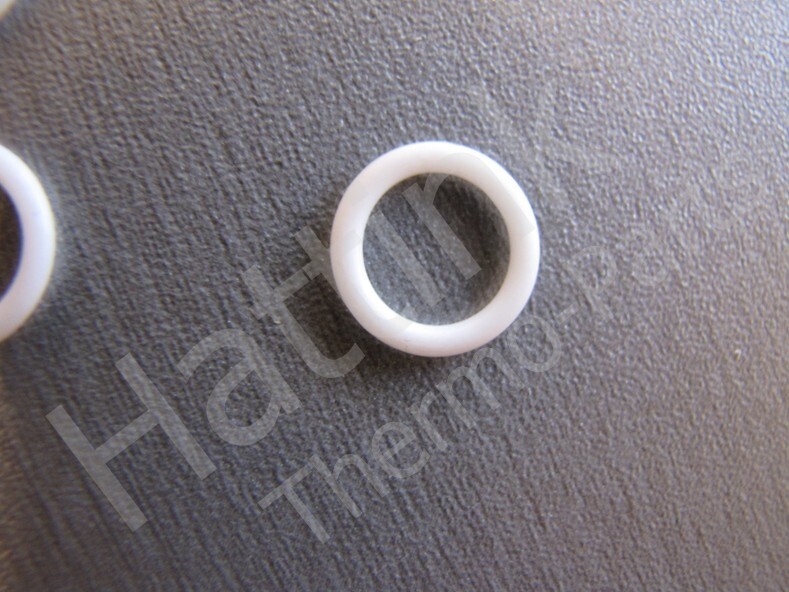

O-Ring 023Z0651
OE 1B19684H02
20104015
3504085
3FLT100
3FLT177
5D82257G01
8862090001000
Examples and applications or
Names and TKunit codes:
