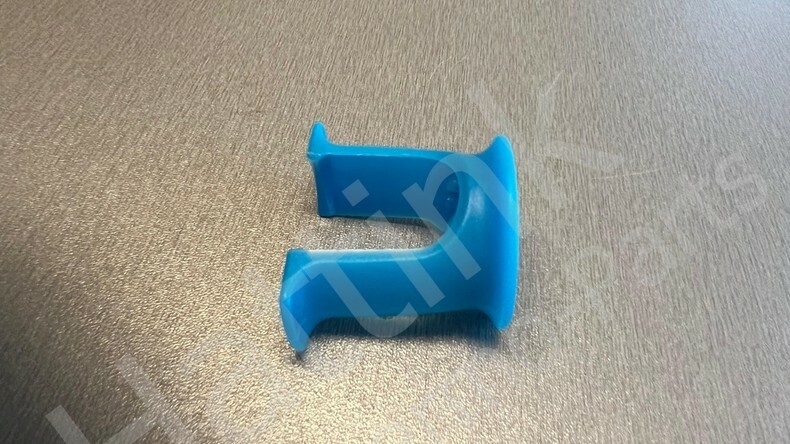

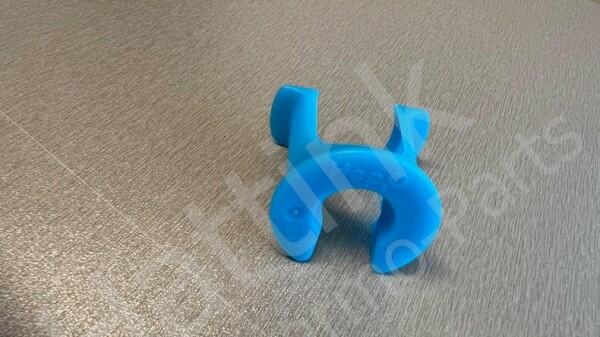

Disassembly tool for Hep2o Push-Fit System
Slide this wedge over the pipe and then over it
the thickening of the coupling creating 4 points
Relieving the clamping ring can then be done with two catches and the pipe
the pipe is pulled out of the coupling.
The easy way of working through the
insert the pipe into the coupling and the connection
With the pipe/tube finished, mount the screw side
possibly with locktite DV-203-111H
Always secure pipes/hoses/tubes
so that there are no tensions on coupling or connection.
Wavin Item Description:
Hep2O W disassembly wedge 15
HEP2O DISASSEMBLY WEDGE
OE 4449215003/3029625/4676805
156014
Descriptions and adjustments below
and applications various article codes
It is forbidden to copy bottom texts
Brand: Wavin
HEP2O DISASSEMBLY WEDGE
Wavin Hep2O HepKey Accessories/parts for fittings | 4449215003
Hep2O W disassembly wedge 15
DV-4449215003/DV-3029625/DV-4676805
DV-156014
