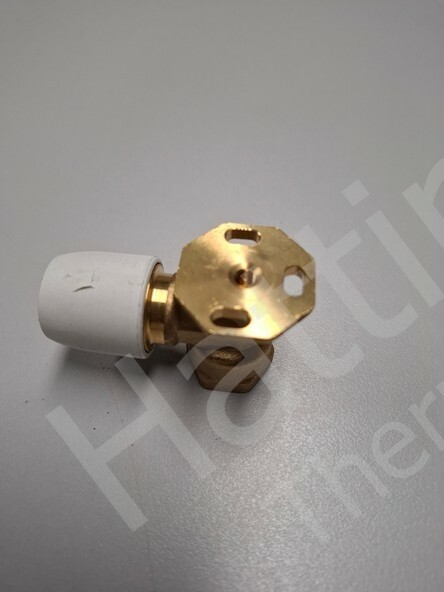

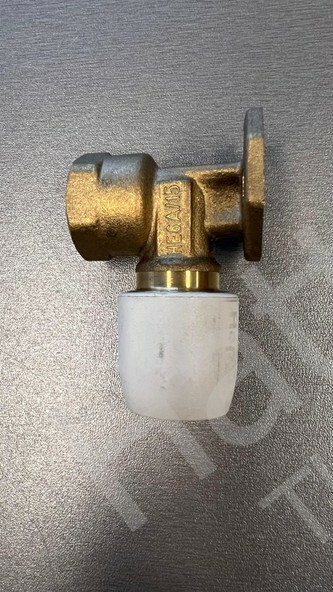

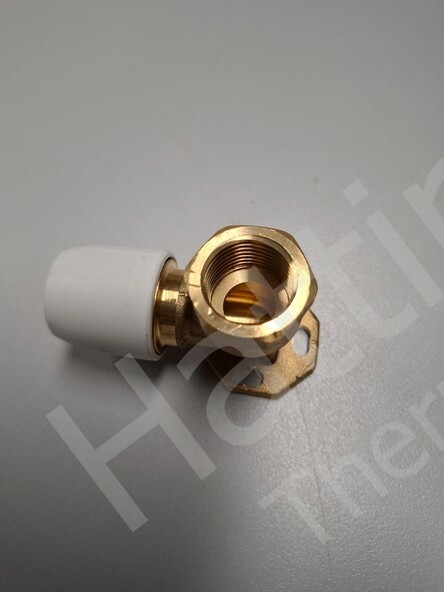

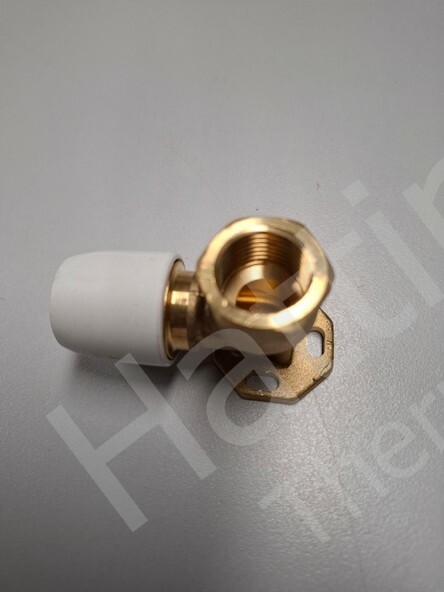

Wall mounting Hep2O brass knee coupling
For tap connection 1/2"
internal thread 1/2"x 15mm Tube size
Hep2O Push-Fit System 15mm
Link Hep2O
Wavin Hep2O wall plate, housing polybutylene (PB),
surface protection none (untreated),
angled, tap connection thread size 1/2",
external pipe diameter connection 15mm,
other, system-related, length from wall plate 48mm,
KIWA quality mark, other quality class,
or possibly brass version.
OE 9021676/4448815121
4441615121/4676771
For installing water pipes, either cold or hot
for and Yacht Construction Camper and Caravan.
Assembly:
1. Customize
2. Install the plug-in sleeve in the pipe
3. Sliding coupling over the tube 15mm
4. Turn the pipe counterclockwise and clockwise once
Description on Article:
Hepo
E177-5
HE6A/15
15MM
BS7291/2
Description on packaging:
Wav Hep20 Muurplaat 15x1/2"BI
H280
100202452
Applications and Examples or
Names and product codes:
