OE 134684430
Compressor for
Case 78 / Case78
Case 86 / Case86
Case 94 / Case94
Case 110 / Case110
Case 120 / Case120
Case 130 / Case130
Case 150 / Case150

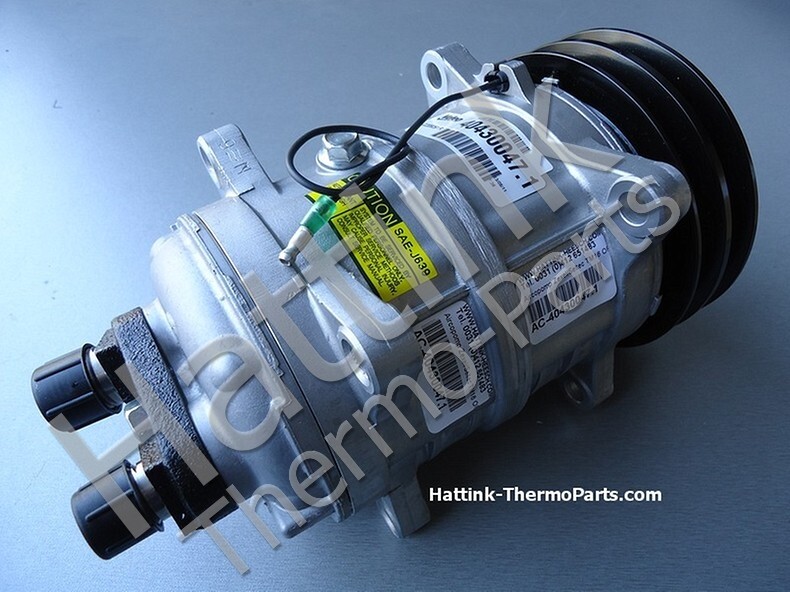

Compressor TM 16 HD OR Horizontal 12V 5"1/4 2G A
Displacement 162,9 cc
Refrigerant R134a
Oil Type ZXL 100PG (or Equiv.)
Oil Quantity 180 cc

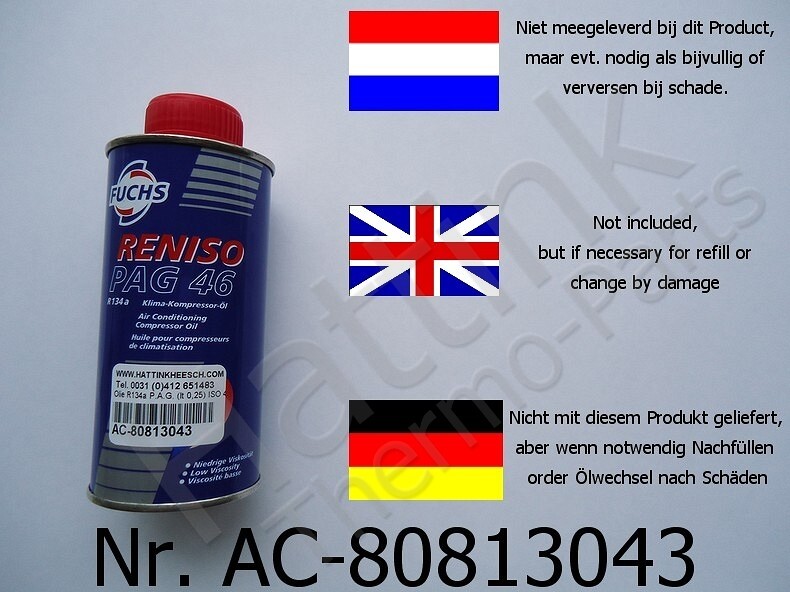

Autoclima Oil code AC-808'13043

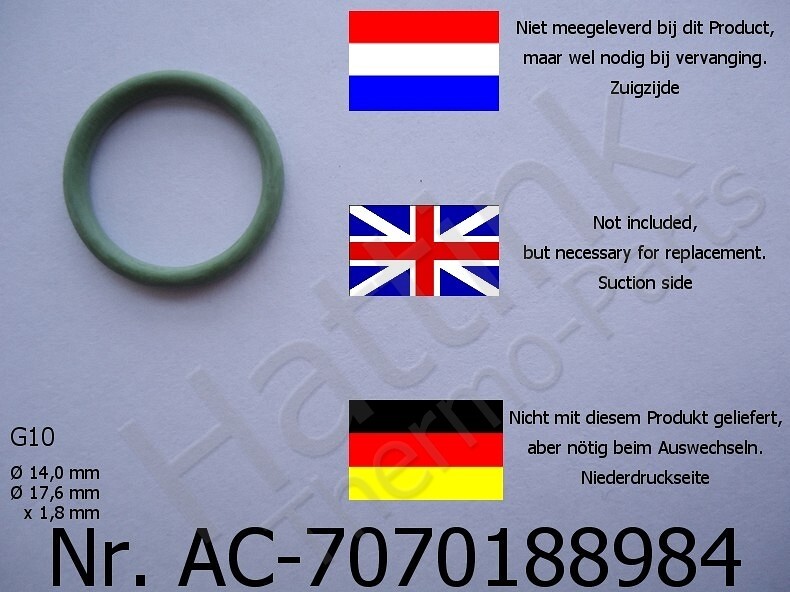

Suction fitting 7/8" 14UNF

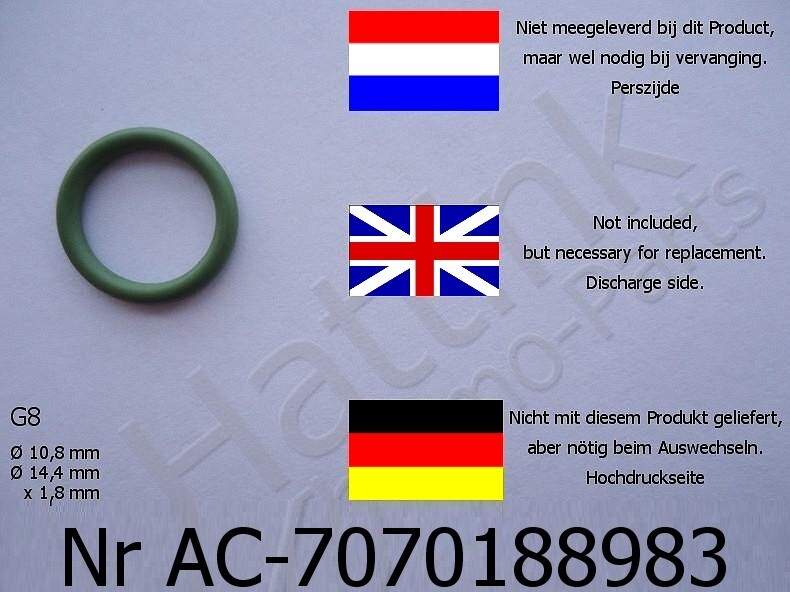

Discharge fitting 3/4" 16UNF

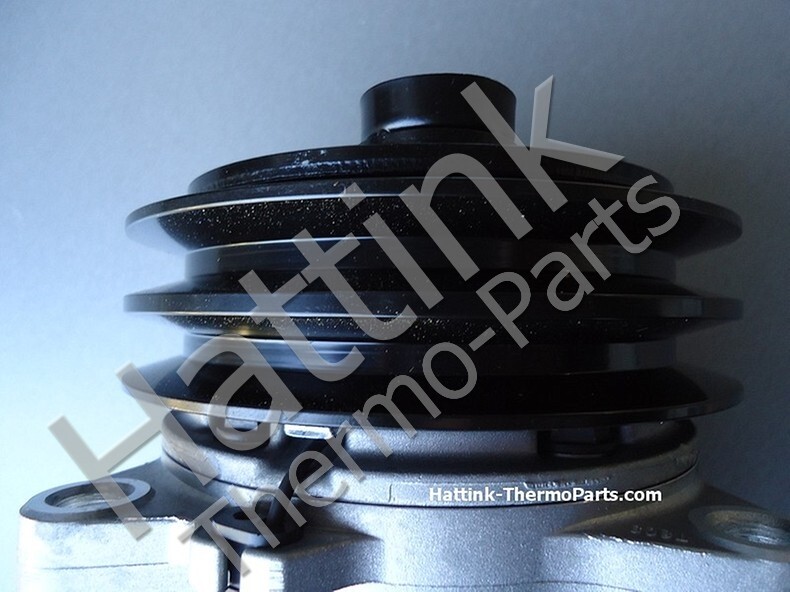

Pulley Diameter Ø 125 mm
Voltage 12V
Number of grooves 2 "A"
Section Groove 12,7 mm
Compressor Type Zexel TM16
Fittings OR O.

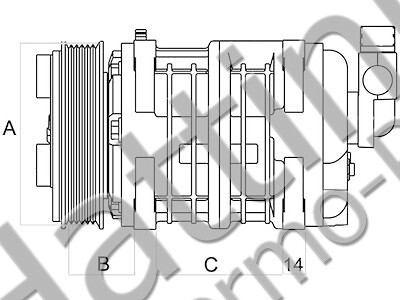

B (mm) 53,9 mm
C (mm) 83,3 mm
Mod. builder-Valeo
Valeo C209205H
Seltec HFC 134a

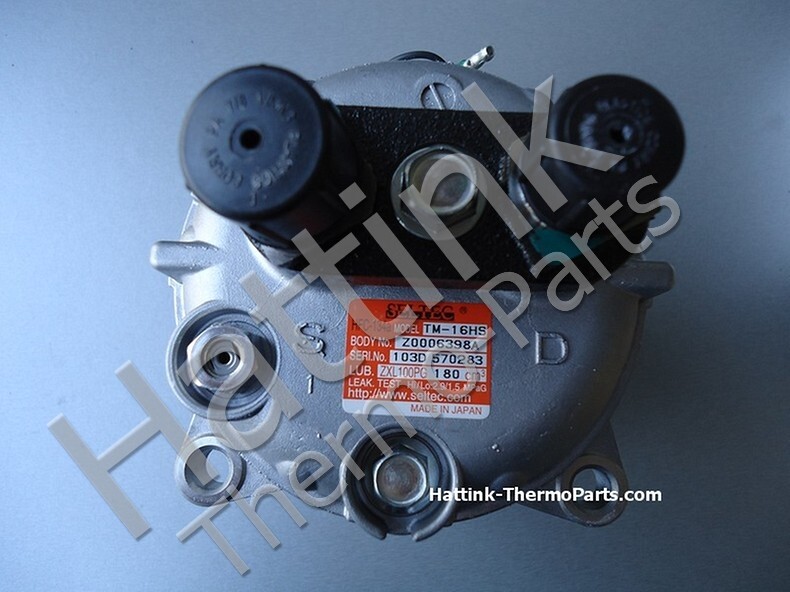

Model TM-16HS
Body No.Z0006398A
LUB.ZXL 100PG 180cm³
Made in Japan
Netto 7,2 kg
Applications and Examples or
Names and product codes:
