Pay attention to O-rings
Not included,
See photos
Zexel/Tama/Valeo
Compressors 12V:

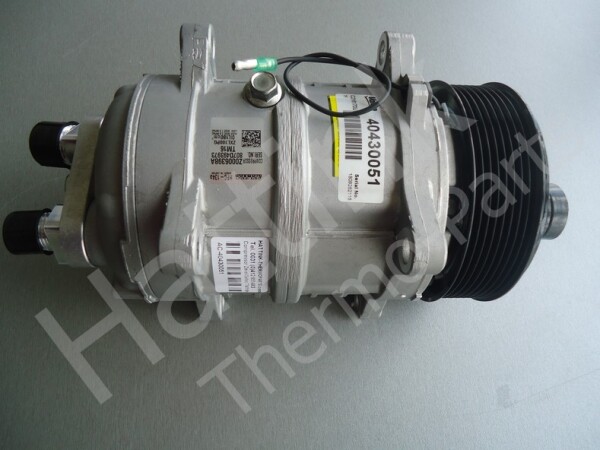

Description Air conditioning Compressor:
AC Compressor:TM16HS (TM16HD)
Connection: O-ring
Coupling Type: 3-Eye
Voltage: 12V DC
Ø119 mm Poly-v 8
Connection: Horizontal
Compressor info:
Capacity: 163cc
Refrigerant: (HS) R134A
Oil type: (HS) ZXL 100PG / (HX) Supplied without oil / (HD) 5GS
Quantity of oil: 180 ml
Oil type from us, see Photo

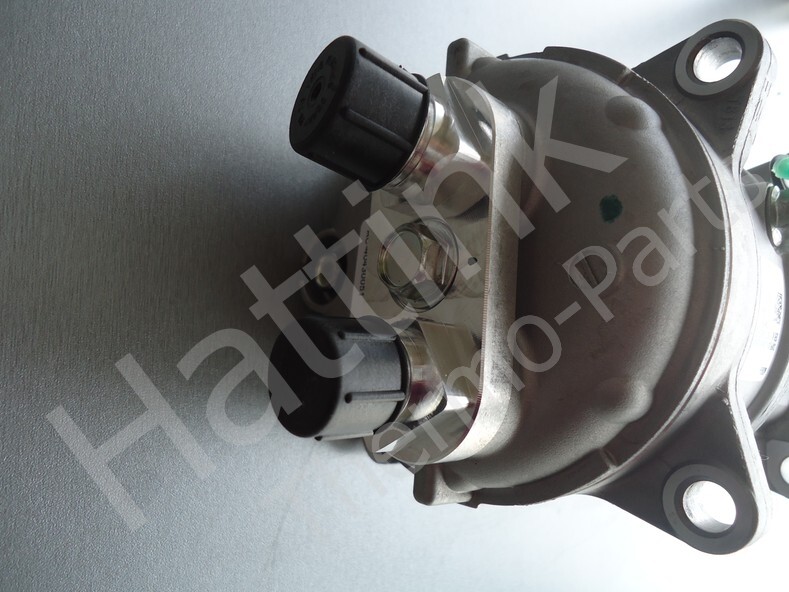

Connection Type: O-Ring
Coupling Suction:(G10) 7/8" 14UNF
Coupling Press:(G8) 3/4" 16UNF
Mounting: 4 mounting ears
with hole size Ø10.3
Heart size Hole/Hole 104mm
Cylinders: 6
Rotation: CW/CCW
Clutch/Cluts info:

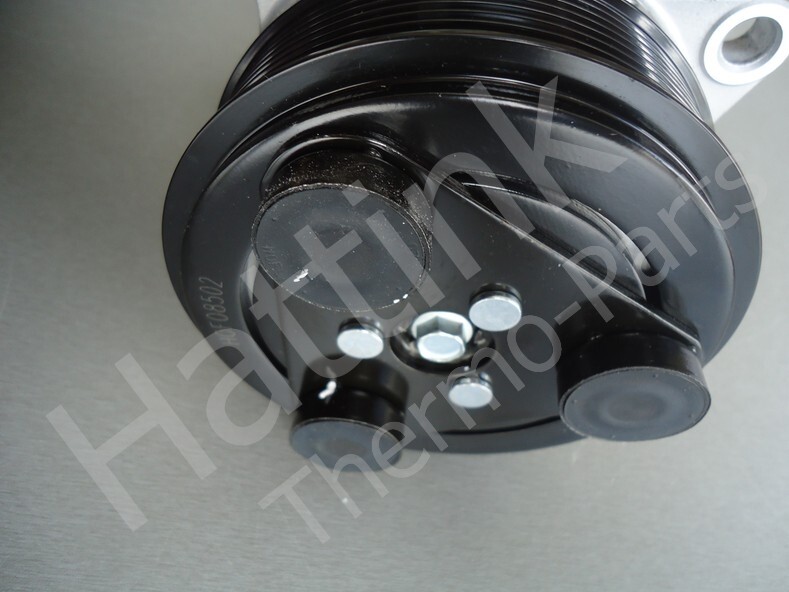

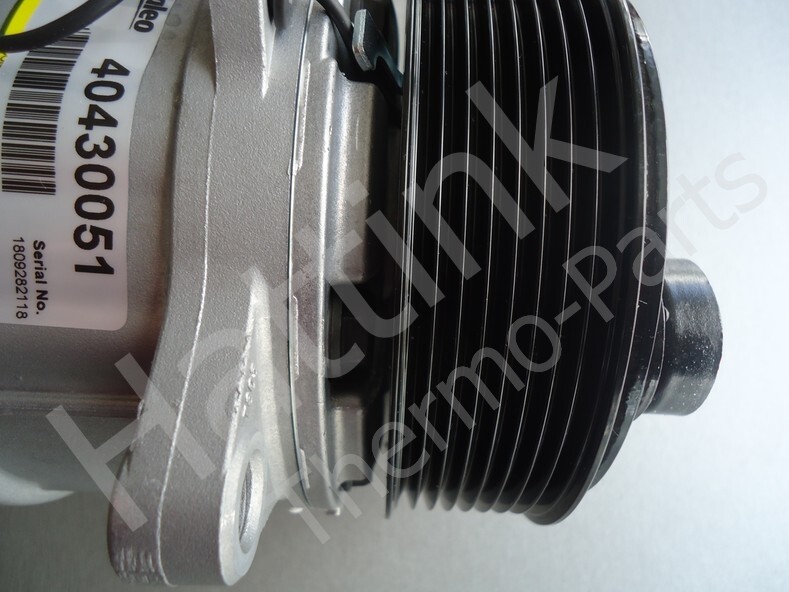

Pulley at groove: Ø 119 mm
Pulley at side edge: Ø 122.8 mm
Voltage: 12V DC
Number of grooves: 8 Type Poly-V 8
Groove size: 3.56mm
Speed range: 700-6000 RPM
Compressor type:
Seltec/Zexel TM16 HS / TM-16HD / HX
Connection: O-ring
Housing type:Z0006398A/Z0006359D
W (mm) 46.5mm
C (mm) 83.3mm
Description on Air conditioning pump:
Seltec HFC-134a
Made in China
Compressor Z0006359D
Serial no:
TM16
ZXL100PG
Oil 180c m³
High Side 2.9 MPaG
Low Side 1.5 MpaG
Net 7.4 kg
C216170U
Descriptions and adjustments below
and applications various article codes
