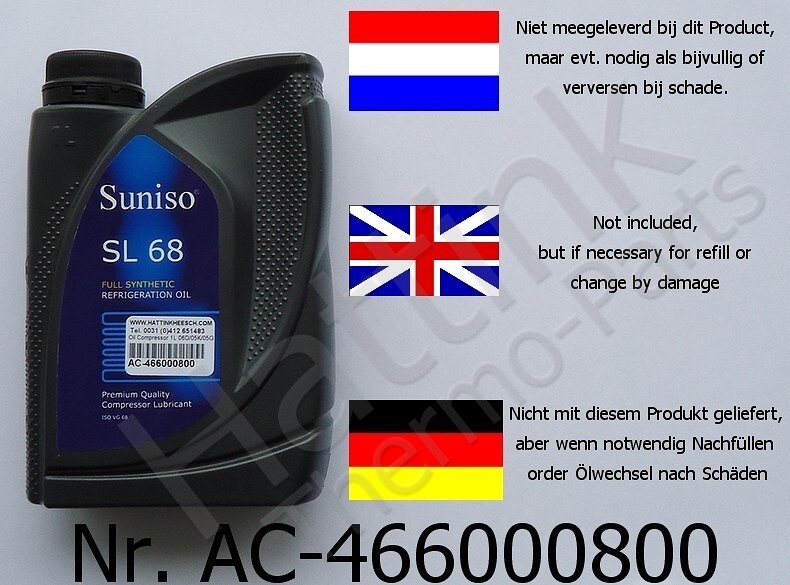

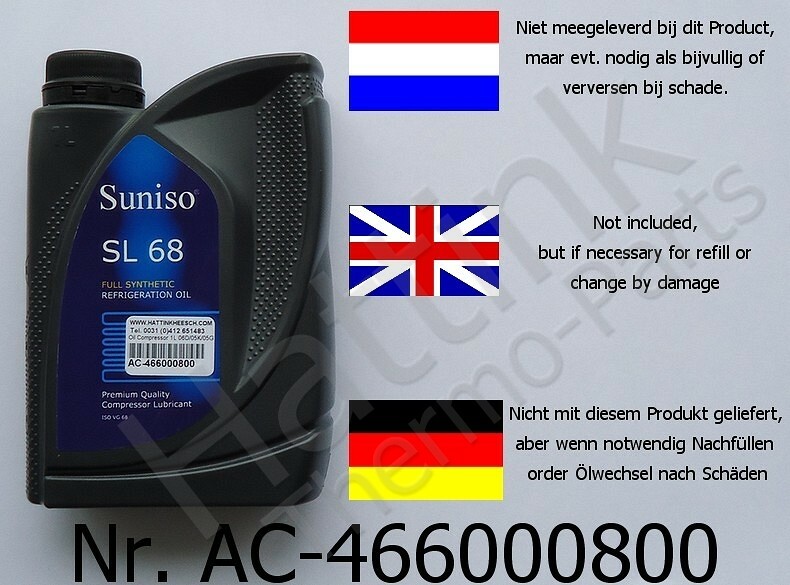

No oil in the compressor supplied

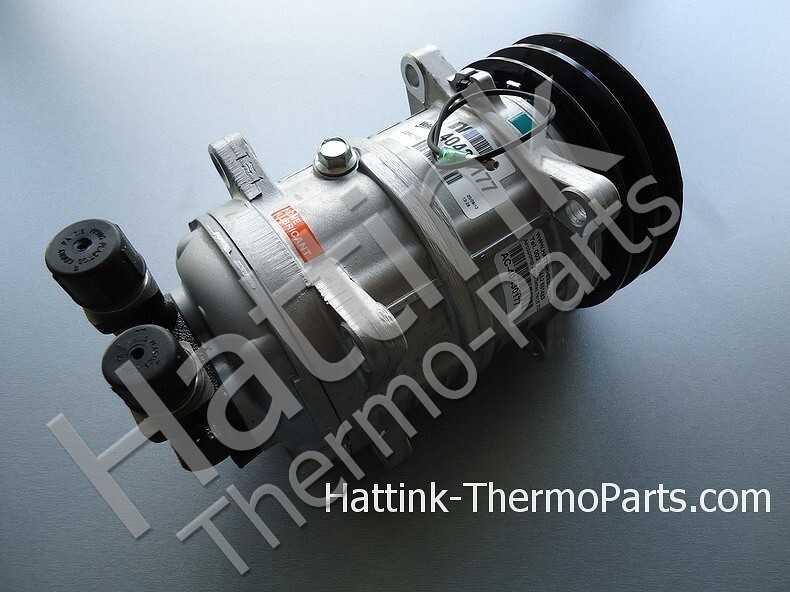

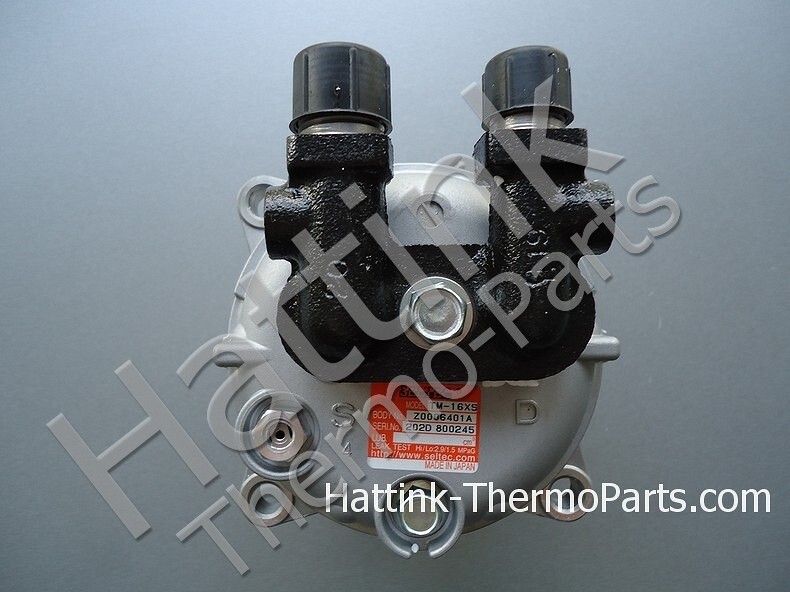

Description A/C Compressor
TM 16 XS OR Vertical 12V 5"1/4 2G A
Displacement 162,9 cc
Refrigerant R404a
Oil Quantity 0 cc

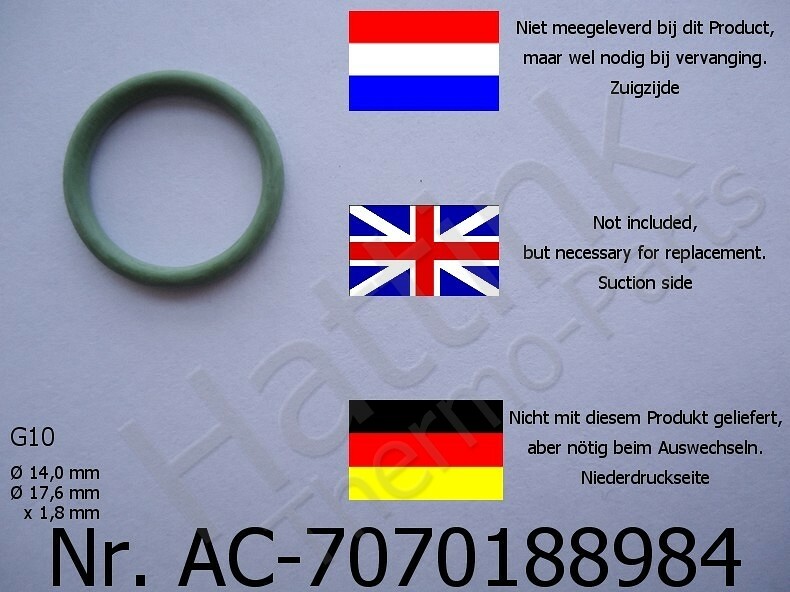

Suction fitting 7/8" 14UNF

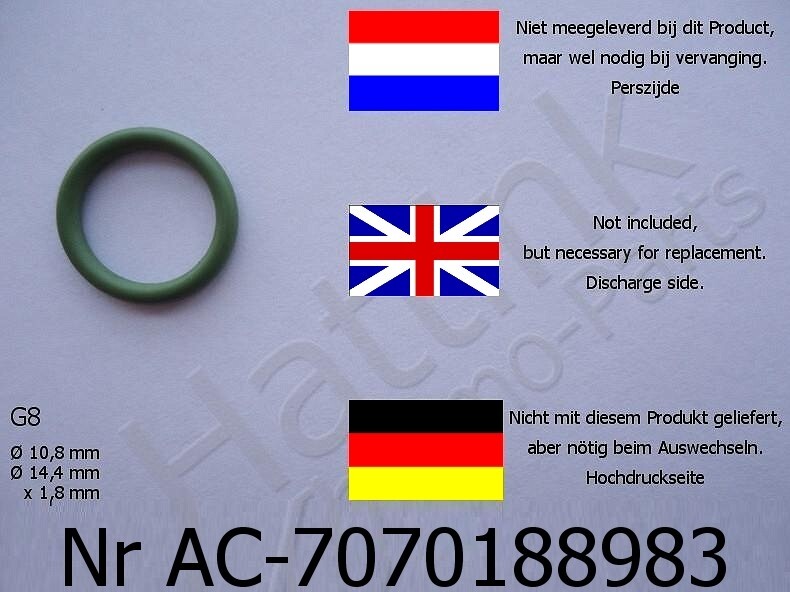

Discharge fitting 3/4" 16UNF

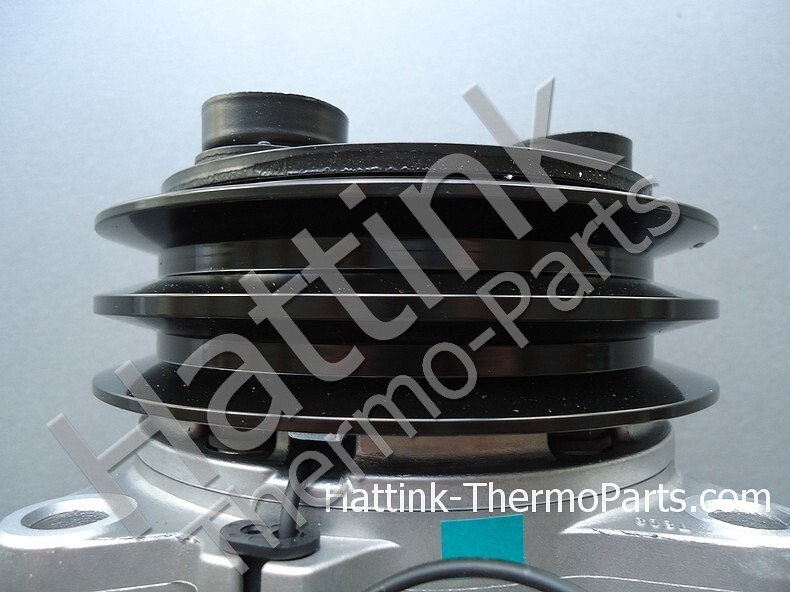

Pulley Diameter Ø 135 mm
Voltage 12V
Number of grooves 2 "A"
Section Groove 12,7 mm
Compressor Type Zexel TM16XS
Fittings OR O.

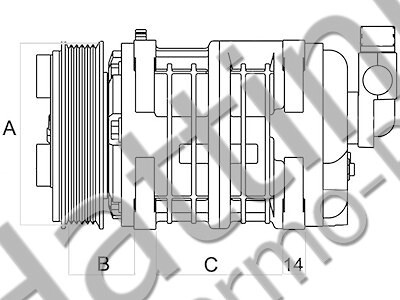

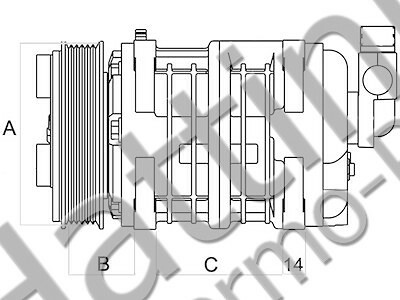

B (mm) 39,5 mm
C (mm) 83,3 mm
Valeo C208276B

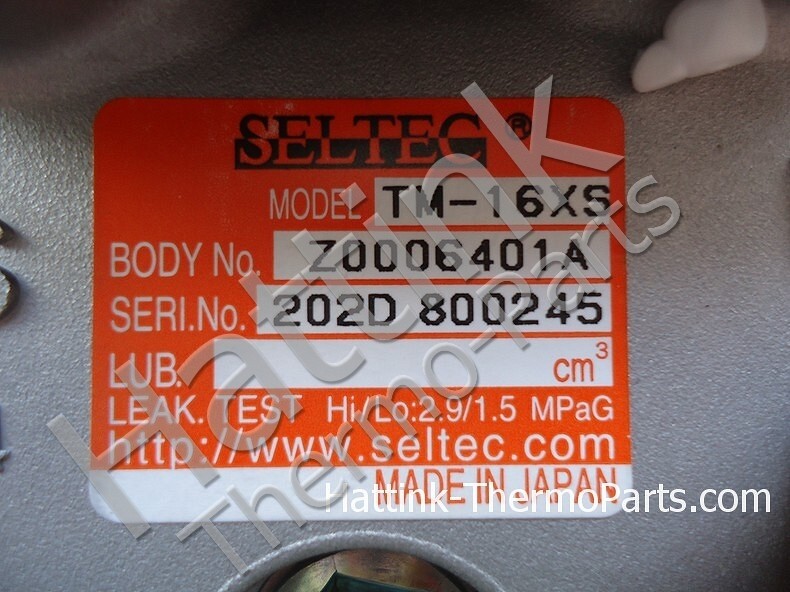

Seltec

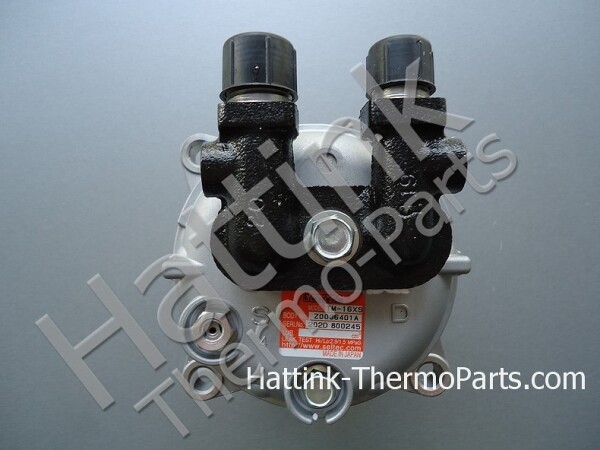

HFC134a Model TM-16XS
Body No.Z0006401A
LEAK.TEST Hi/Lo:2.9/1.5 MPaG
Made in Japan
Net 7400 gram
OE no. 3CMT203 / Valeo C208276B
Applications and Examples or
Names and product codes:
