This Compressor version
TM15XD-15XS
Will always be delivered without carter oil
and magnetic clutch
It is possibly to order the correct oil and Clutch
See below: Adding Accessories
Low Temperature Compressor
for refrigeration direct drive
such as Carrier / Thermoking
Frigosoft / Zanotti / Govet / Santa
Konvecta / Davia / Cibin / Webasto.
Zexel / Tama / Valeo
Description Air Compressor:
TM15 XS

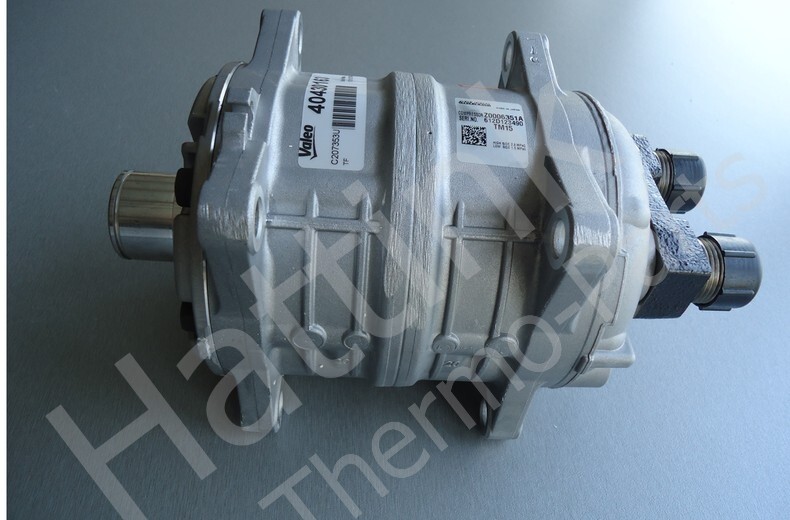

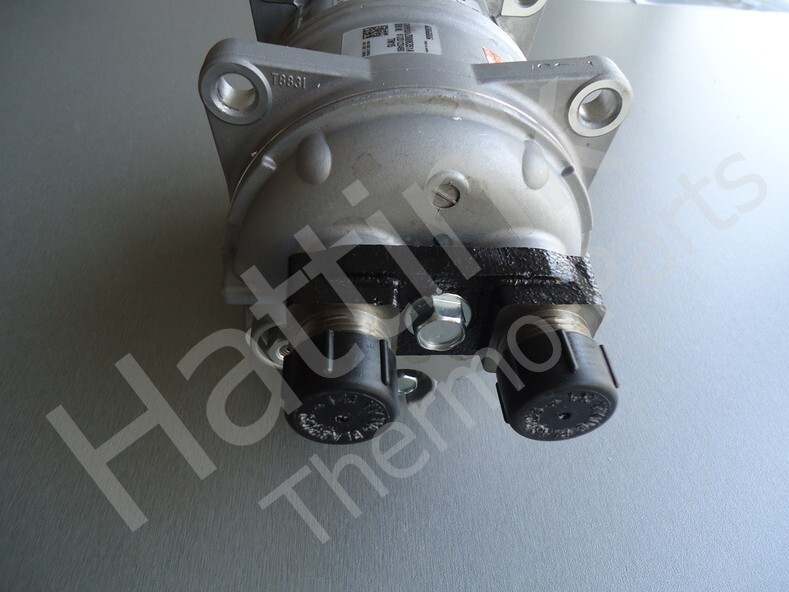

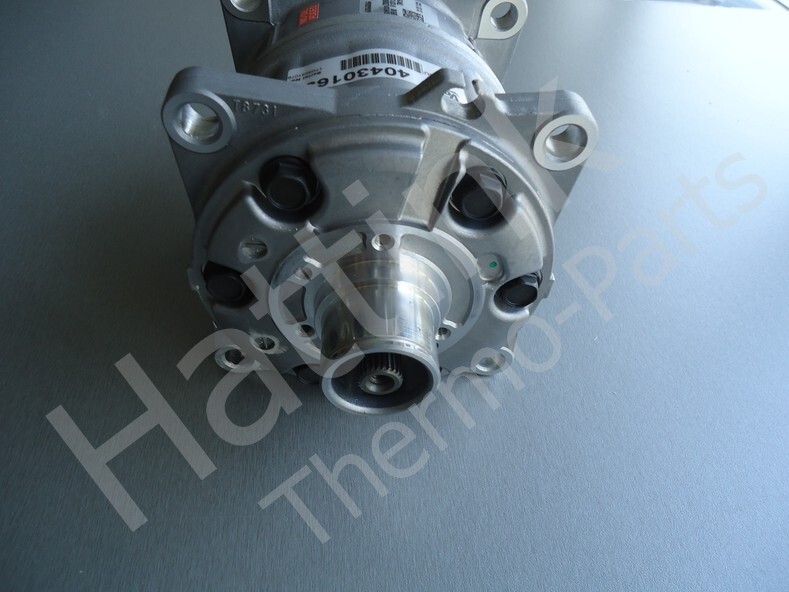

AC Compressor: TM15 XS TM15XS (TM15XD)
Connection:
Connection:
Compressor info:
Capacity: 147cc
Refrigerant: R404a / R134a
Oil type: Delivered with oil
Quantity of oil: 150 ml
Oil type of us see Photo
Connection Type:
Coupling Press:
Mounting: 4 mounting ears
with hole size Ø10,3
Heart size Hole / Hole 104mm
Cylinders: 6
Rotation: CW / CCW
Tours range: 700-6000 RPM
Compressor type:
Seltec / Zexel TM-15XS / TM-15XD / TM-15XS
Connection:
Housing Type: Z0006351A
B (mm) 39.5 mm / B (mm) 46.5 mm
C (mm) 83.3 mm

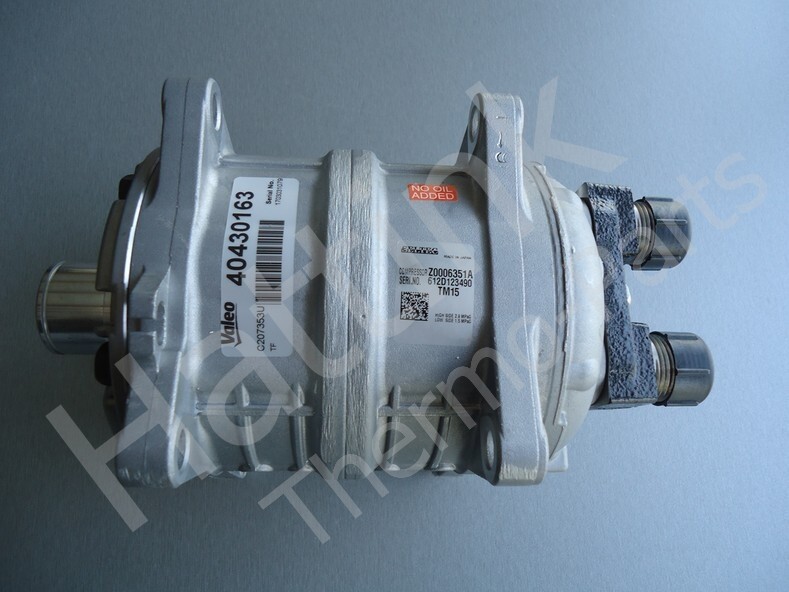

Description on Aircompomp:
Seltec
Model TM-15XS
Body No. Z0006351A
LUB. CM³
LEAK.TEST Hi / Lo: 2.9 / 1.5 MPaG
Made in Japan
Net 7400 gram
According to the rules art.SAE-J639
