Note oilless

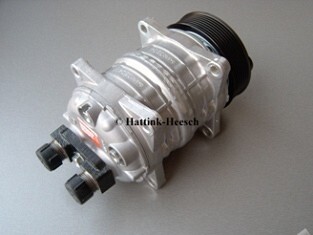

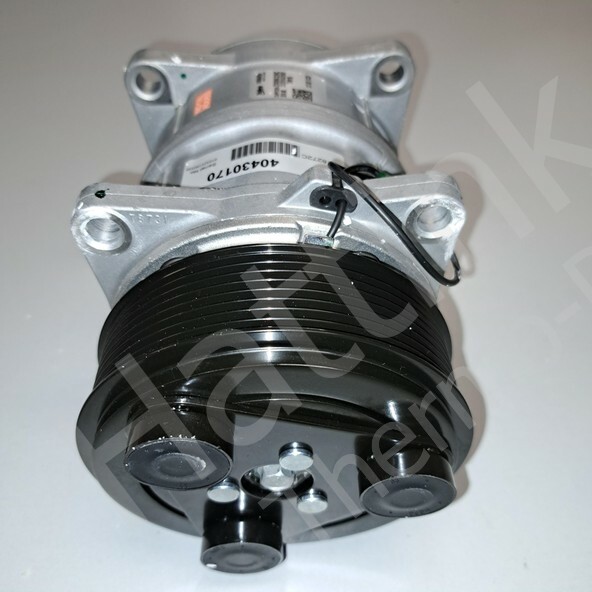

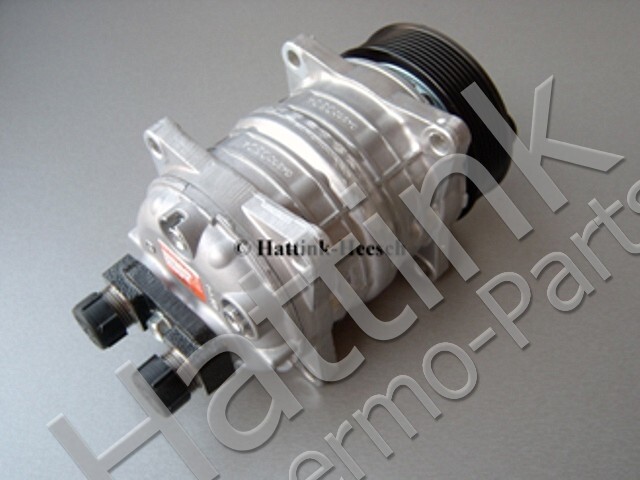

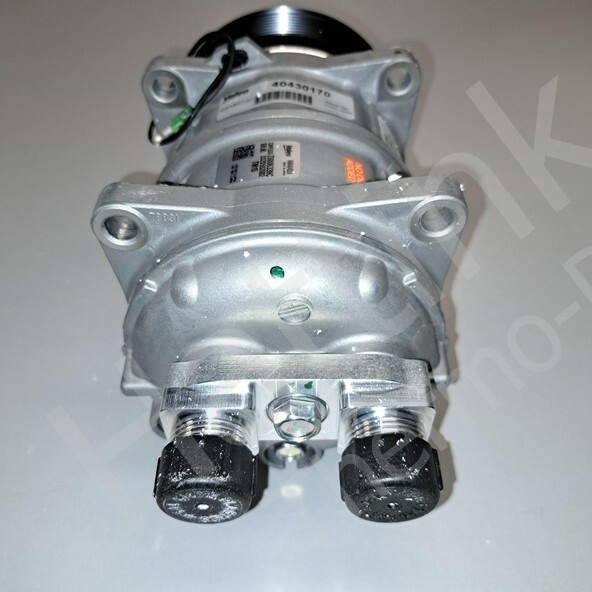

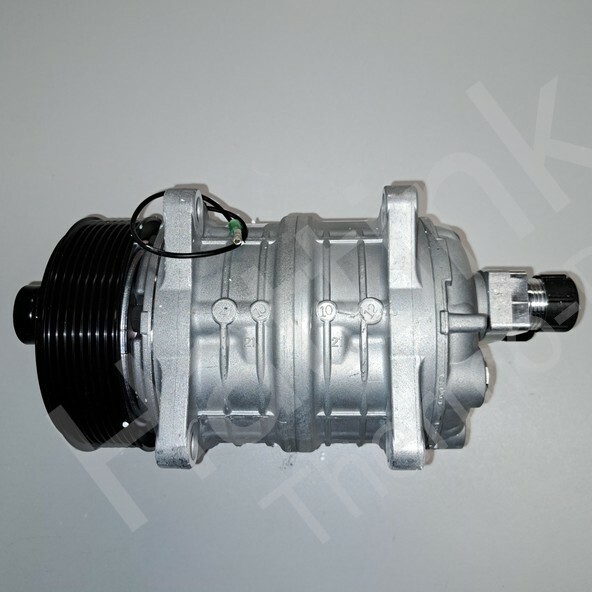

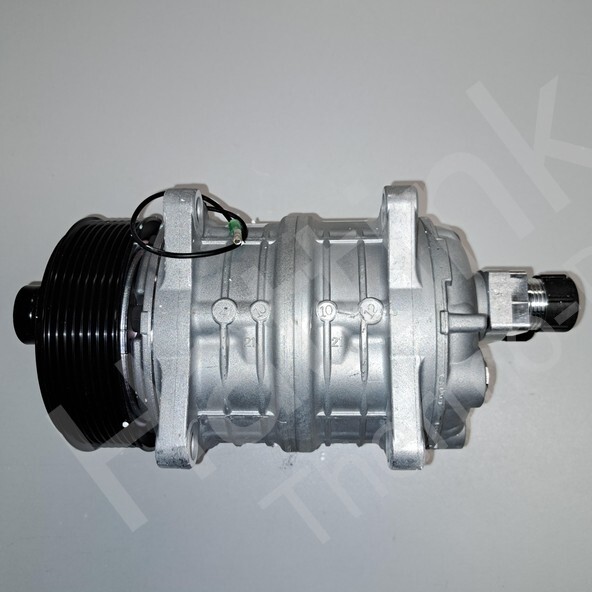

Compressor TM 15 XS OR Rotolock Horizontal 12V Poly-V 8
Displacement 146,7 cc
N° Cylindres 6
Refrigerant R404a

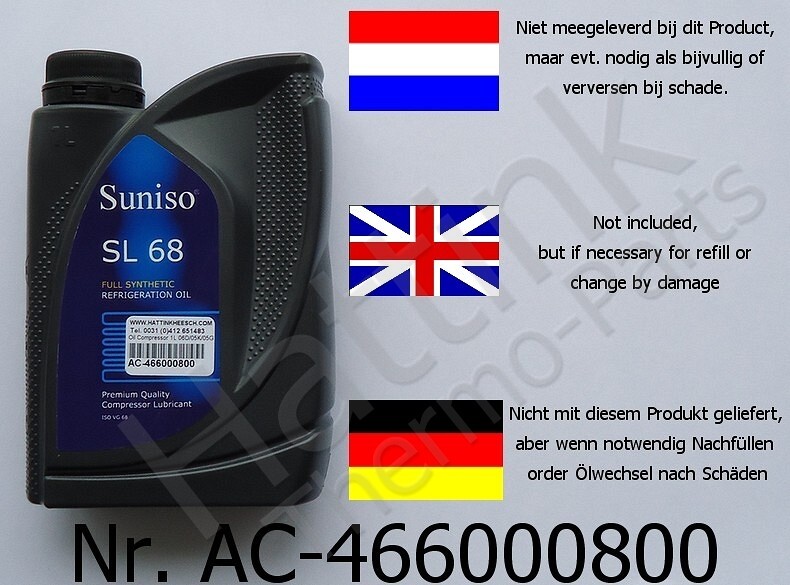

Oil Type Eartic 68 (or Equiv.)
Oil Quantity 150 cc
RPM Max. 6000 r.p.m.
Installation position ± 45°
Rotation Clockwise
Suction fitting 1" 14UNS
Discharge fitting 1" 14UNS
Pulley Diameter Ø 119 mm
Voltage 12V
Number of grooves 8
Groove type Poly-V
Section Groove (S) 3,56 mm
SELTEC
Model TM-15XS
Body No.Z0006351A
616962
