Note: oilless
| Model | TM15XS |
|---|
| 147cc |
|---|

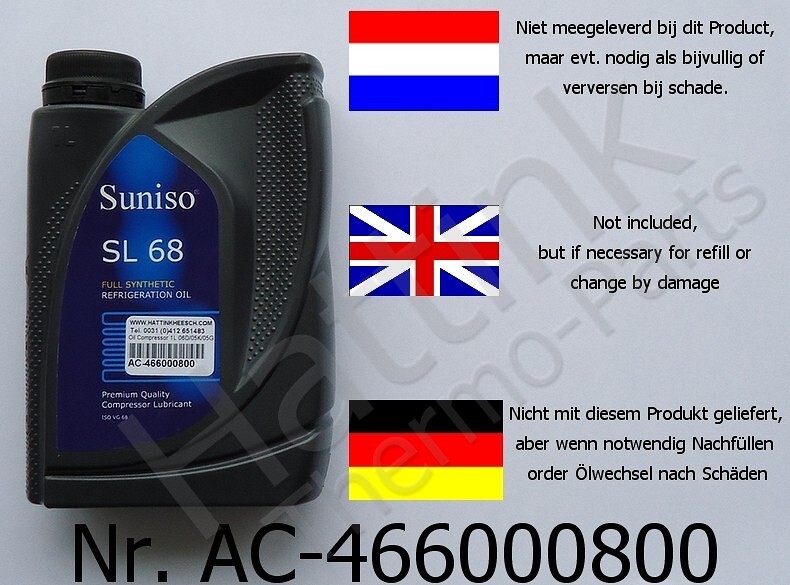

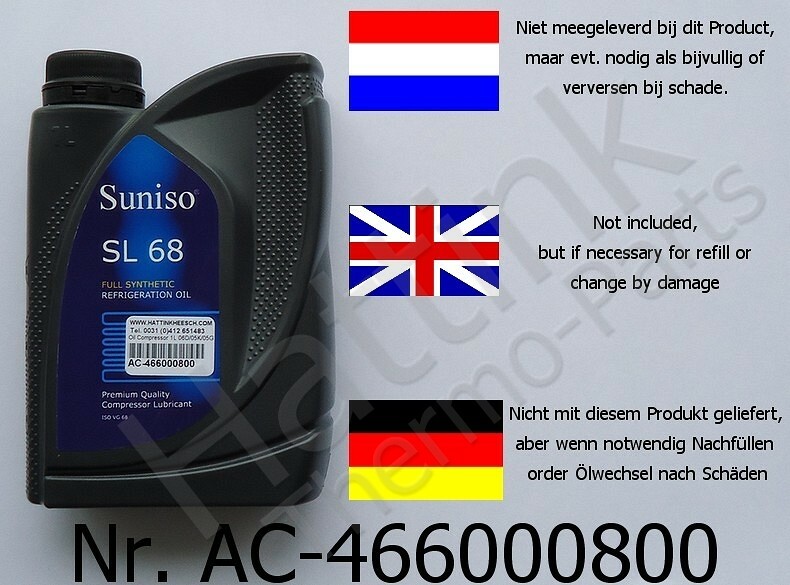

| POE 68 |
|---|
| 39,5mm |
|---|
| 83,3mm |
|---|
| TM15 |
|---|
| Z0006339C |
|---|
| 700-6000RPM |
|---|
| 6x |
|---|
| 104mm |
|---|
| 10,3mm |
|---|
| 4x |
|---|
| 150cc |
|---|
| R404A-R452A |
|---|
| Joining | Horizontaal |
|---|
| Joining typ | O-ring |
|---|

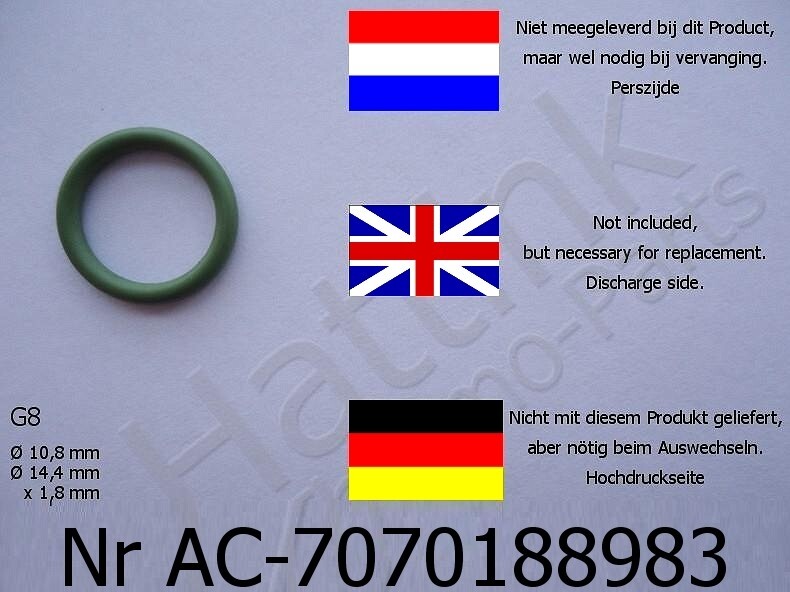

| Discharge fitting | G8 3/4" 16UNF |
|---|

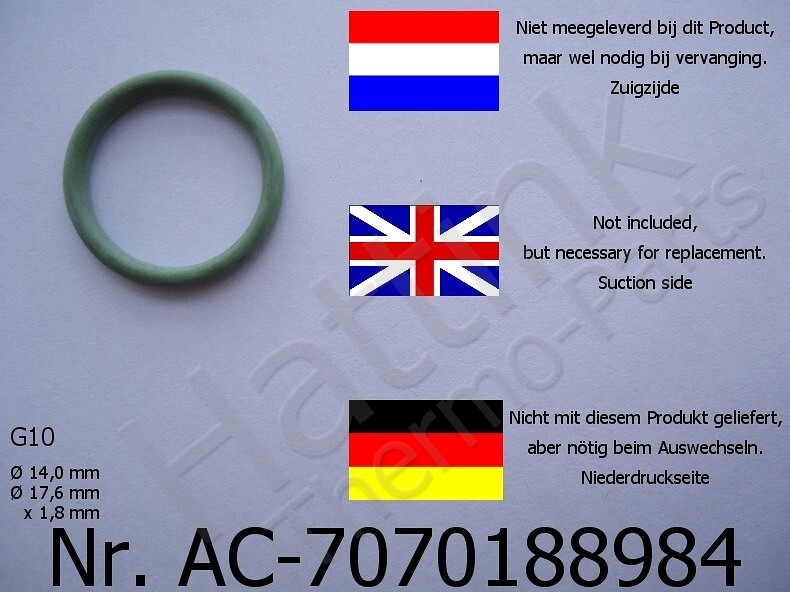

| Suction fitting | G10 7/8" 14UNF |
|---|
| Clutch Type | 3-eye |
|---|

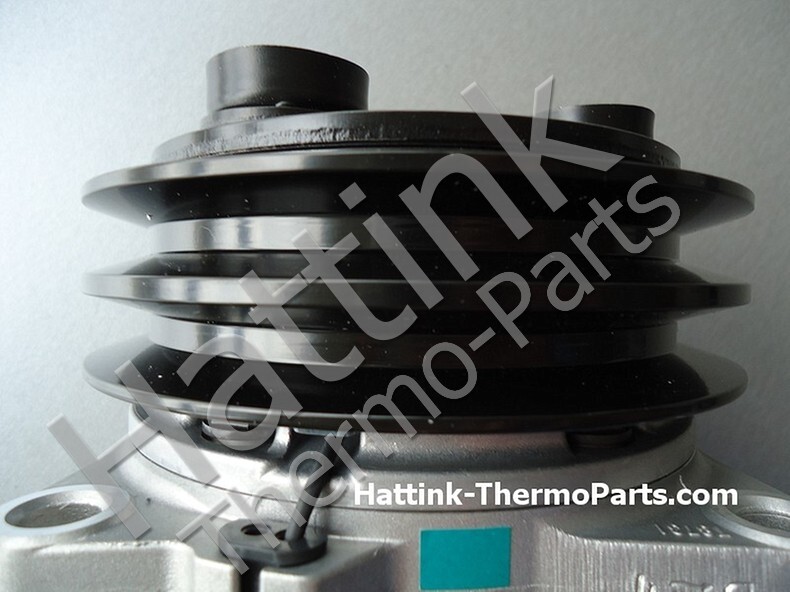

| Pulley Diameter | 132mm |
|---|
| Number of grooves | 2Ax |
|---|
| 12,7mm |
|---|

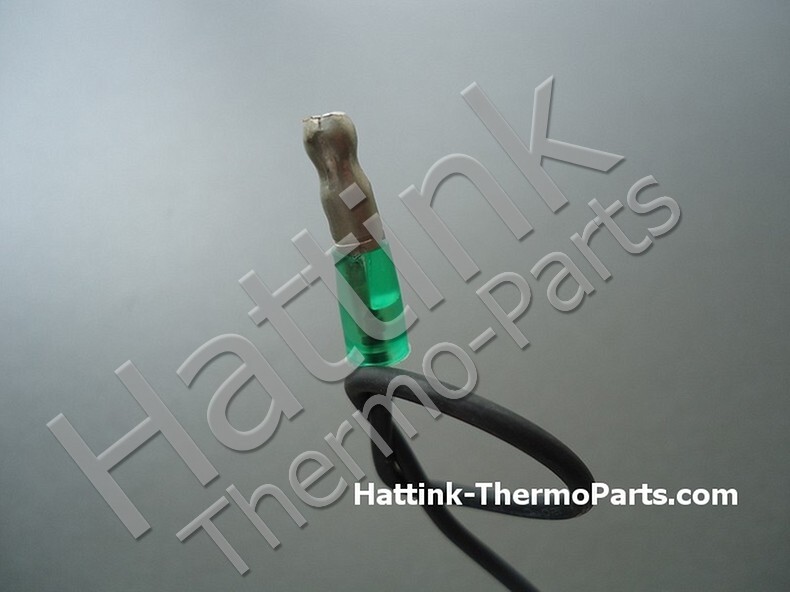

| Voltage | 12V |
|---|
| 45W |
|---|
| 3,75A |
|---|
Description on Article:

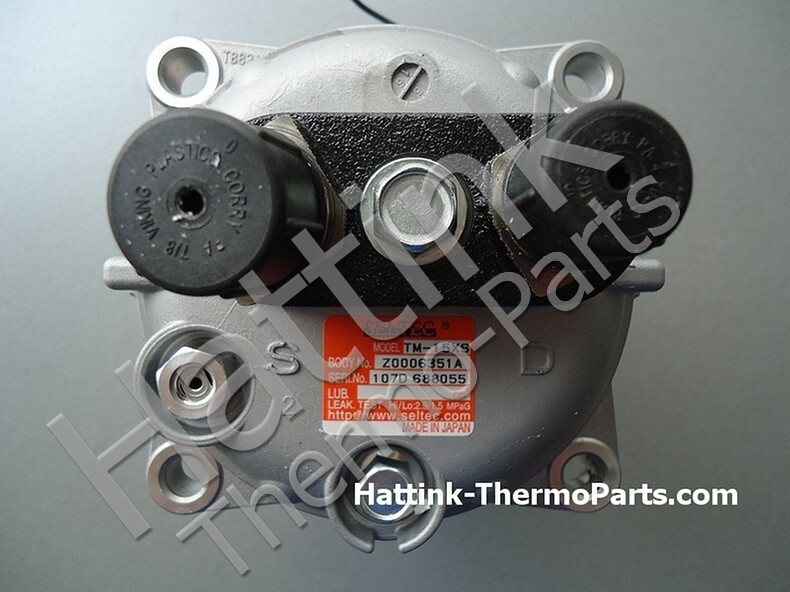

SELTEC

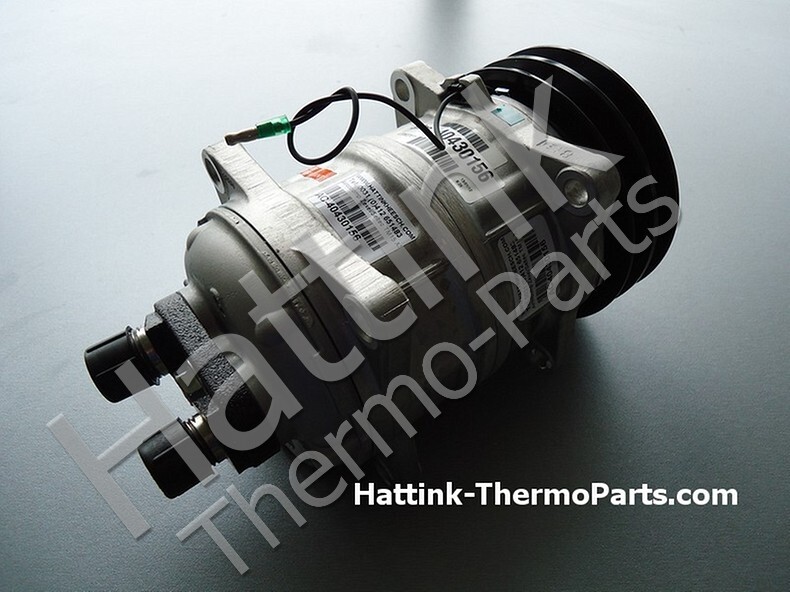

Model TM-15XS
Body No.Z0006337C
C208270T
Made in Japan
Net 7300 gram
Applications and Examples or
Names and product codes:
It is not allowed to copy this.
Seltec TM15XS O-Ring Horz.12V Ø135mm 2A
Celtec/Zeltec/Seltek/Zeltek/Sexel
Seltec TM15 XS Oring Horz.12V Ø135mm 2A
Seltec TM15-XS Oring Horzontaal 12Volt Ø135mm 2A
Zexel TM15XS O-Ring Horz.12V Ø135mm 2A
Zexel TM15 XS Oring Horz.12V Ø135mm 2A
Zexel TM15-XS Oring Horzontaal 12Volt Ø135mm 2A
Tama TM15XS O-Ring Horz.12V Ø135mm 2A
Tama TM15 XS Oring Horz.12V Ø135mm 2A
Tama TM15-XS Oring Horzontaal 12Volt Ø135mm 2A
