Always supplied without sump oil
If necessary,
order the correct oil separately

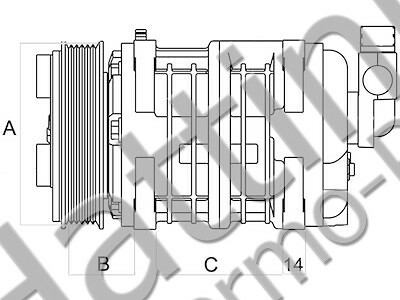

| Model | TM15XS |
|---|
| 147cc |
|---|
| POE 68 |
|---|
| 39,5 mm |
|---|
| 83,3 mm |
|---|
| TM15 |
|---|
| Z0006339C |
|---|
| 700-6000RPM |
|---|
| 6x |
|---|
| 104mm |
|---|
| 10,3mm |
|---|
| 4x |
|---|
| 150cc |
|---|
| R404a/R134a |
|---|
| Joining | Vertical |
|---|
| Joining typ | O-ring |
|---|

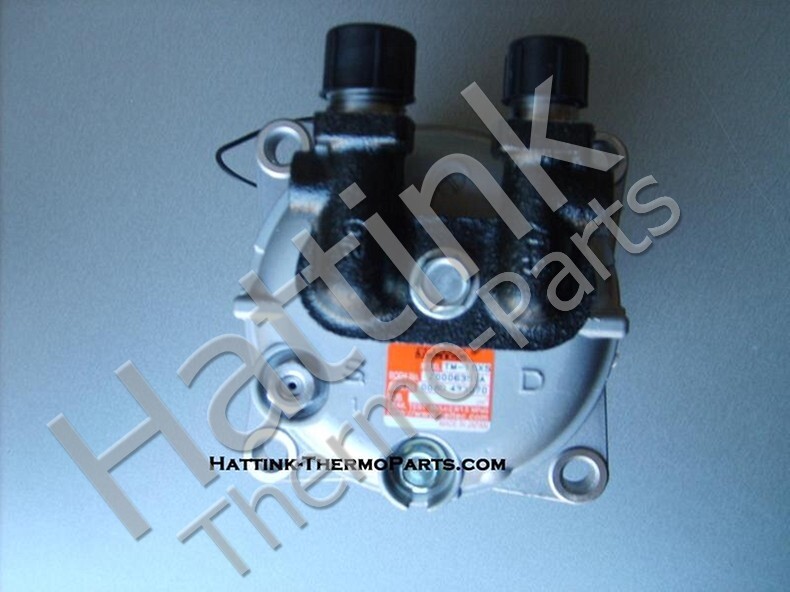

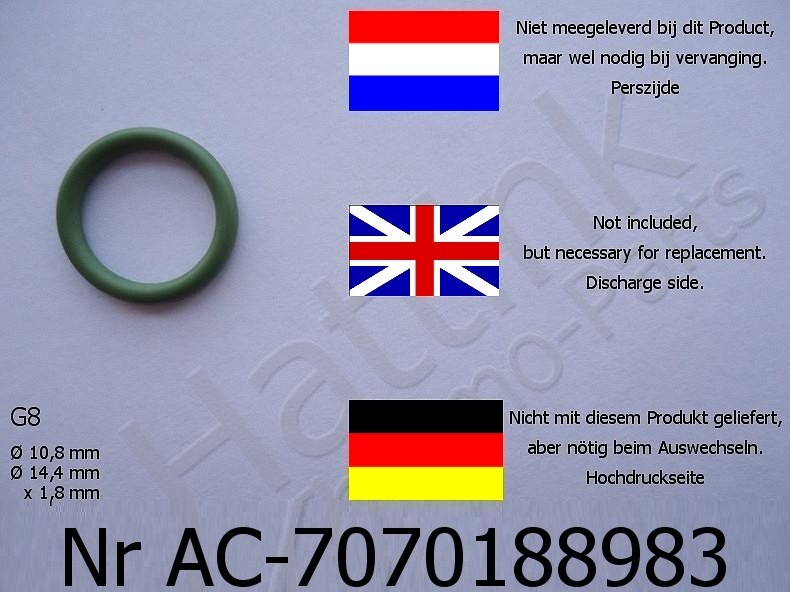

| Discharge fitting | (G8) 3/4" 16UNF |
|---|

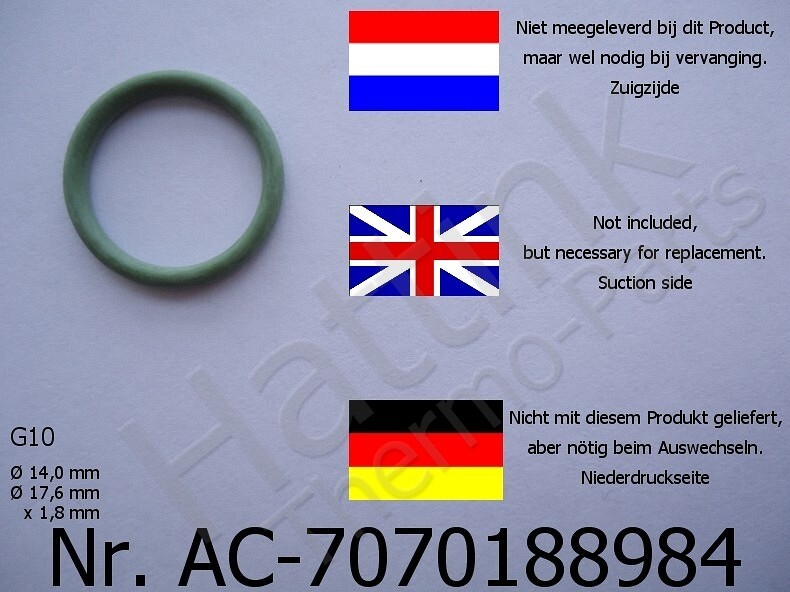

| Suction fitting | (G10) 7/8" 14UNF |
|---|

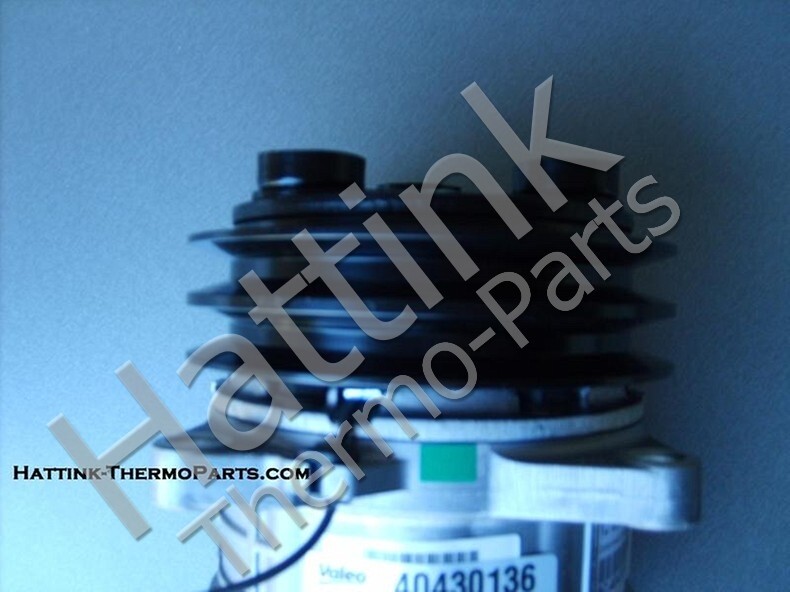

| Clutch Type | 3-eye |
|---|
| Pulley Diameter | 132mm |
|---|
| Number of grooves | 2Ax |
|---|
| 12,7mm |
|---|
| Voltage | 12V |
|---|
| 45W |
|---|
| 3,75A |
|---|

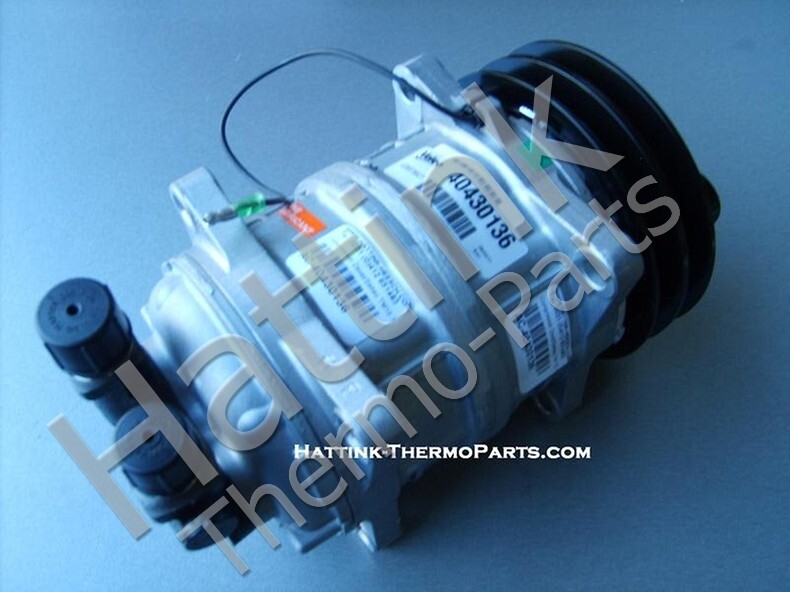

DescriptionTM15 XS OR Vertical 12V 5"1/4 2G A
Description on packing:
Valeo
R404A/452A
Made in Japan
Compressor Z0006339C
TM15
High Side 2.9 MPaG
Low Side 1.5 MPaG
Netto 7,5 kg
