This Compressor version
(TM15XS-TM15XD)
Always delivered without carter oil
Evt. the right oil when ordering
Compressor for low temperatures
for cooling Direct drive
such as Thermoking / Carrier
Frigosoft / Zanotti / Govet / Kerstner
Davia / Konvecta / Cibin / Webasto
also for cooling stand
Zexel / Tama / Valeo
Compressors 12V:
Description Air conditioning Compressor:

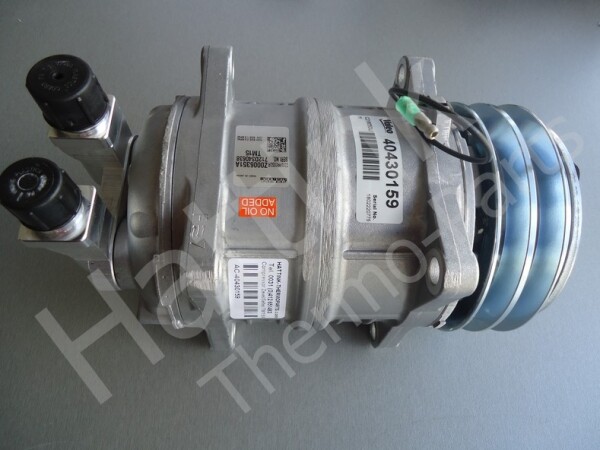

AC Compressor: TM15XS (TM15HD / HS)
Connection: O-ring
Clutch Type: 3-Eye
Voltage: 12V DC
Ø125 2x groove
Connection: Vertical
Compressor info:
Capacity: 147cc
Refrigerant: (XS) R404a
Refrigerant: (XS) R134a
No oil supplied
Possible oil on ordering see Photo
Oil quantity: 150 ml
Oil type from us see Photo

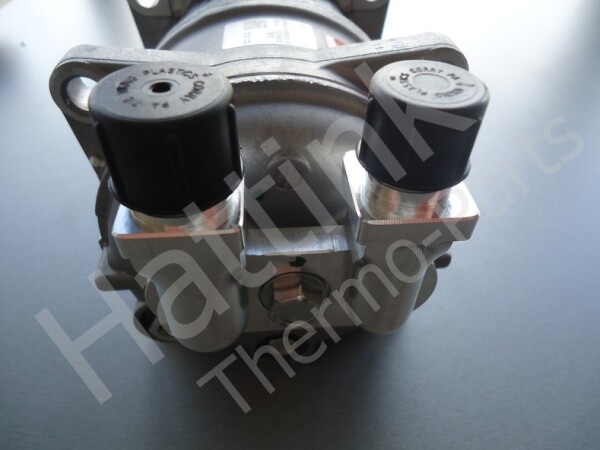

Connection Type: O-Ring
Coupling Suction: (G10) 7/8 "14UNF
Clutch Press: (G8) 3/4 "16UNF
Mounting: 4 mounting ears
with hole size Ø10.3
Heart size Hole / Hole 104mm
Cylinders: 6
Rotation: CW / CCW
Clutch / Cluts info:

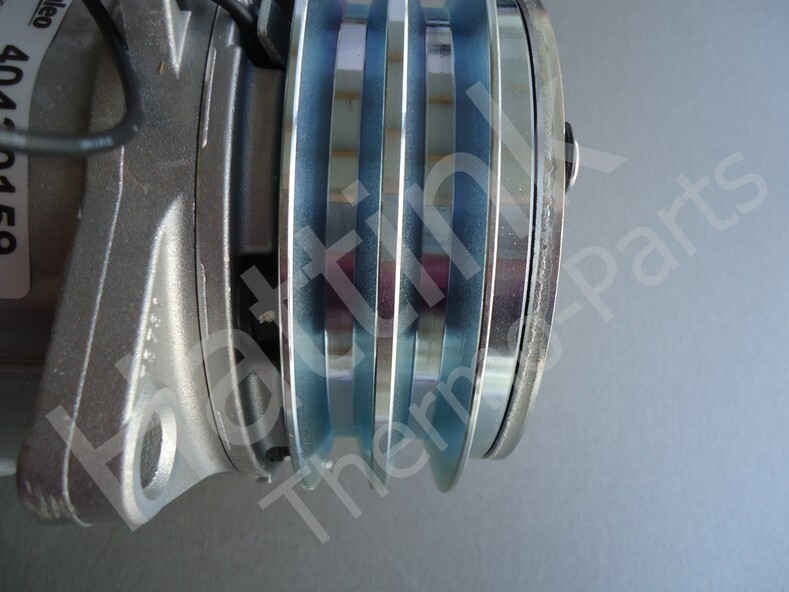

Pulley at groove: Ø 125mm
Voltage: 12V DC
Consumption: 45 Watt 3,75amp
Connection: 1x wire + side / Mass is Body
Number of grooves: 2 Type 2AG
Groove size: 12.7mm
Speed range: 700-6000 RPM
Compressor type:
Compressor type:
Seltec / Zexel TM15 XS (TM-15HD / HS)
Connection: O-ring
Housing type:
B (mm) 39.5 mm / B (mm) 46.5 mm
C (mm) 83.3 mm
Description on air conditioning pump:
Valeo 40430159
C216050U

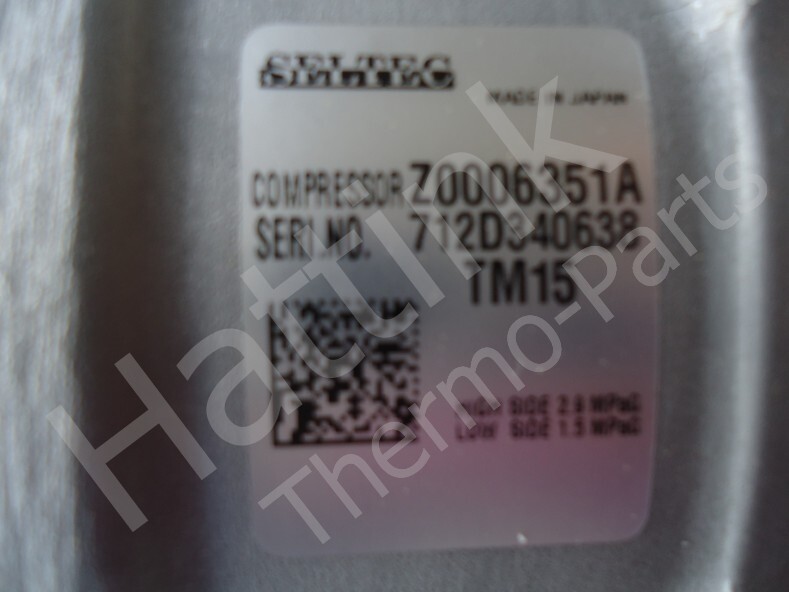

Seltec
Model TM-15XS
Compressor: Z0006351A
High Side: 2.9 MPaG
Low Side: 1,5 MPaG
Made in Japan
Netto 7,2 kg
OE no.
Examples and applications or
Names and article codes:
