`` Caution O-rings not supplied with
See photo's
Zexel / Tama / Valeo
Compressors 24V:
Description Air Compressor:
AC Compressor: TM15HS (TM15HD)
Connection: O-ring
Coupling type: 3-Eye
Voltage: 24V DC
Ø135 2xGroef A2
Connection: Vertical
Compressor info:
Capacity: 147cc
Refrigerant: (HS) R134A
Oil type: (HS) ZXL 100PG
Oil volume: 150 ml
Oil type of us see Photo
Connector Type: O-Ring
Suction coupling: (G10) 7/8 "14UNF
Clutch Press (G8) 3/4 "16UNF
Mounting: 4 mounting ears
with hole size Ø10,3
Heart size Hole / Hole 104mm
Cylinders: 6
Tightening torque bolts Compressor:
35N.m 93.5kgfm
Clutch / Cluts info:
Pulley with groove Ø 135mm
Voltage: 24V DC
Consumption: 45 Watts 1,88amp
Connection: 1x silk thread + / Body Mass is
Number of slots: 2 Type 2AG
Groove size: 12.7mm
Speed ??range: 700-6000 RPM

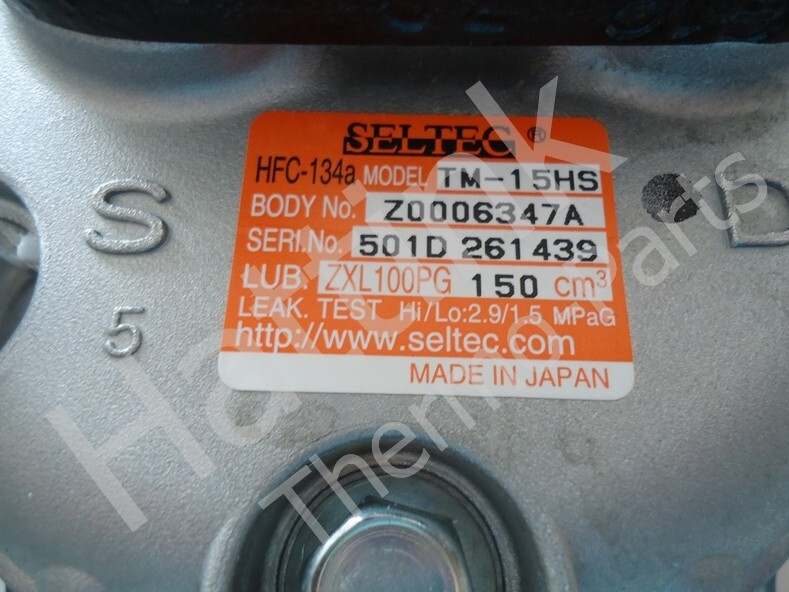

Description on Aircopomp:
Seltec
HFC134a Model TM-15hs
Body No.Z0006347A
LUB.ZXL100PG 150 CM³
LEAK.TEST Hi / Lo: 2.9 / 1.5 MPaG
Made in Japan
According to the rules art.SAE-J639
