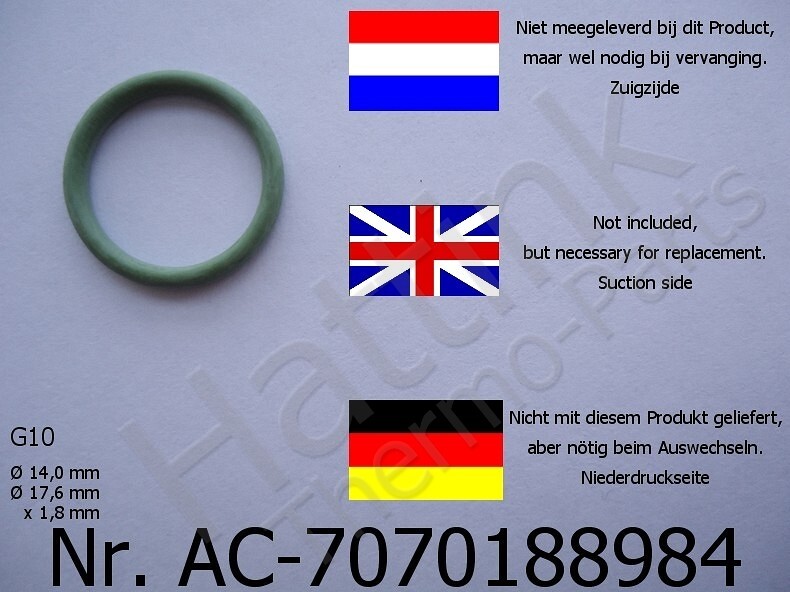

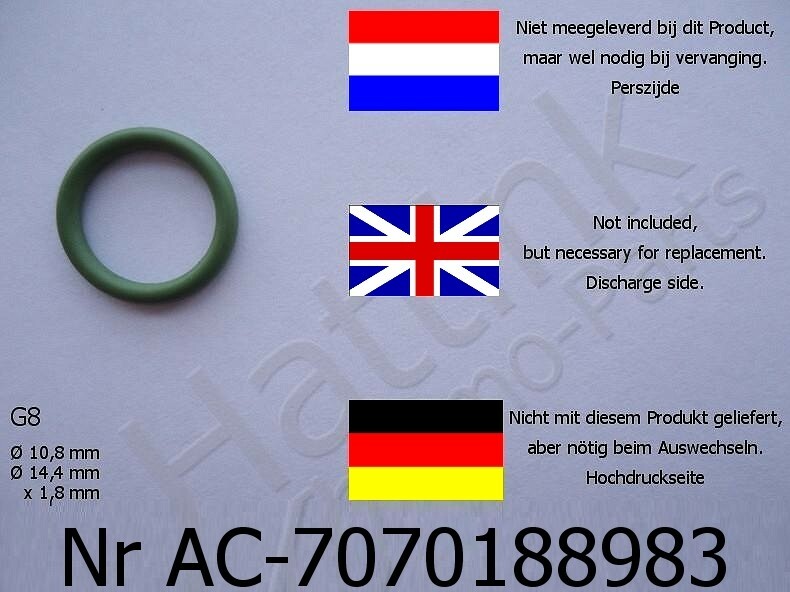

Pay attention to O-rings
Not included,

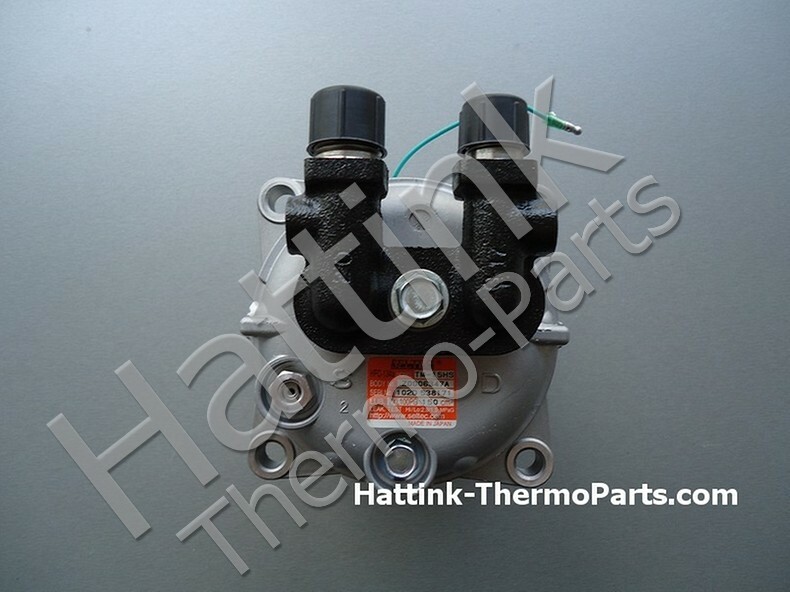

See photos
Zexel/Tama/Valeo
Compressors 24V:

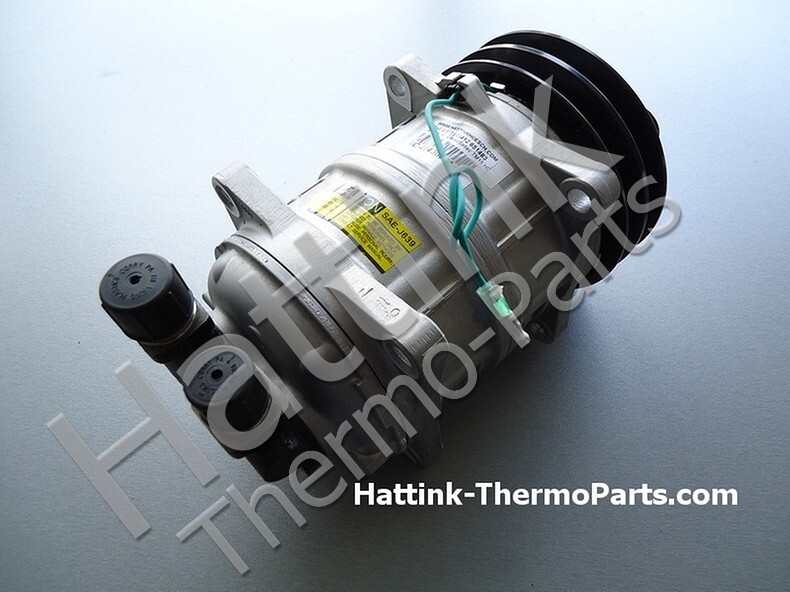

Description Air conditioning Compressor:
AC Compressor: TM15HS (TM15HD)
Connection: O-ring
Coupling Type: 3-Eye
Voltage: 24Volt DC
Ø132 2xGroove A2
Connection: Vertical
Compressor info:
Capacity: 147cc
Refrigerant: (HS) R134A
Oil type: (HS) ZXL 100PG
Quantity of oil: 150 ml

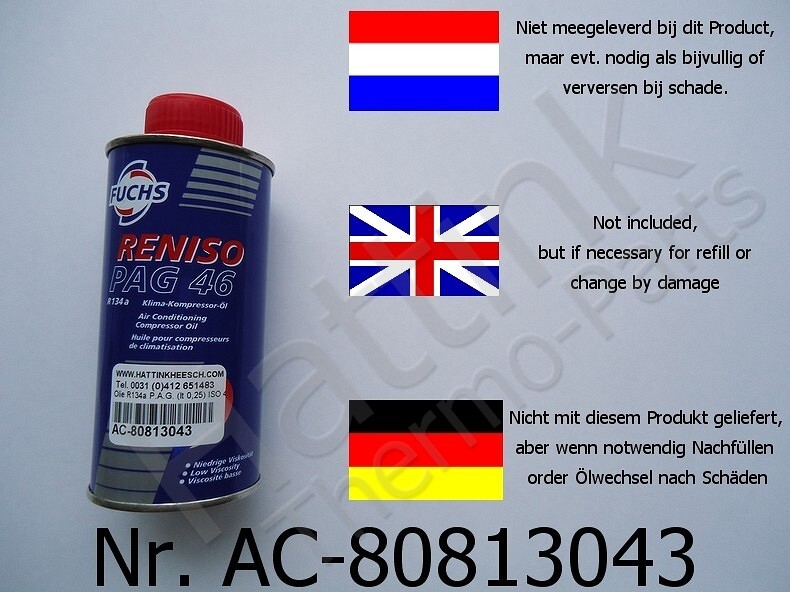

Oil type from us, see Photo
Connection Type: O-Ring
Coupling Suction:(G10) 7/8" 14UNF
Coupling Press:(G8) 3/4" 16UNF
Mounting: 4 mounting ears
with hole size Ø10.3
Heart size Hole/Hole 104mm
Cylinders: 6
Tightening torque of bolts Compressor:
35N.m 93.5kgfm
OE No. 240103017 / 3CMT104
Clutch/Cluts info:
Pulley at groove: Ø 132mm
Voltage: 24V DC
Consumption: 45 Watt 1.88amp

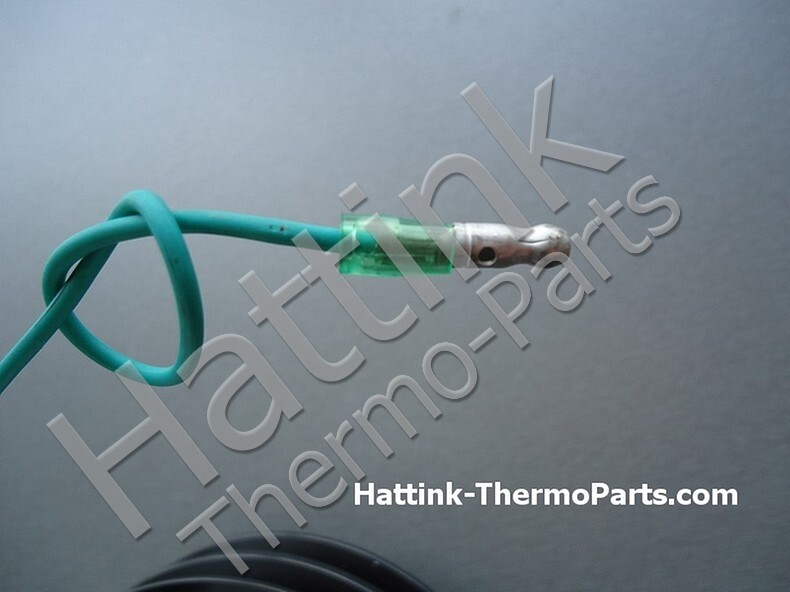

Connection: 1x wire + side / Ground is Body

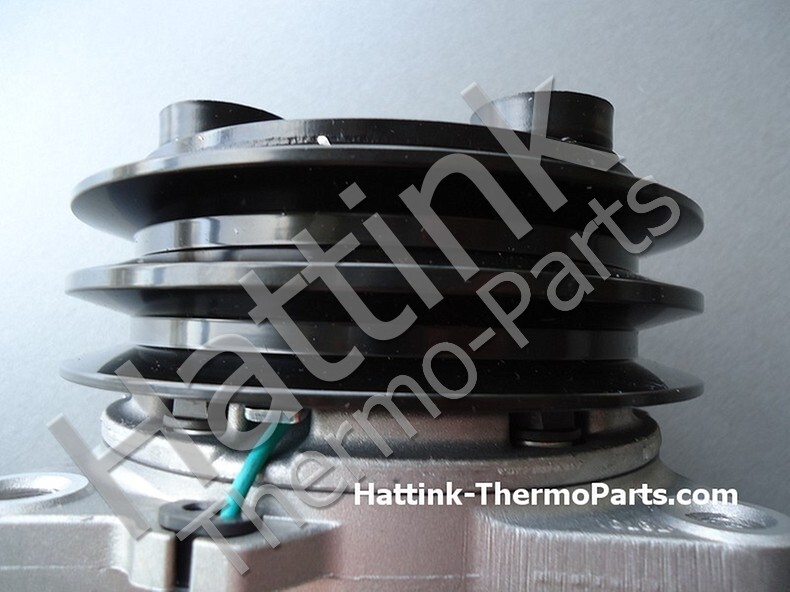

Number of grooves: 2 Type 2AG
Groove size: 12.7mm
Speed range: 700-6000 RPM
Compressor type:
Seltec/Zexel TM15 HS / TM-15HD
Connection: O-ring
Housing type:Z0006347A/T78287CA/Z0006337C

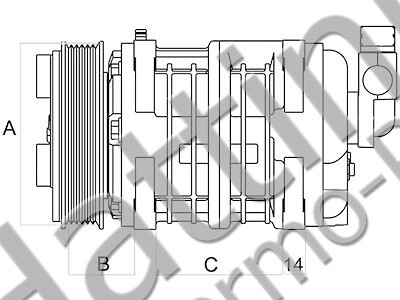

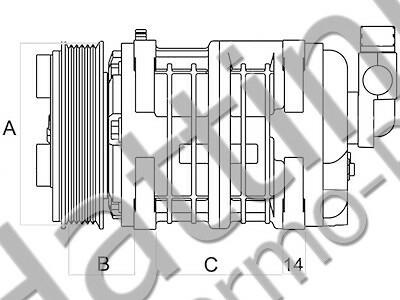

W (mm) 39.5mm
C (mm) 83.3mm

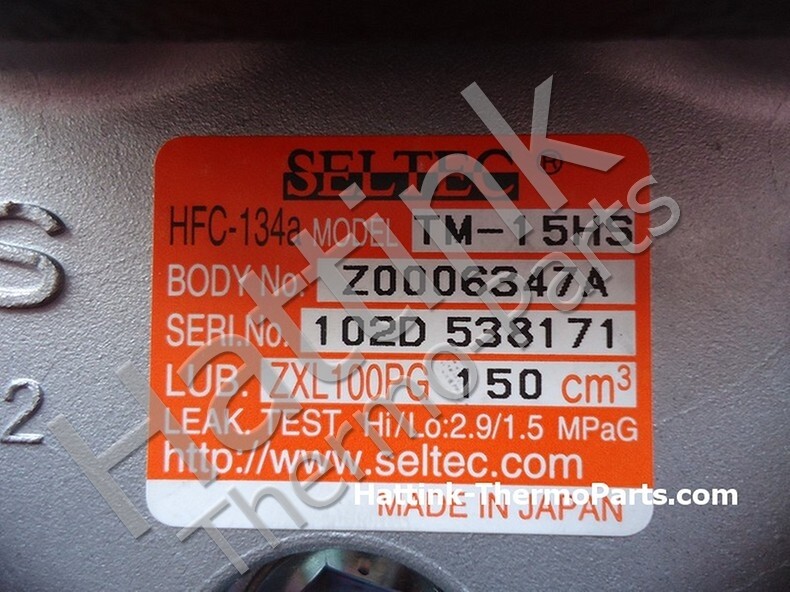

Description on Air conditioning pump:
Seltec
HFC134a Model TM-15HS
Body No.Z0006337C
LUB.ZXL100PG 150 CM³
LEAK.TEST Hi/Lo:2.9/1.5 MPaG
C216105B
Made in Japan
Net 7800 grams
According to the rules art.SAE-J639
OE No. 240103017 / 3CMT104
435-55011 / 488-45011 / 2521152
CO-6104CA / CO-6104C / CO6104C
N205434U / 240103017
TM15HS/TM15 HS/TM15-HS
TM 15HS/TM 15 HS/TM 15-HS
Zexel tm15/Zexel tm 15
Tama tm15/Tama tm 15
Seltec TM15 HS
40430011.1/404300111
C216105B/AC-C216105B
TM15HS/TM15 HS/TM15-HS
TM 15HS/TM 15 HS/TM 15-HS
Zexel tm15/Zexel tm 15
Tama tm15/Tama tm 15
Seltec TM15 HS
40430011.1/404300111
