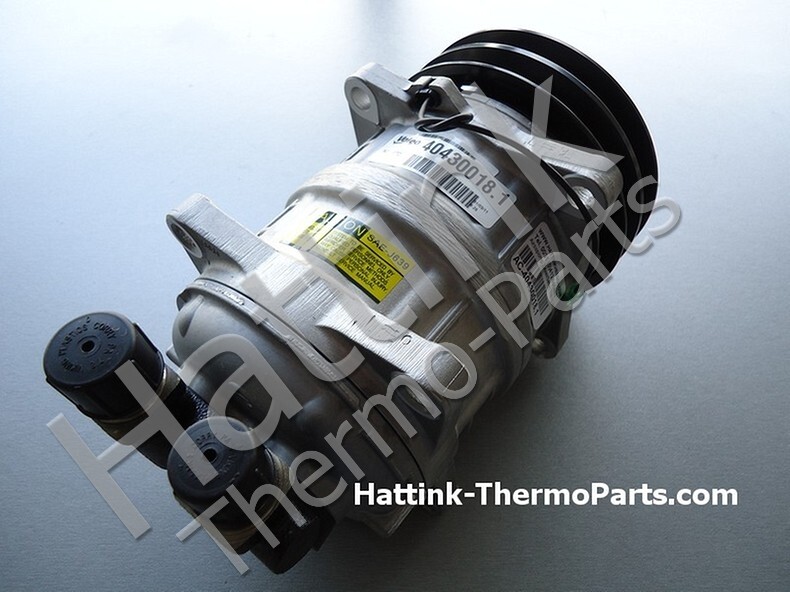

Description TM 15 HD OR Vertical 12V 5"1/4 2G A
Displacement 146,7 cc
Refrigerant R134a
Oil Type ZXL 100PG (or Equiv.)
Oil Quantity 150 cc

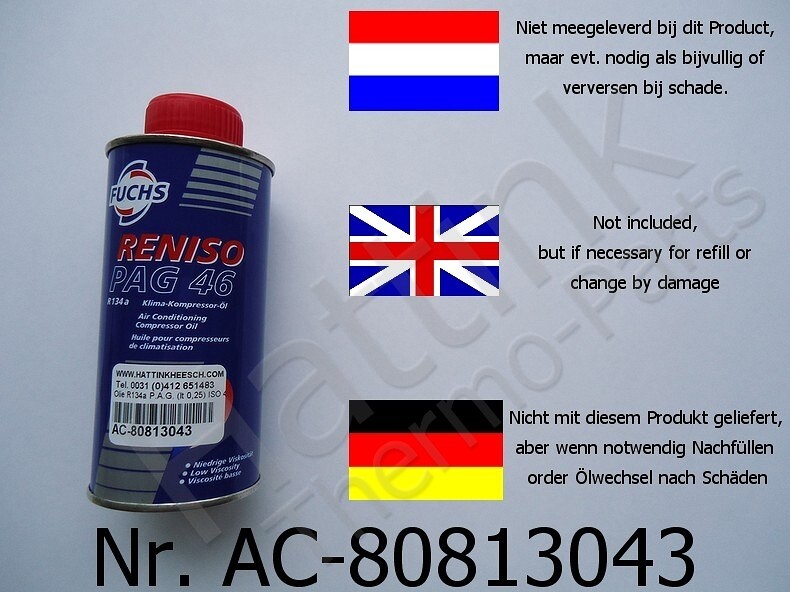

Autoclima Oil code 80813043

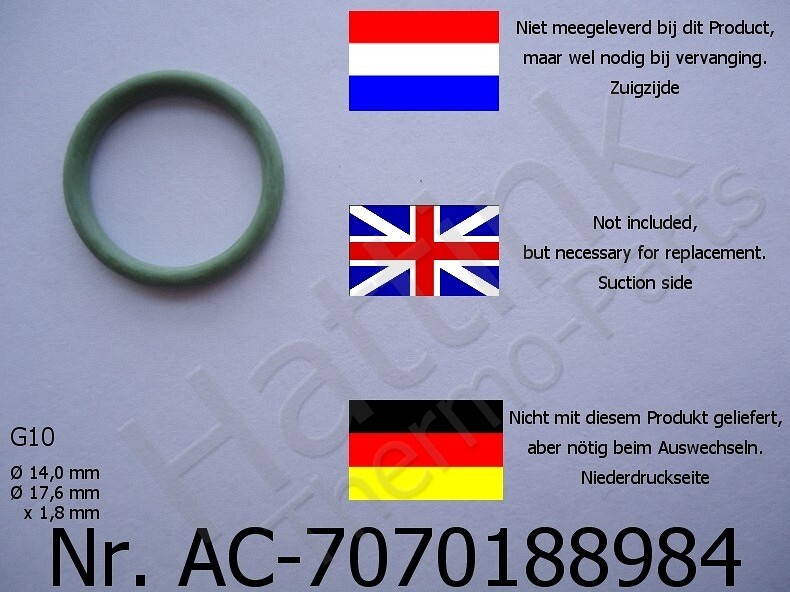

Suction fitting 7/8" 14UNF

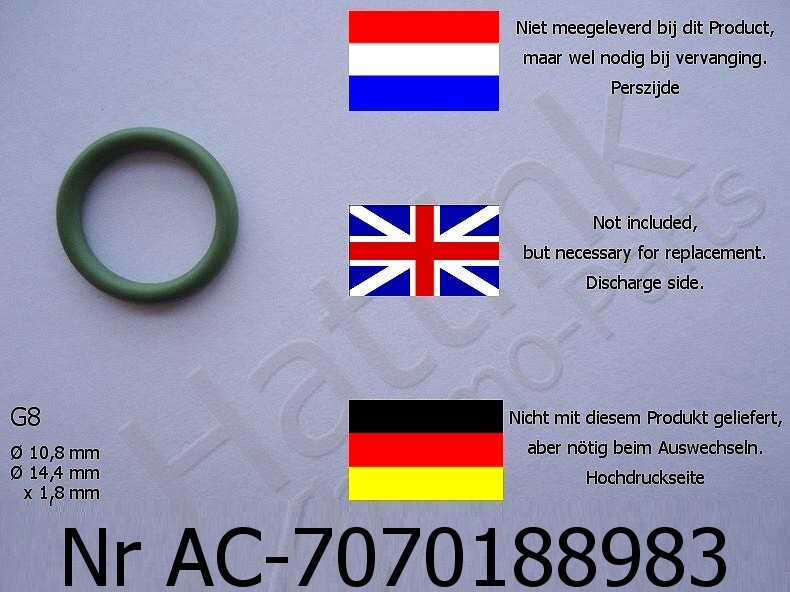

Discharge fitting 3/4" 16UNF

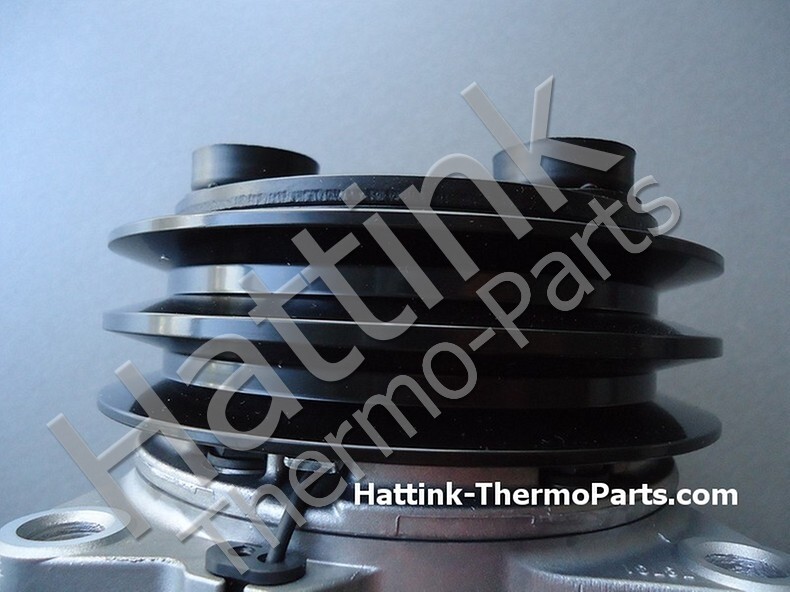

Pulley Diameter Ø 132 mm
Voltage 12V
Number of grooves 2 "A"
Section Groove 12,7 mm
Compressor Type Zexel TM15
Fittings OR V.

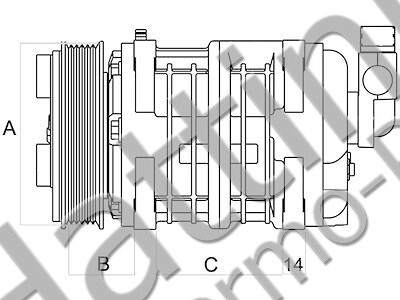

B (mm) 39,5 mm
C (mm) 83,3 mm
OE48845021 / 4K754 / 5006307830

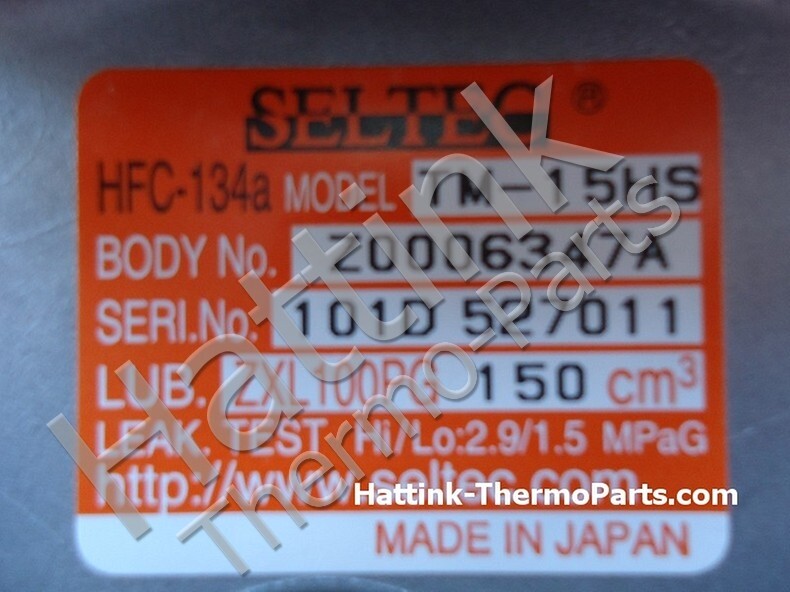

SELTEC

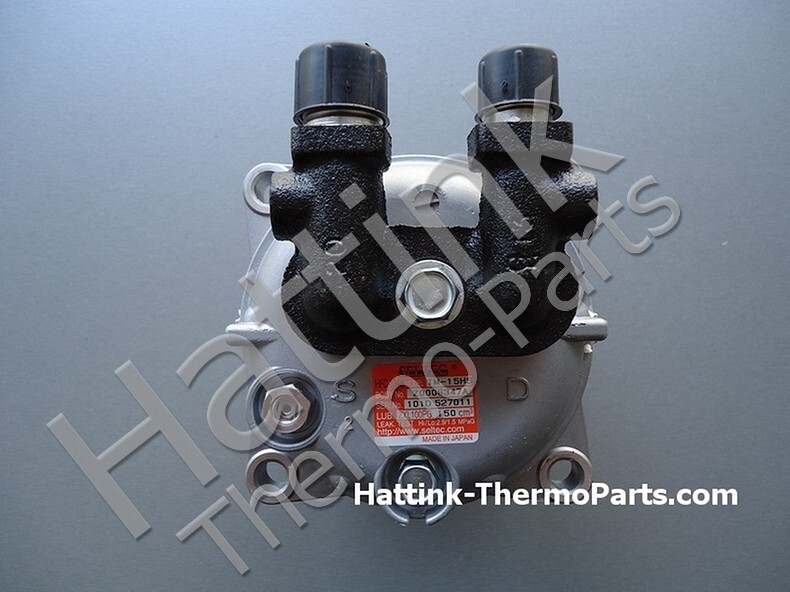

Model TM-15HS
Body No.Z0006347A
Valeo N204721J
Applications and Examples or
Names and product codes:
