Pay attention to O-rings
Not supplied,
See photo,
And a compressor is supplied without oil
you must separate this from the order below.
Zexel / Tama / Valeo
Compressors 24V:

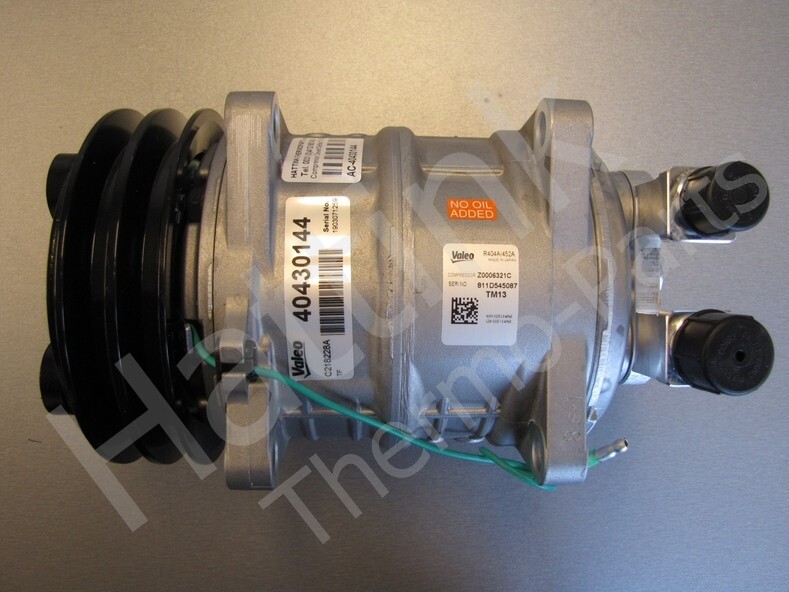

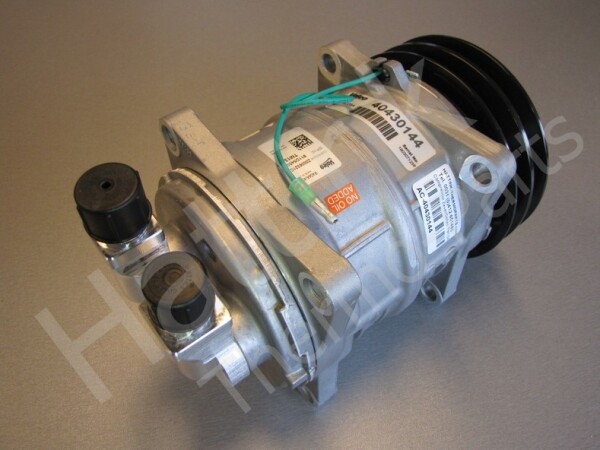

Description Air Compressor:
AC Compressor: TM13XS (TM13XD)
Connection: O-ring
Link Spring or Type: 3-Eye
Voltage: 24 Volt DC
Ø132 2x Groove A2
Connection: Vertical
Compressor info:
Capacity: 131cc
Refrigerant: (HS) R404a / R134A
Oil type: Delivered without oil br />
Quantity of oil: 150 ml for filling
Oil type from us see Photo
Connection Type: O-Ring

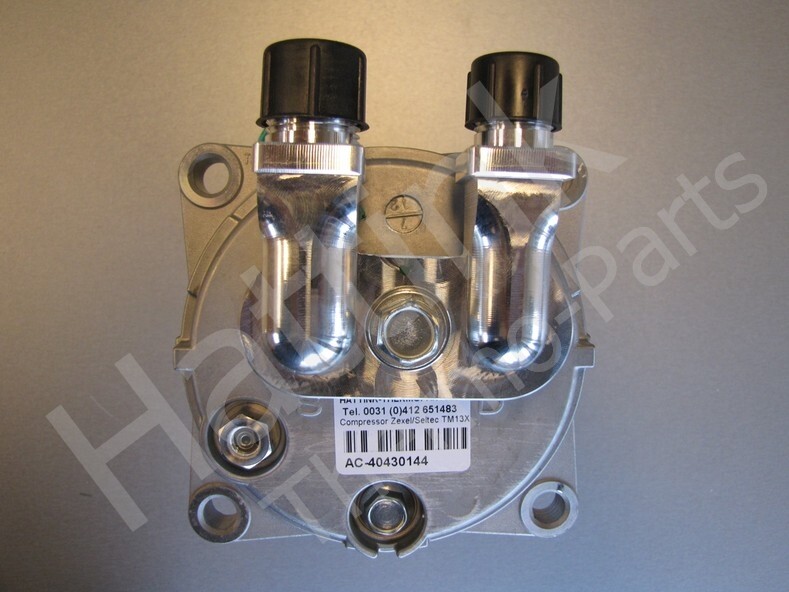

Coupling Suction: (G10) 7/8 "14UNF
Coupling Press: (G8) 3/4 "16UNF
Mounting: 4 mounting ears
with hole size Ø10.3
Heart size Hole / Hole 104mm
Cylinders: 6
Tightening torque bolts Compressor:
35N.m 93.5kgfm
OE No. 3CMT404
Link / Cluts info:

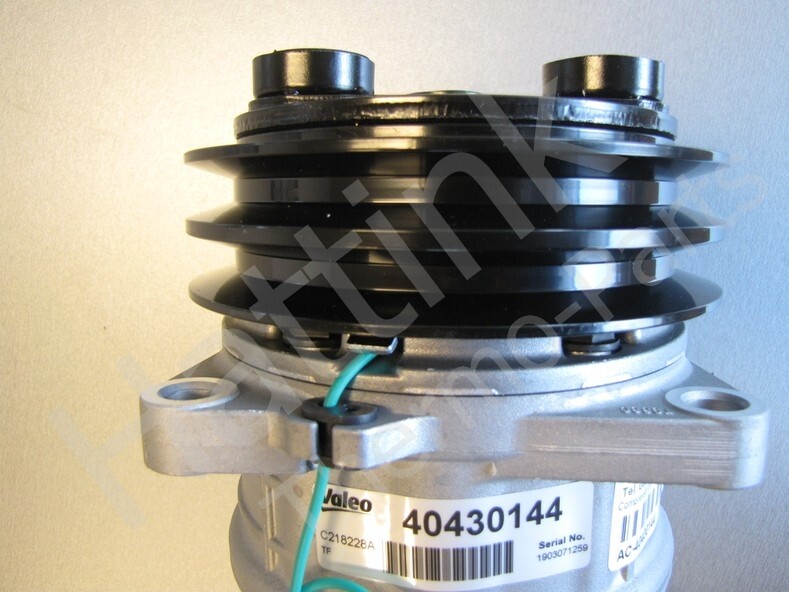

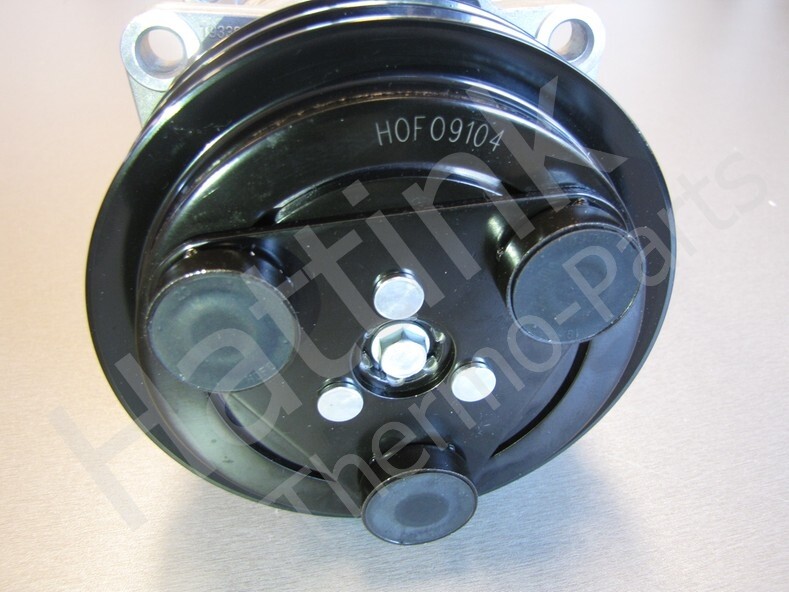

Pulley with groove: Ø 132mm
Voltage: 24V DC
Consumption: 45 Watt 1,88amp

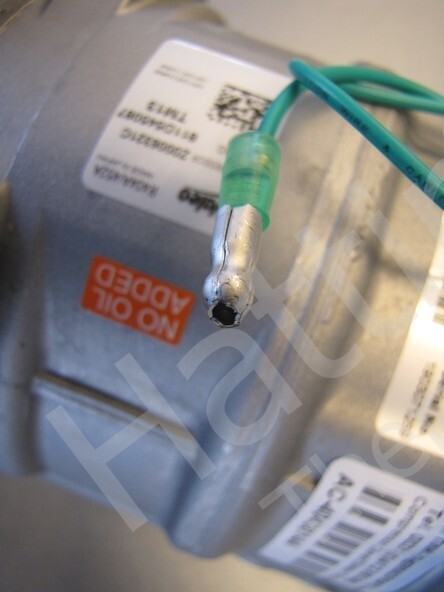

Connection: 1x thread + side / Mass is Body
Number of grooves: 2 Type 2AG
Groove size: 12.7 mm
Speed range: 700-6000 RPM
Compressor type:
Seltec / Zexel TM13 XS / TM-13XD
Connection: O-ring
Housing type:
B (mm) 39.5 mm
C (mm) 83.3 mm
Description on air conditioning pump:
Seltec
HFCr404A / 134a Model TM-13XS
Body No.
LUB.ZXL100PG .... CM³
LEAK.TEST Hi / Lo: 2.9 / 1.5 MPaG
Made in Japan
Net ...... grams
According to the rules of art.SAE-J639
OE No. 3CMT404
OE Valeo 40430144
TM13XS / TM13 XS / TM13-XS
TM 13 XS / TM 15 XS / TM 13-XD
Zexel tm13 / Zexel tm 13
Tama to 13 / Tama to 13
Seltec TM13 XS
AC40430144 / AC-40430144
