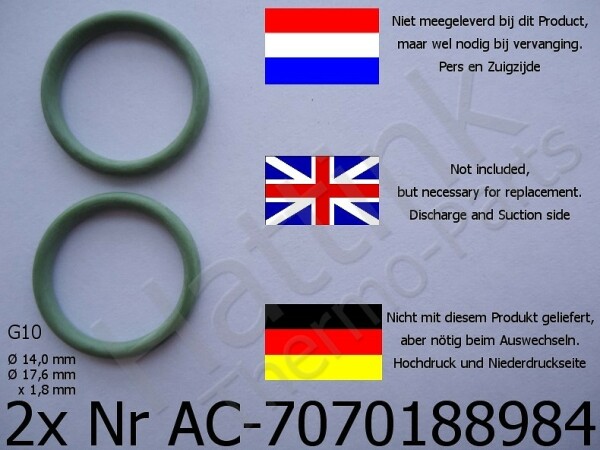

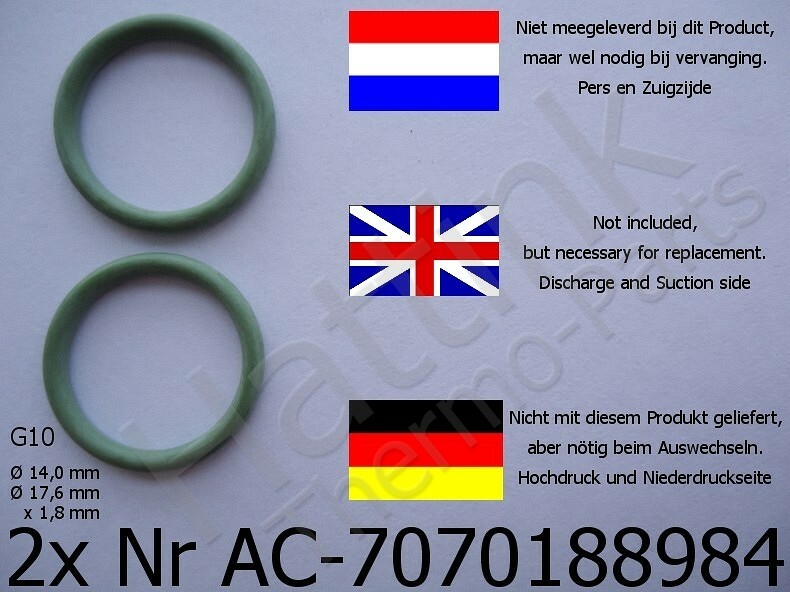

Pay attention to O-rings
Not included,
See photos
Zexel/Tama/Valeo
Compressors 12V:
Description Air conditioning Compressor:
AC Compressor Seltec TM13 HS
Connection:
Rotolock / Rotalock O-ring
Coupling 12V Poly-V 8 3Eye
Horizontal connection
Zexel/Tama/Valeo Compressor info:
Capacity/stroke volume: 131cc
Refrigerant: R134A
Oil type: ZXL 100PG (or Equiv.)
Oil quantity: 150cc

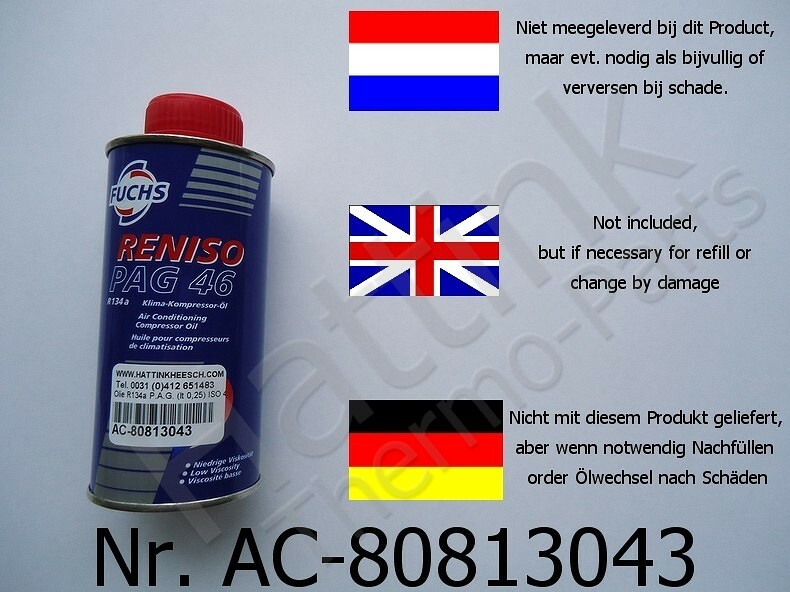

Oil type from us, see Photo
Connection Type: Rotolock
Coupling Suction: 1" 14UNS
Coupling Press: 1" 14UNS
Pulley at groove: Ø 119 mm
Pulley at side edge: Ø 122.8 mm
Voltage: 12V
Number of grooves: 8 Poly-V
Groove diameter: 3.56mm
www.Hattink-ThermoParts.com
Compressor type:
Seltec/Zexel TM13HS / TM-13HD
Connection Rotolock O-ring
Housing type:Z0006329A

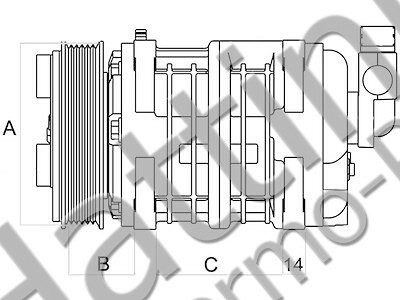

W (mm) 46.5mm
C (mm) 83.3mm
Valeo N204824A
According to the rules art.SAE-J639
OE No. 3CMP785
Pump air conditioning/AC pump/Air conditioning compressor
Celtec/Zeltec/Seltek/Zeltek/Sexel

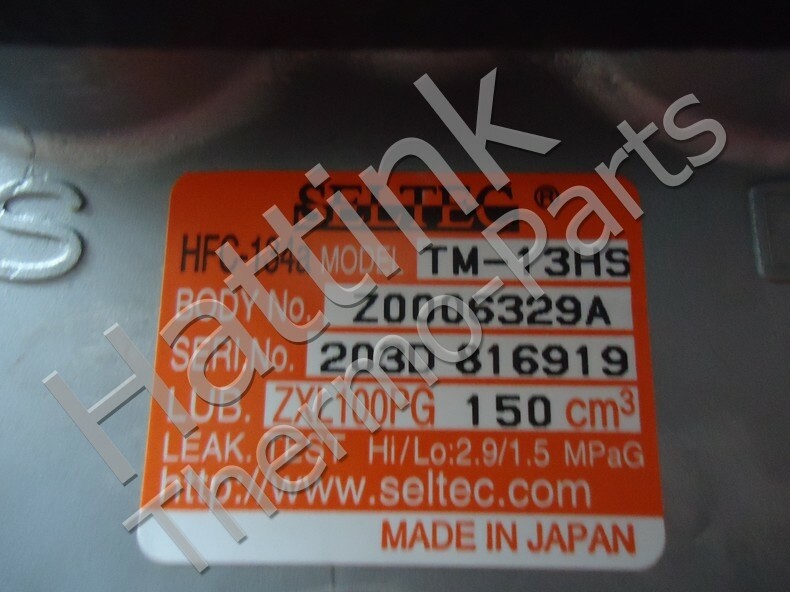

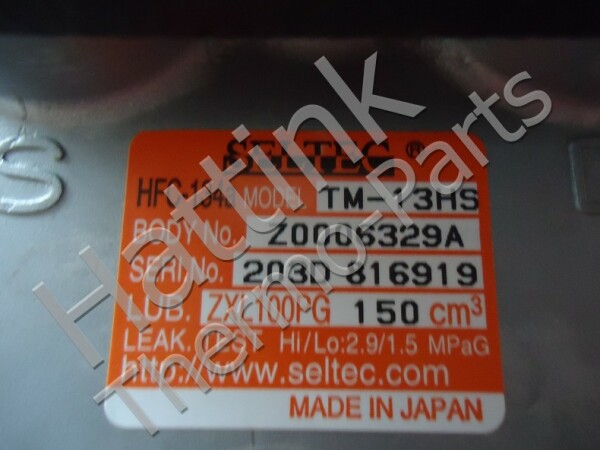

Description on item:
TM13 ZXL/ TM13ZXL
Valeo / N204824A / SAE-J639 / B2/ T9430
17 / 2 / 3 / SELTEC / HFC-134a / G312E0019
BODY No. ZOOO6329A / LUB. ZXL100PG 150cm³
LEAK. TEST Hi/Lo:2.9/1.5 MPaG / 16
Made in Japan
7.1kg
