Seltec Compressor
TM 13 HD OR Vertical 12V Poly-V 8
Displacement 131 cc
Refrigerant R134a
Oil TypeZXL 100PG (or Equiv.)
Oil Quantity 150 cc

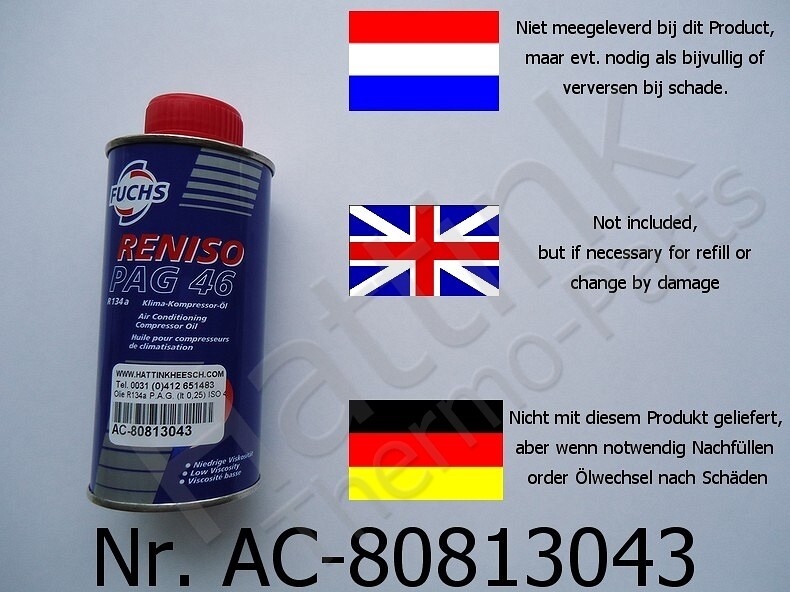

Autoclima Oil code AC-808'13043
Suction fitting 7/8" 14UNF
Discharge fitting 3/4" 16UNF
Pulley Diameter Ø 119 mm
Voltage 12V
Number of grooves 8 Poly-V
Section Groove 3,56 mm
Compressor TypeZexel TM13
Fittings OR V.

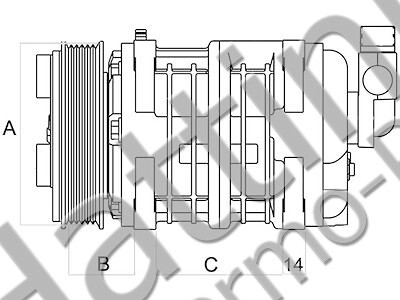

B (mm) 60,8 mm
C (mm) 83 mm
Mod. builder-
Valeo 204832G
Description on Article:
Valeo / N204832G / SAE-J639 / M2 / T9430
3 2 1 / S / D / HOFO / G302EO127 / 21
SELTEC / HFC-134a / MODEL: TM-13HS
BODY No. ZOOO6329A / LUB. ZXL100PG 150cm³
LEAK. TEST Hi/Lo:2.9/1.5 MPaG
Made in Japan
Applications and Examples or
Names and product codes:
