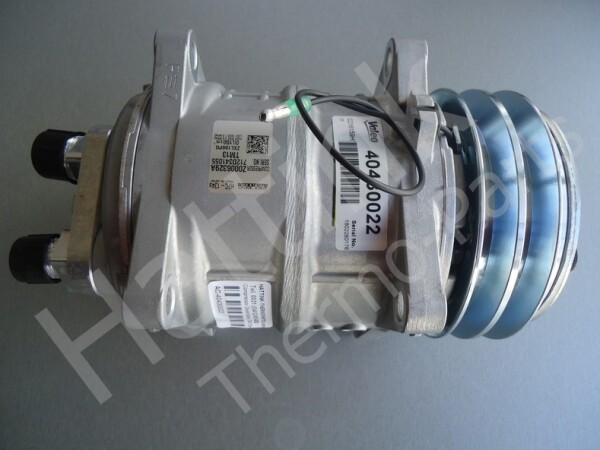

Description TM 13 HS OR Horizontal 12V Ø125mm (5"1/4) 2A
Displacement 131 cc
N° Cylindres 6
Refrigerant R134a
Oil Type ZXL 100PG (or Equiv.)
Oil Quantity 150 cc
RPM Max. 6000 r.p.m.
Installation position ± 45°
Rotation Clockwise

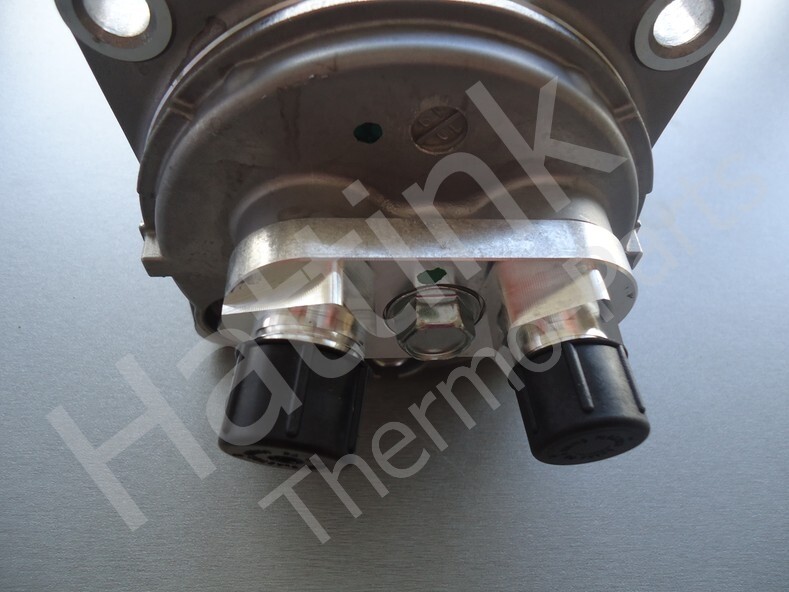

Suction fitting :(G10) 7/8" 14UNF
Discharge fitting :(G8) 3/4" 16UNF

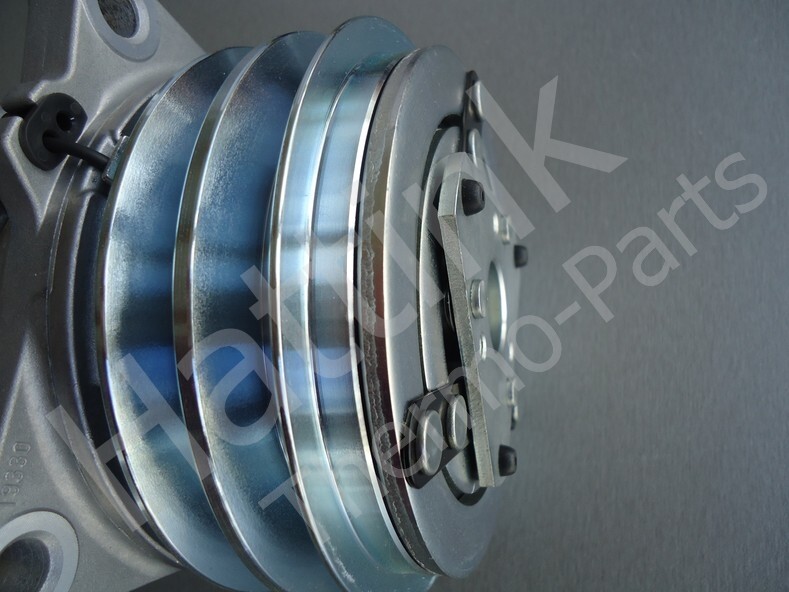

Pulley Diameter Ø125mm (5"1/4)
Voltage 12V
Number of grooves 2 "A"
Section Groove (S) 12,7 mm
Compressor TypeZexel TM13
Fittings O.Ring
B (mm) 53,9 mm
C (mm) 83 mm
Seltec

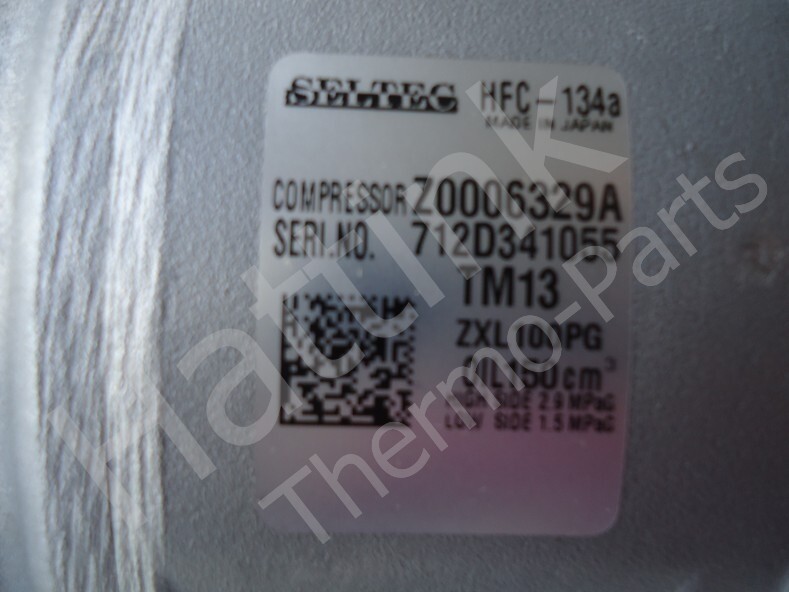

Description on Article:
Seltec
Made in Japan
HFC-134a
Compressor Z0006329A
Serienr.
TM13
ZXL100PG
Oil 150CM³
High Side 2,9 MPaG
Low Side 1,5 MPaG
Netto 7 Kg.
Applications and Examples or
Names and product codes:
