This Compressor version
(TM16XS-TM16XD)
Always delivered without crankcase oil
Possibly. loose the correct oil when ordering
Compressor for low temperatures
for refrigeration Direct drive
such as Thermoking / Carrier
Frigosoft / Zanotti / Govet / Kerstner
Davia / Konvecta / Cibin / Webasto
Zexel / Tama / Valeo
Compressors 24 Volt:

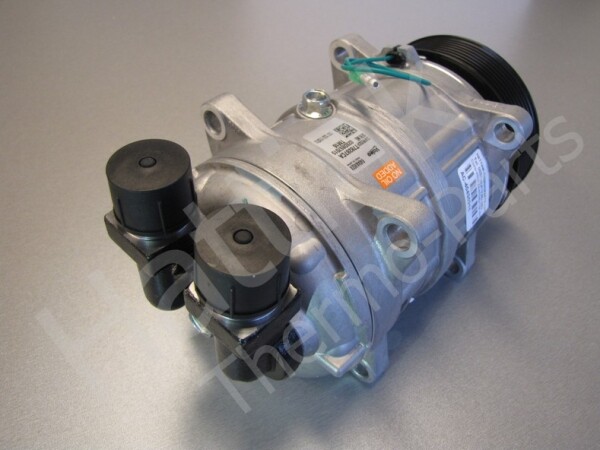

Description Airco Compressor:
AC Compressor: TM16XS (TM16HS)
Connection:
Rotolock / Rotalock O-ring
Coupling Type: 3-Eye
Voltage: 24V DC
Ø119 mm Poly-v 8
Connection: Vertical
Compressor info:
Capacity: 163cc
Refrigerant: R134A
Refrigerant: R404a
Oil type: Supplied without oil
Amount of oil:
Oil type from us see Photo

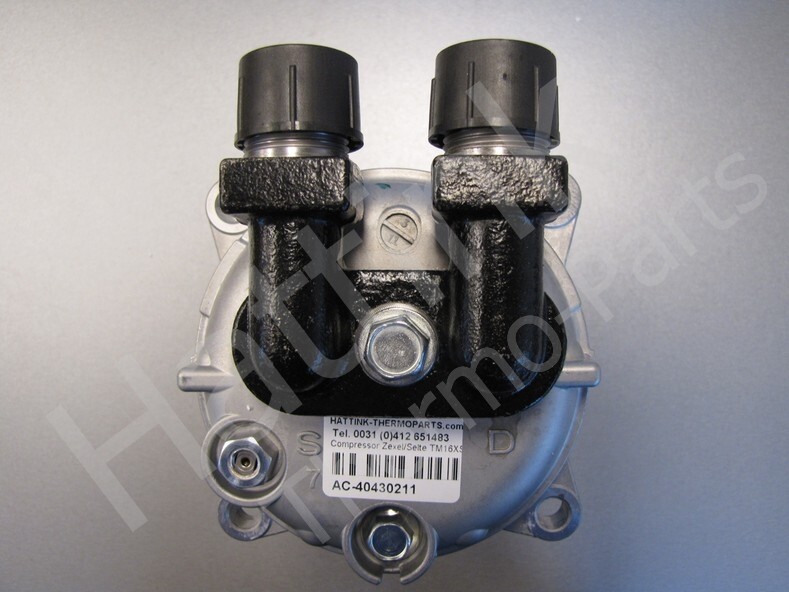

Connection Type: Rotalock O-Ring
Coupling Suction: (G10) 7/8 "1" 14UNS
Clutch Press: (G10) 7/8 "1" 14UNS
Assembly: 4 mounting ears
with hole size Ø10.3
Heart size Hole / Hole 104mm
Cylinders: 6
Rotation: CW / CCW

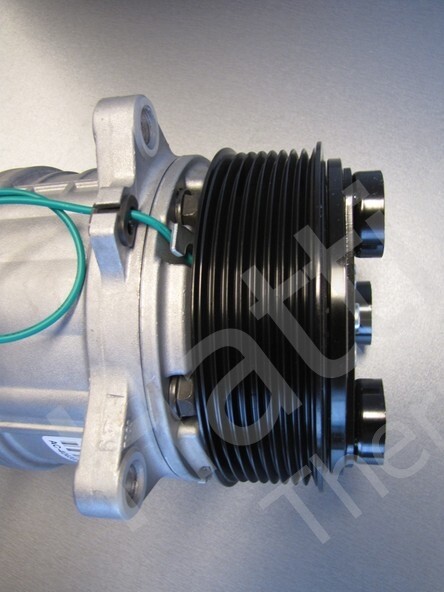

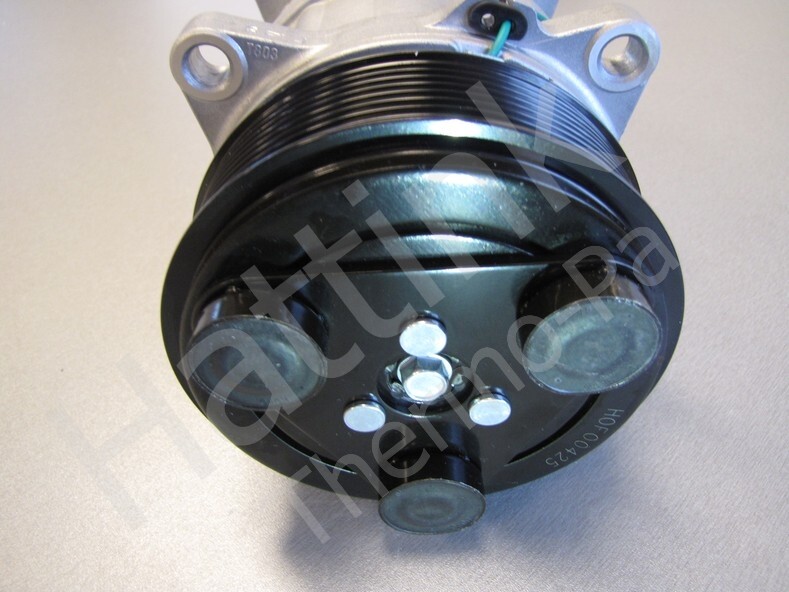

Clutch / Cluts info:
Pulley at groove: Ø 119 mm
Pulley at side edge: Ø 122.8 mm
Voltage: 24V DC
Consumption: 45 Watt 1.88amp

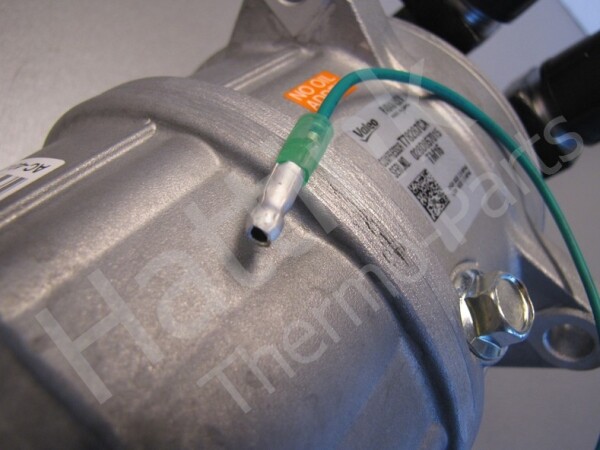

Connection: 1x wire + silk / Mass is Body
Number of grooves: 8 Type Poly-V 8
Groove size: 3.56mm
Speed range: 700-6000 RPM
Compressor type:
Seltec / Zexel TM16 XS / TM-16HS TM-16HD
Connection: Rotalock O-ring
Housing type: Z0006401
B (mm) 46.5 mm
C (mm) 83.3 mm

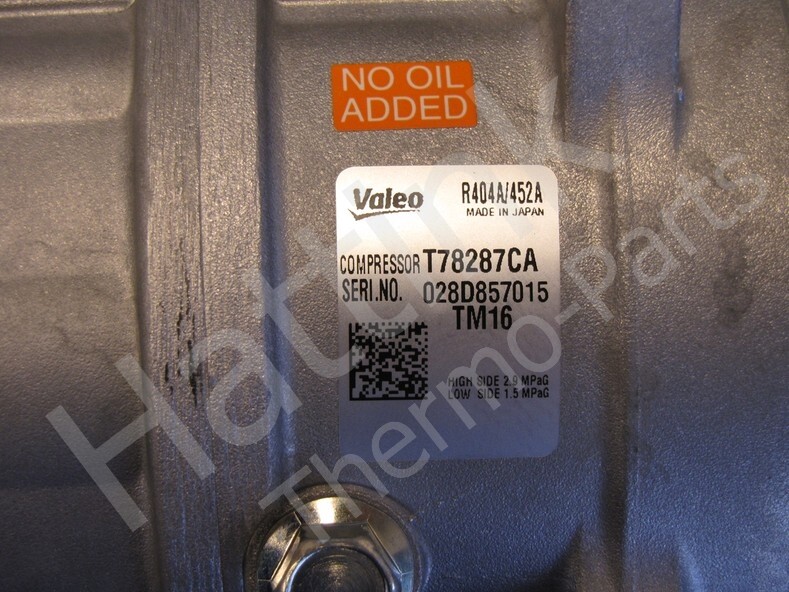

Description on Aircopomp:
Compr TM16 XS REF 24V Poly V8
R404A/452A
Seltec
Model TM-16XS
T78287CA
Made in Japan
According to the rules art.SAE-J639
OE no.
Pump AC / AC Pump / AC Compressor
Celtec / Zeltec / Seltek / Zeltek / Sexel
www.autoclima-parts.nl
www.Hattink-ThermoParts.com
Not supplied with this product, but required for replacement:
O-ring Pers G10
O-ring Pers G10
Olie PAG 46
Applications and Examples or
Names and product codes:
