This Compressor version
(TM16XS-TM16XD)
Will always be delivered without carter oil
Possibly. Leave the right oil when ordered
Low Temperature Compressor
for refrigeration direct drive
such as Thermoking / Carrier
Frigosoft / Zanotti / Govet / Santa
Davia / Konvecta / Cibin / Webasto
Zexel / Tama / Valeo

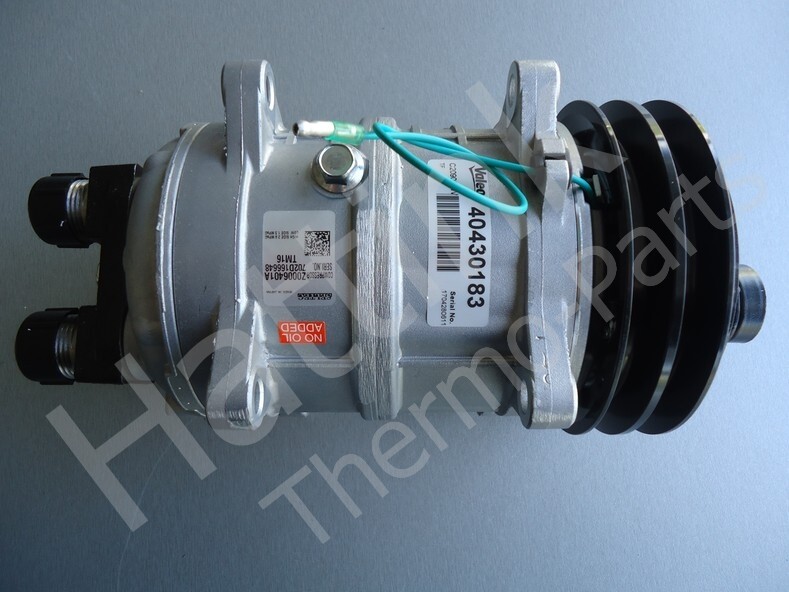

The compressor 24Volt:
Description Air Compressor:
AC Compressor: TM16XS (TM16HS)
Connection:
Rotolock / Rotalock O-ring
Coupling Type: 3-Eye
Voltage: 24V DC
Ø135mm 2A
Connection: Horizontal
Compressor info:
Capacity: 163cc
Refrigerant: R134A
Refrigerant: R404a
Oil type: Delivered without oil
Quantity of oil:
Oil type of us see Photo

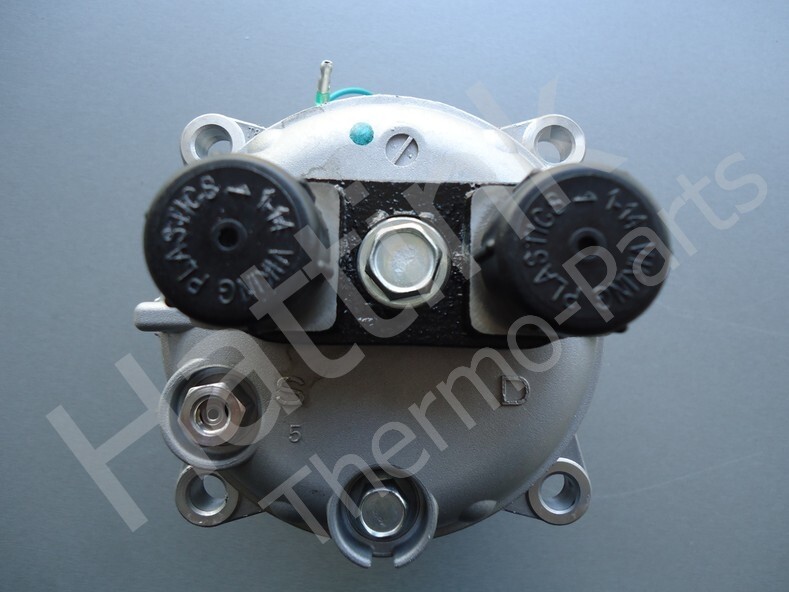

Connection Type: Rotalock O-Ring
Coupling suction: (G10) 7/8 "1" 14UNS
Coupling Press: (G10) 7/8 "1" 14UNS
Mounting: 4 mounting ears
with hole size Ø10,3
Heart size Hole / Hole 104mm
Cylinders: 6
Rotation: CW / CCW

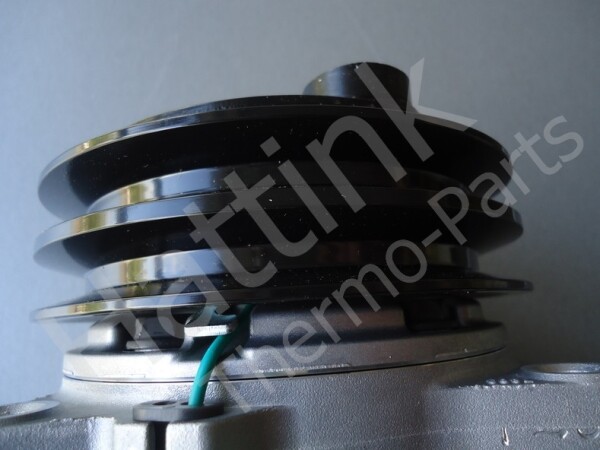

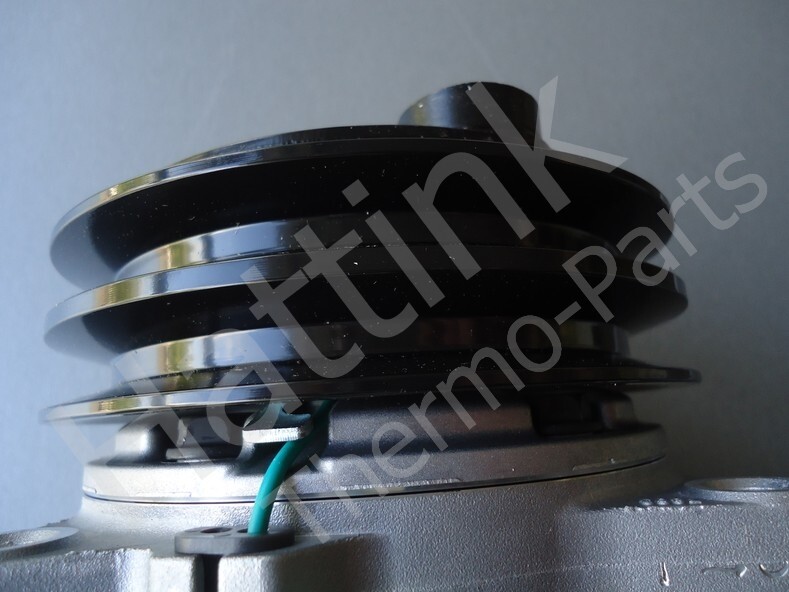

Link / Cluts info:
Pulley at groove: Ø 119 mm
Pulley at side edge: Ø 122.8 mm
Voltage: 24V DC
Consumption: 45 Watts 1.88amp
Connection: 1x wire + silk / Mass is Body
Number of grooves: 2 Type A2
Groove size: 3.56mm
Tours range: 700-6000 RPM
www.Hattink-ThermoParts.com
Compressor type:
Seltec / Zexel TM16 XS / TM-16XD
Connection: Rotalock O-ring
Housing Type: Z0006401
B (mm) 46.5 mm
C (mm) 83.3 mm

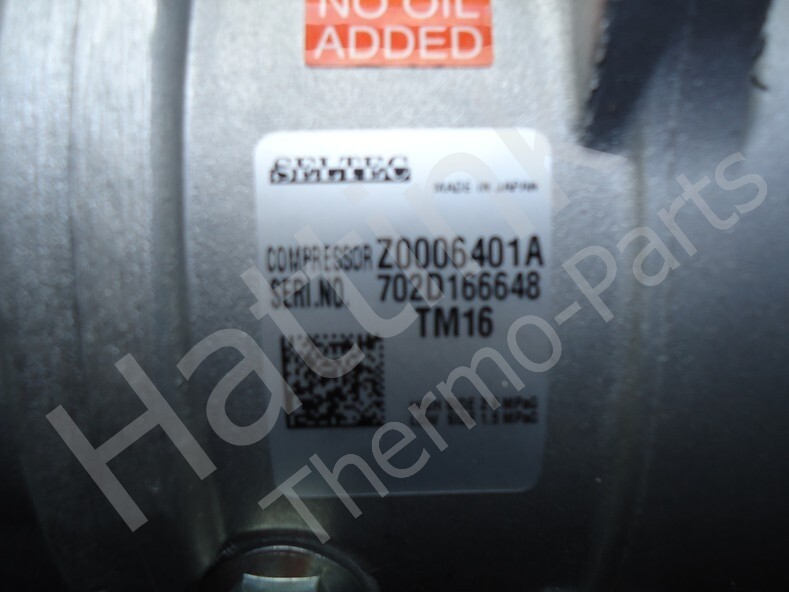

Description on Aircompomp:
Seltec
Model TM-16XS
Body No.Z0006401A
LUB. CM³
LEAK.TEST Hi / Lo: 2.9 / 1.5 MPaG
Made in Japan
According to the rules art.SAE-J639
OE No.
Pumpairco / ACPomp / Air Compressor
Celtec / Zeltec / Seltek / Zeltek / Sex
www.autoclima-parts.nl
www.Hattink-ThermoParts.com
Not included with this product, but required for replacement:
O-ring Press G10 AC-707 . 0188984
O-ring Press G10 AC-707 . 0188984
Oil PAG 46 AC-808 . 13043
