For cooling Direct drive
such as Thermoking/Carrier
Frigosoft/Zanotti/Govet/Kerstner
Davia/Konvecta/Cibin/Webasto

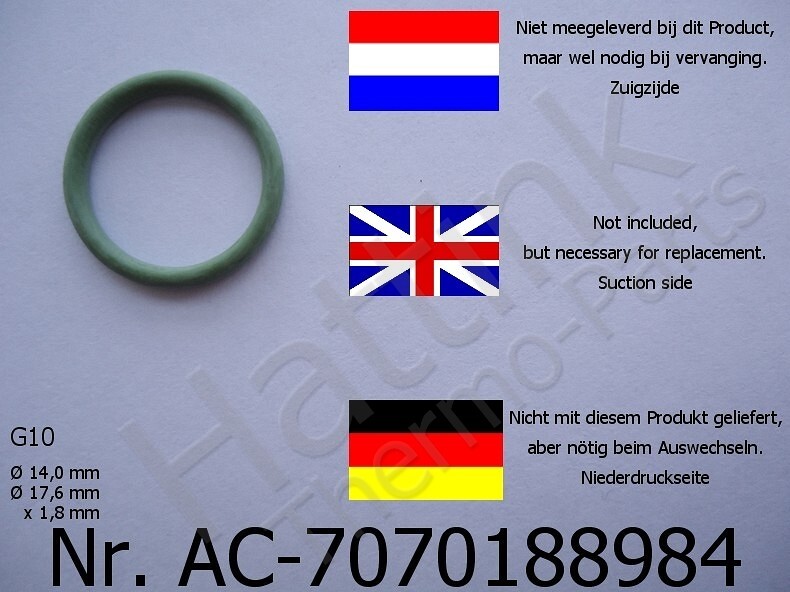

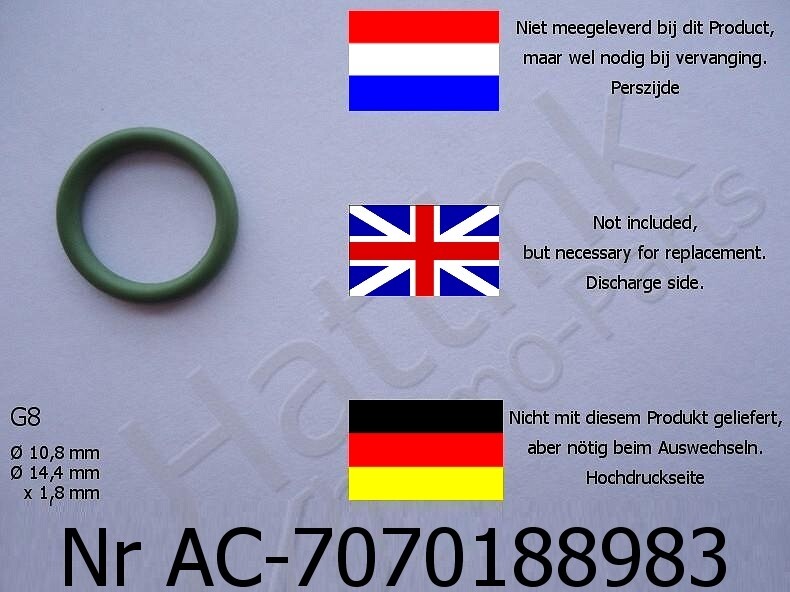

Attention!!! No oil supplied in compressor
and O-rings too
Not supplied,
See photos
Zexel/Tama/Valeo
Compressors 24V:

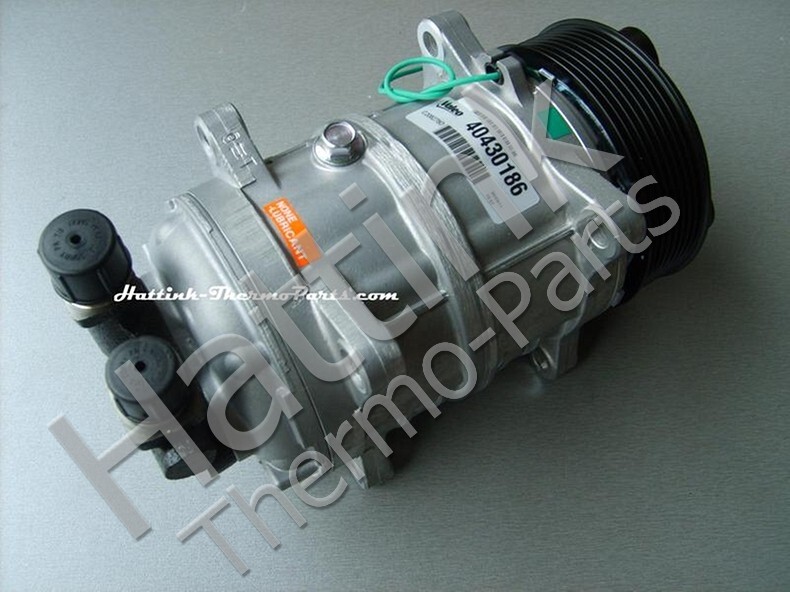

Description Airco Compressor:
AC Compressor:TM16XS TM16HS (TM16HD)
Connection: O-ring
Coupling Type: 3-Eye
Voltage: 24V DC
Ø119 mm Poly-v 8
Connection: Vertical
Compressor info:
Capacity: 163cc
Refrigerant: R404a - R452a
Oil type: Supplied without oil
Amount of oil: 180 ml

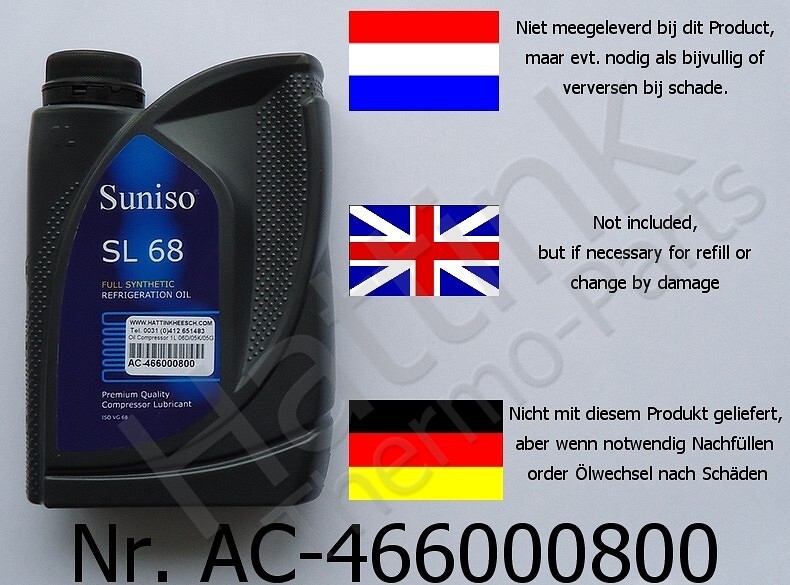

Oil type POE 68 from us see Photo

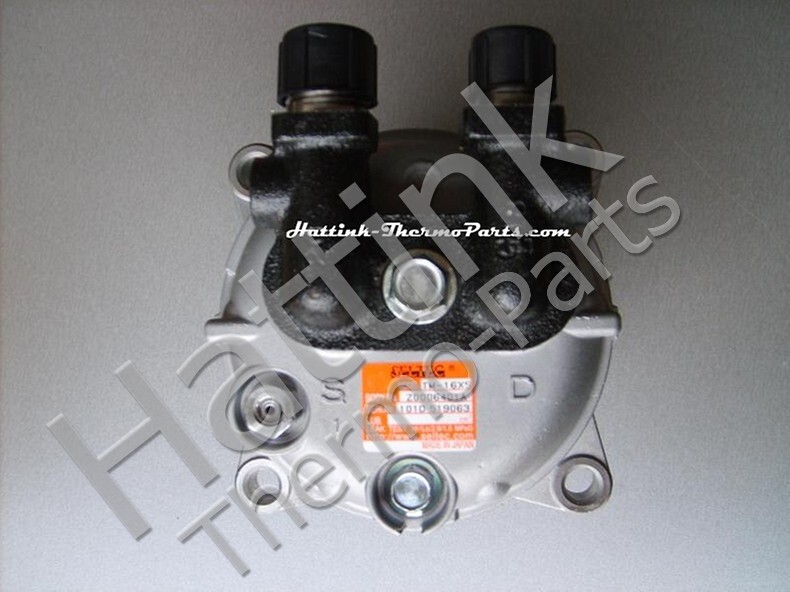

Connection Type: O-Ring
Suction Coupling: (G10) 7/8" 14UNF
Press Coupling: (G8) 3/4" 16UNF
Mounting: 4 mounting ears
with hole size Ø10.3
Heart size Hole/Hole 104mm
Cylinders: 6
Rotation: CW/CCW

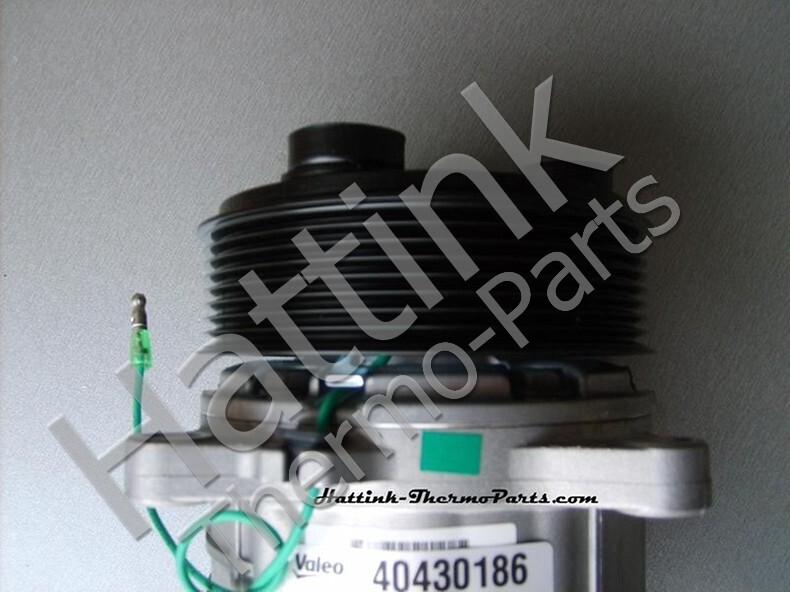

Coupling/Clutches info:
Pulley at groove: Ø 119 mm
Pulley at side edge: Ø 122.8 mm
Voltage: 24V DC
Consumption: 45 Watt 1.88amp
Connection: 1x wire +side / Ground is Body
Number of grooves: 8 Type Poly-V 8
Groove size: 3.56mm
Speed range: 700-6000 RPM
Compressor type:
Seltec/Zexel TM16 XS / TM-16HD / HX
Connection: O-ring
Housing type:Z0006401
B (mm) 46.5 mm
C (mm) 83.3 mm
Description on Aircopomp:
Seltec
HFC134a Model TM-16XS
Body No.Z0006401A
LUB. CM³
LEAK.TEST Hi/Lo:2.9/1.5 MPaG
Made in Japan
