Please note that O-rings
Not supplied,
Zexel / Tama / Valeo
Compressors 24V:
Description:

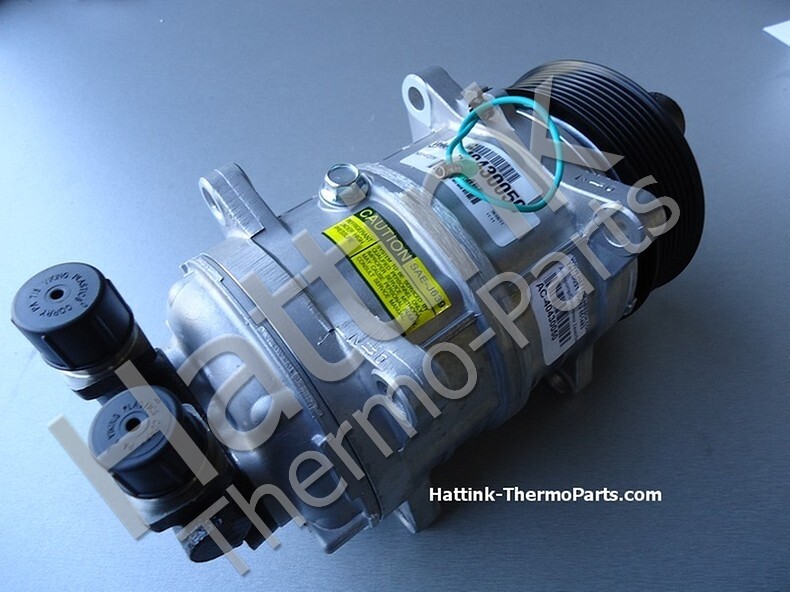

AC Compressor: TM16HS (TM16HD)
Connection: O-ring
Clutch Type: 3-Eye
Voltage: 24V DC
Power Consumption 49 W maximum
Ø119 mm Poly-V 8
Connection: Vertical
Ambient Temperature Under 212 F (100 C)
Pressure Max: 284 psig (1960 KPa)
CAUTION: The A/C system pressure must
not exceed 284 psig (1960 KPa).
Working Pressure Max Suction :
R134a -10 °C 85 PSIG
Compressor info:
Capacity: 163cc
Refrigerant: (HS) R134A
Oil type (HS) ZXL 100PG / (HX) delivered without oil / (HD) 5GS
Oil volume: 180 ml

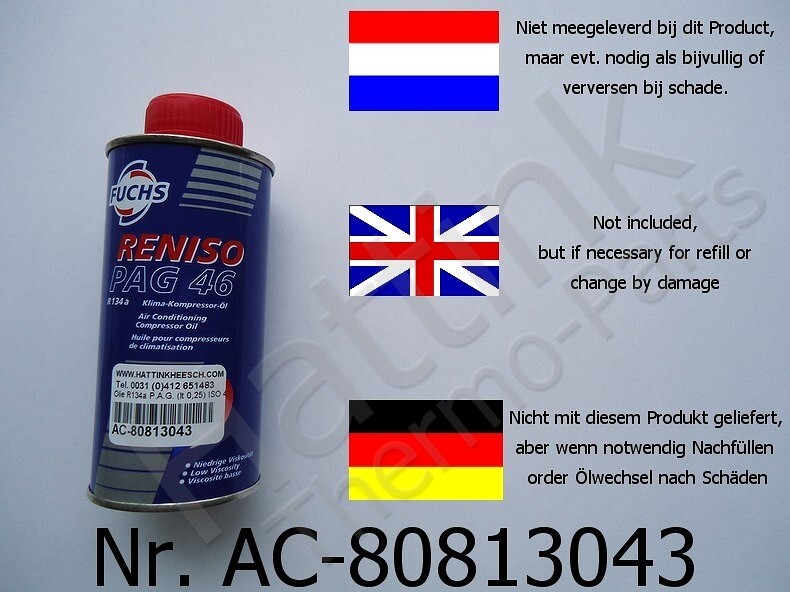

Oil type of us see Photo
Connector Type: O-Ring

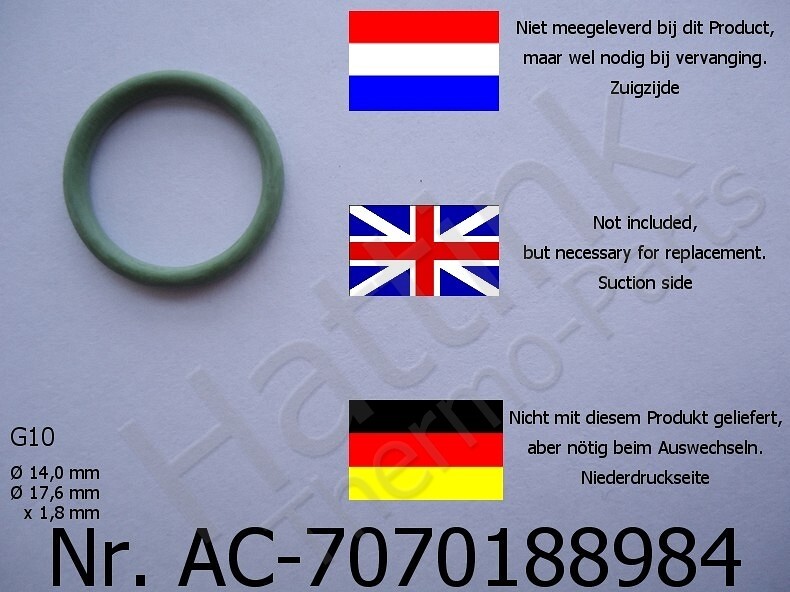

Suction Coupling: (G10) 7/8 "14UNF

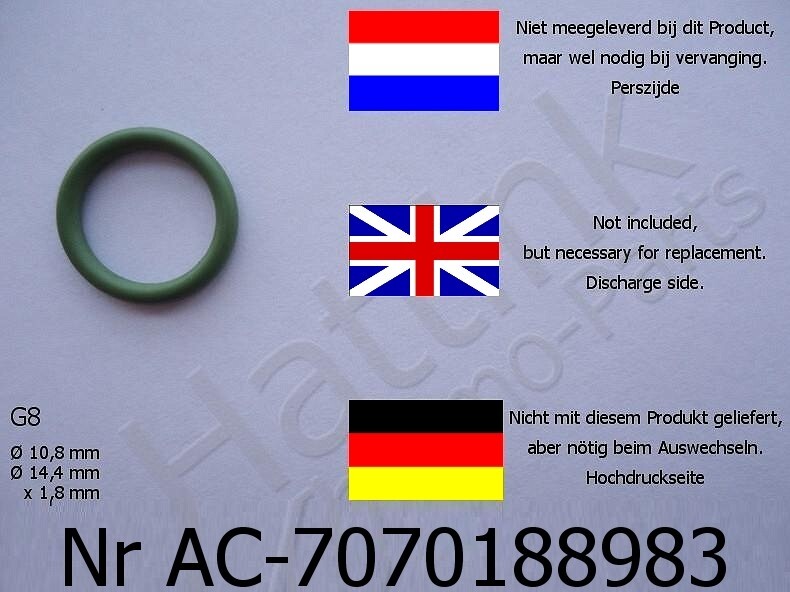

Clutch Press: (G8) 3/4 "16UNF
Mounting: 4 mounting ears
with hole size Ø10,3
Heart size Hole / Hole 104mm
Cylinders: 6
Rotation: CW / CCW
Clutch / Cluts info:

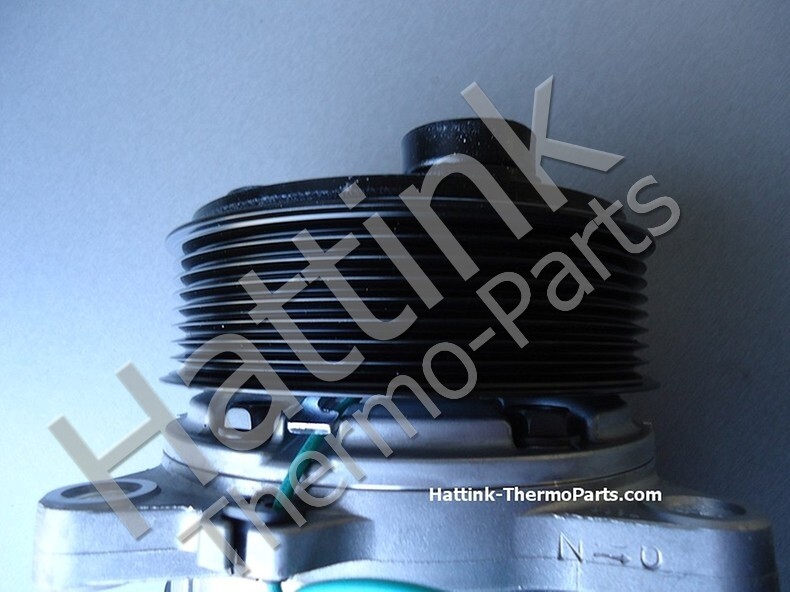

Pulley with groove Ø 119 mm
Pulley at side edge: Ø 122.8 mm
Voltage: 24V DC
Consumption: 45 Watts 1,88amp
Connection: 1x silk thread + / Body Mass is
Number of slots: 8 Type Poly-V 8
Groove size: 3,56mm
Speed ??range: 700-6000 RPM
Compressor type:
Seltec / Zexel TM16 HS / TM-16HD / HX
Connection: O-ring
Enclosure Type: Z0006398

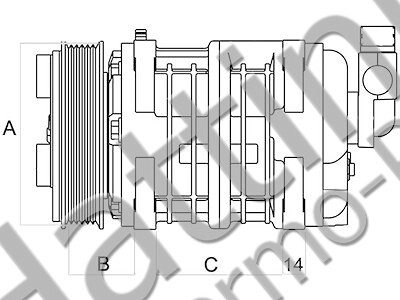

B (mm) 46.5 mm
C (mm) 83.3 mm

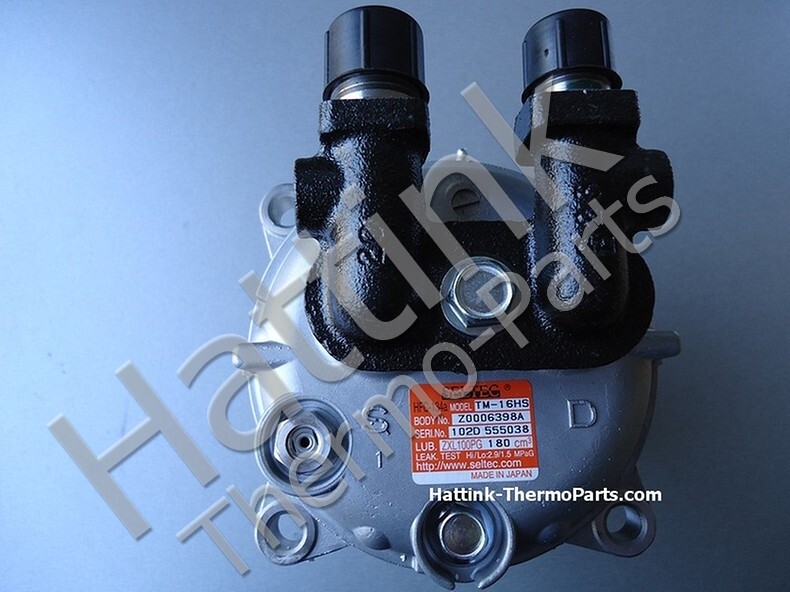

Description on Aircopomp:
Seltec
HFC134a Model TM-16HS
Body No.Z0006398A
LUB.ZXL100PG 180 CM³
LEAK.TEST Hi / Lo: 2.9 / at 1.5 MPaG
Made in Japan
N204827F
According to the rules art.SAE-J639
OE no. D054524
