This Compressor version
(TM13XD / TM13XS)

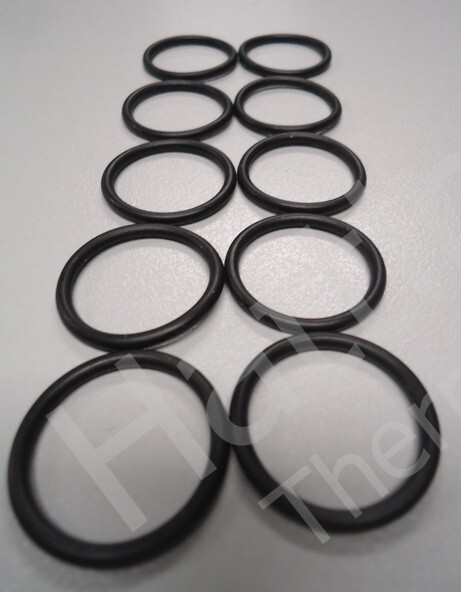

Note O-rings
Not included,
See photo, s
Will always be delivered without carter oil
and magnetic clutch

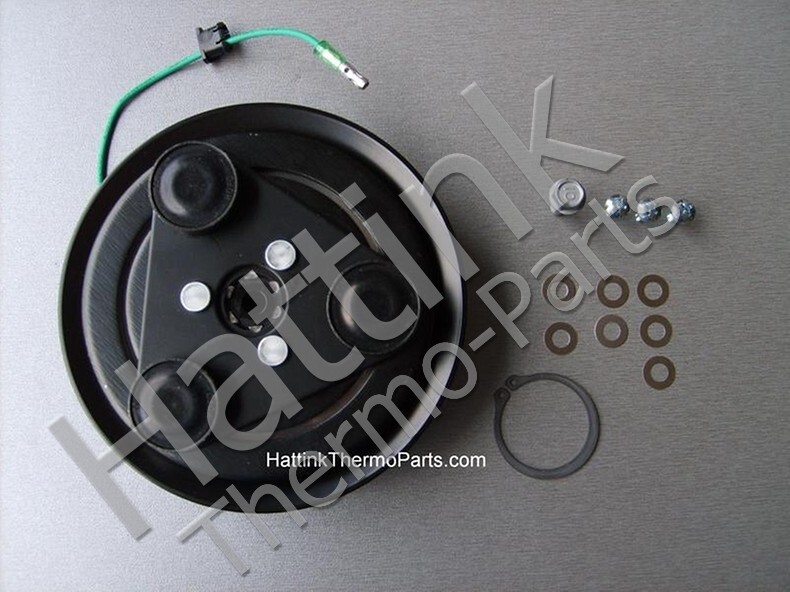

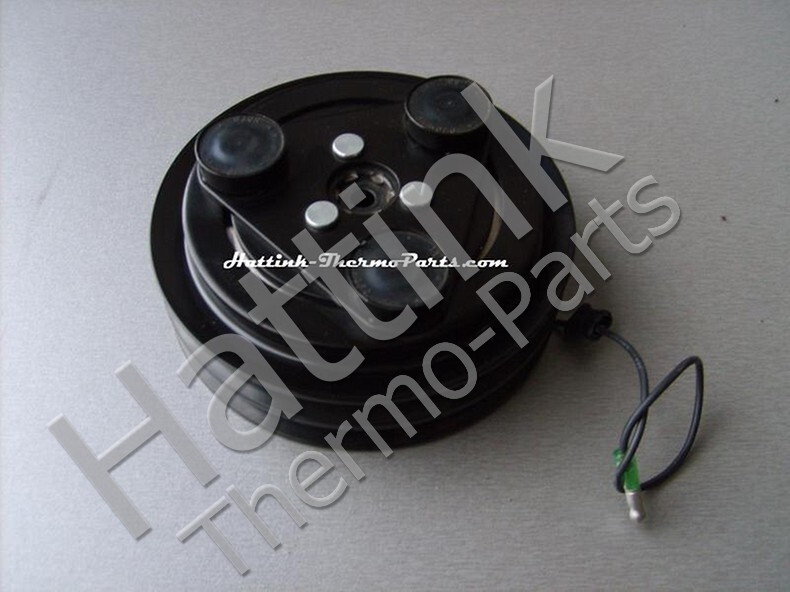

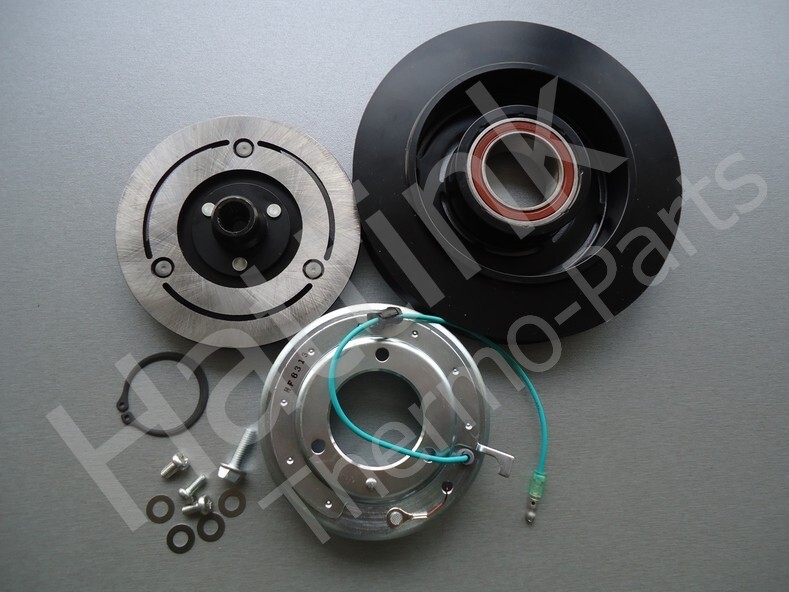

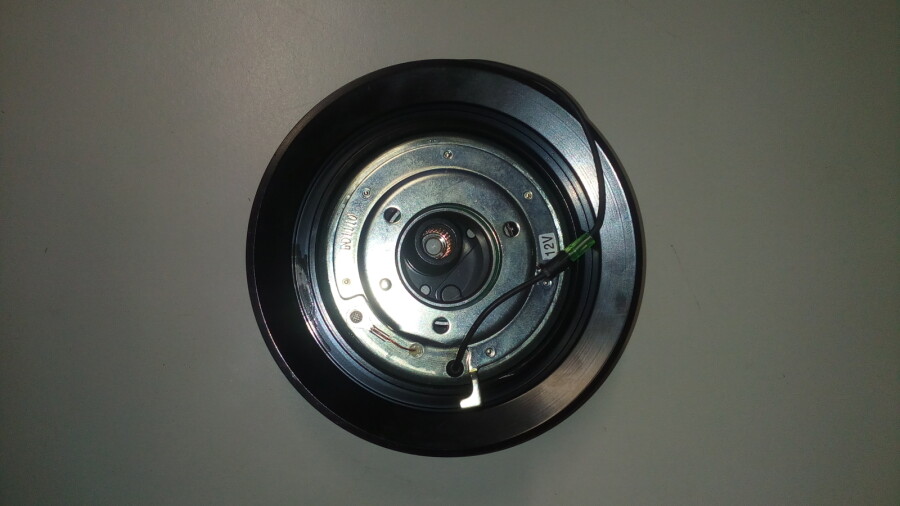

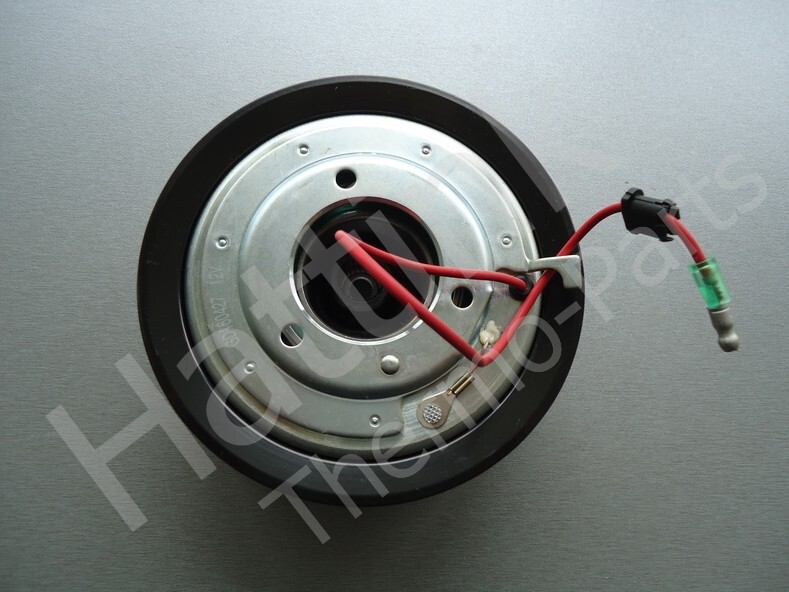

It is possibly to order the correct oil and Clutch
See below: Adding Accessories
Zexel / Tama / Valeo
The compressors
Description Air Compressor:

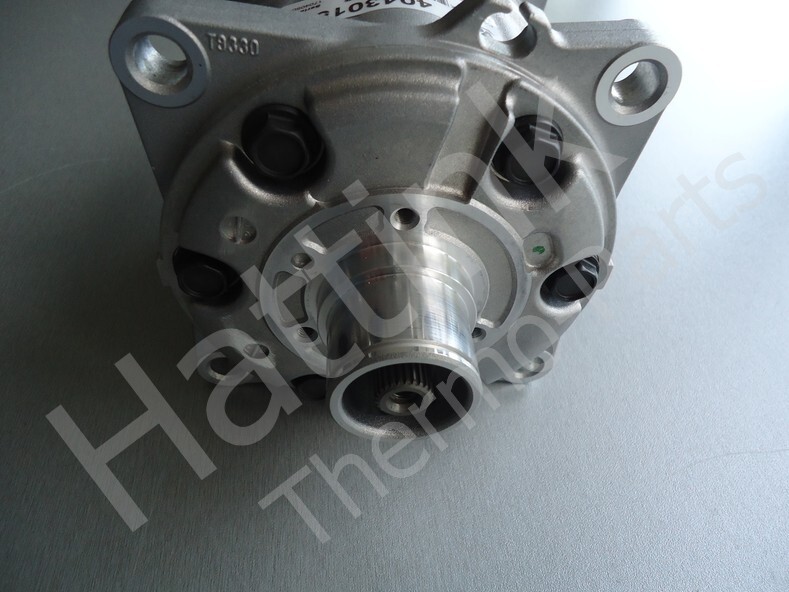

AC Compressor Seltec TM13 XS
Connection:

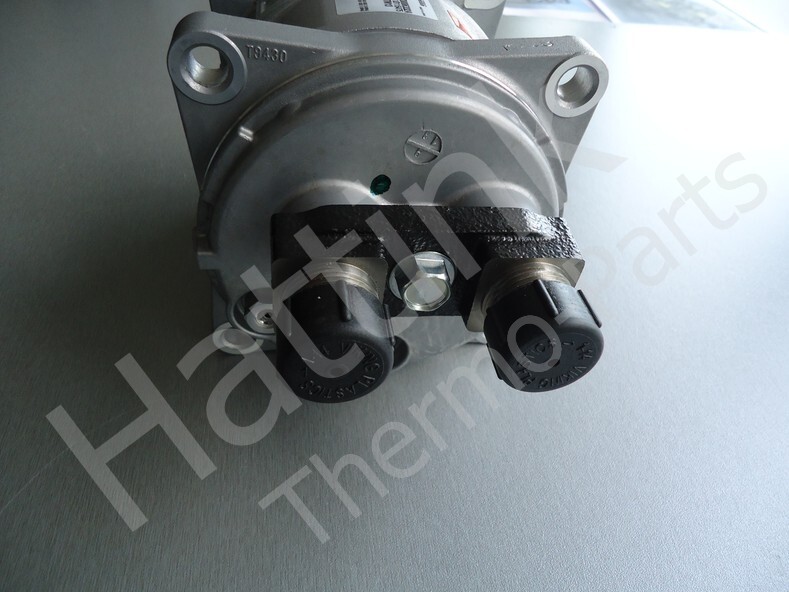

Rotolock / Rotalock O-ring
Horizontal Connection
Zexel / Tama / Valeo Compressor info:
Capacity / impact volume: 131cc
Refrigerant: R404a / R134A
Oil type: (or Equiv.)
Quantity of oil:
Oil type of us see Photo
Connection Type: Rotolock
Coupling suction: 1 "14UNS
Coupling Press: 1 "14UNS
www.Hattink-ThermoParts.com
Compressor type:
Seltec / Zexel TM13XS / TM-13XS
Connection Rotolock O-ring
Housing Type: ZOOO6332A
B (mm) 46.5 mm
C (mm) 83.3 mm
Valeo N204824A
According to the rules art.SAE-J639
OE No.
Pompairco / ACPomp / Air Compressor
Celtec / Zeltec / Seltek / Zeltek / Sexel
Description on article:

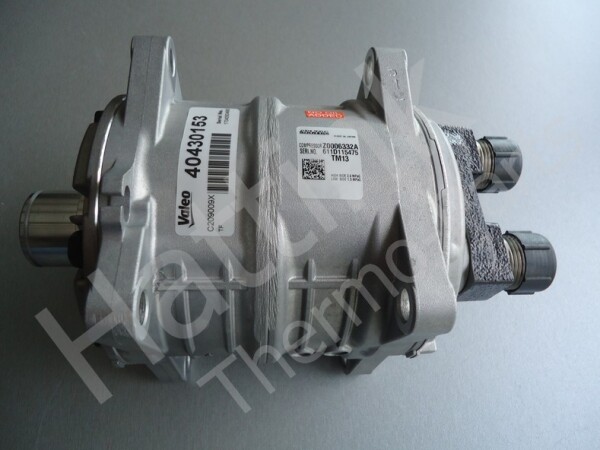

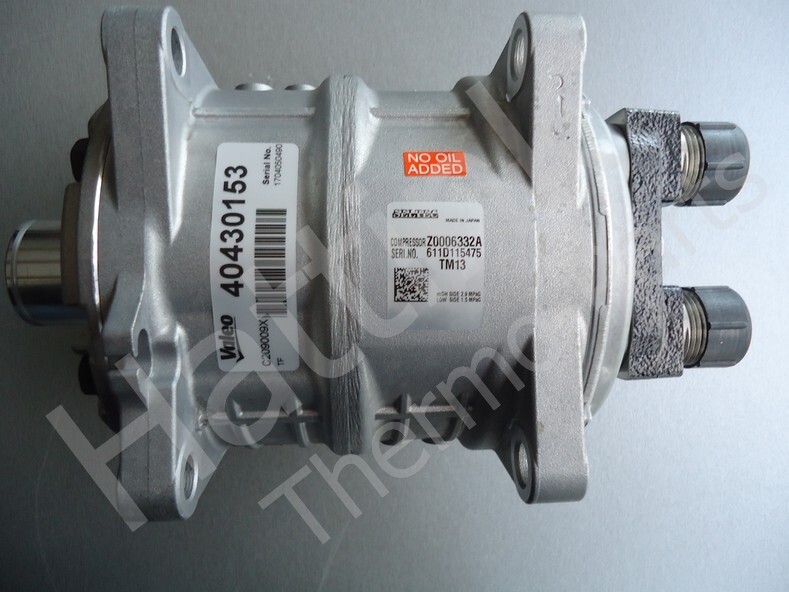

BODY No. ZOOO6332A / LUB. ZXL100PG 150cm³
LEAK. TEST Hi / Lo: 2.9 / 1.5 MPaG / 16
Made in Japan
4.7 kg
