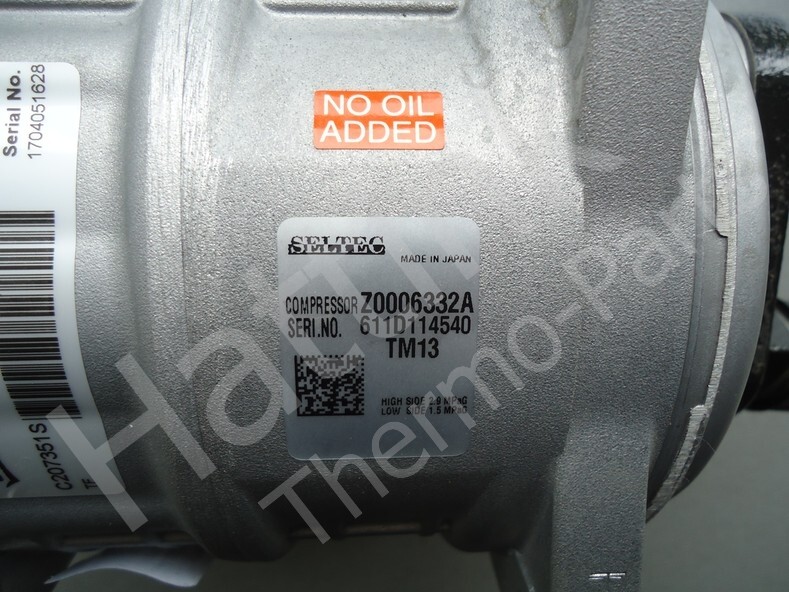

Watch out ! No oil in compressor supplied
and O-rings do not come along.
See photo, s
Will always be delivered without carter oil
and magnetic clutch
It is possibly to order the correct oil and Clutch
See below: Adding Accessories
Zexel/Tama/Valeo
Definition: Airco Compressor:
AC Compressor:Seltec TM13XS
Connection: Horizontaal O-ring
Compressor info:
Capacity: 131cc
Refrigerant: (HX) R404a/R452A
Oil type:
Oil quantity: 150 ml
Connection Type: O-Ring
Connection Suction: (G10) 7/8" 14UNF
Connection Pers: (G8) 3/4" 16UNF
Mounting: 4 mounting ears with hole size: Ø10,3
Heart size Hole/Hole: 104mm
Cylinders: 6
Tightening torque bolts Compressor:
35N.m 93.5kgfm
Compressor type:
Seltec/Zexel TMXS/ TMXD/TM13HS / TM13HD
Connection O-ring
Body type:Z0006332A
B (mm) 46,5 mm
C (mm) 83,3 mm

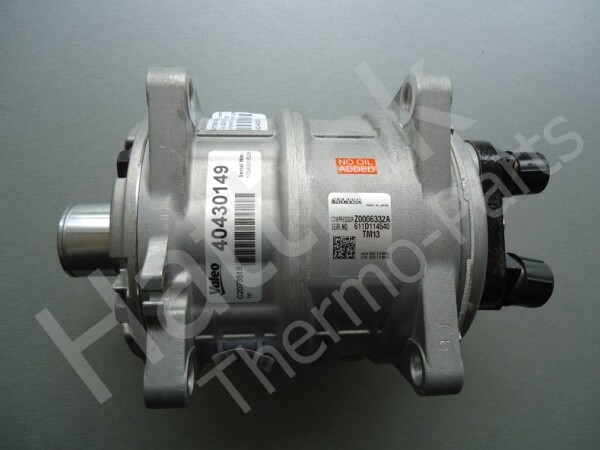

Description of Rear Aircopomp:
Valeo R404A/452A
TM13
Compressor Z0006332A
Made in Japan
Netto 6800 gram
OE nr. AC-40430149/40430149
C207351S/Valeo 40430149
Omschrijving op artikel:

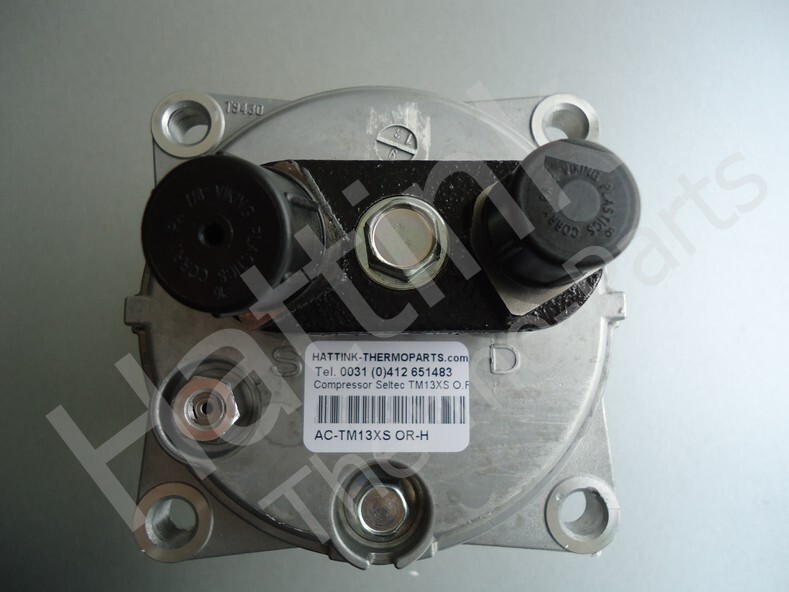

On Body T9430 the back ear side

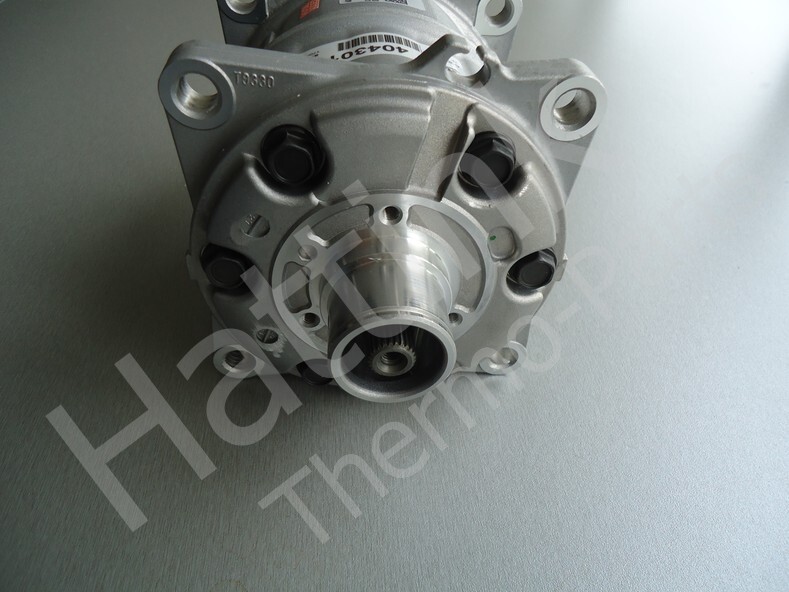

On Body T9330 the front ear side
S=Suction Side
D=Discharge Side
G614E0528
Examples and applications or
names and TKunit codes:
