This Compressor version
(TM13HS / TM13HD)
Pay attention to O-rings
Not supplied,

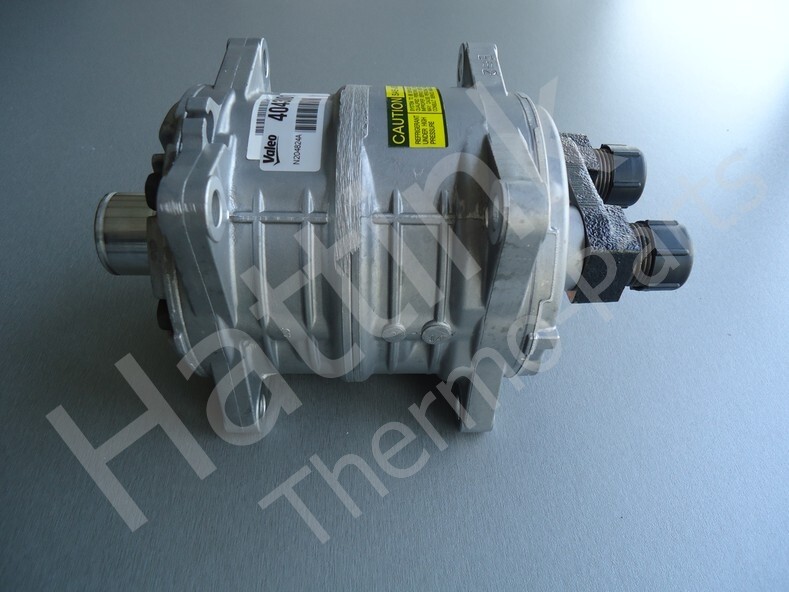

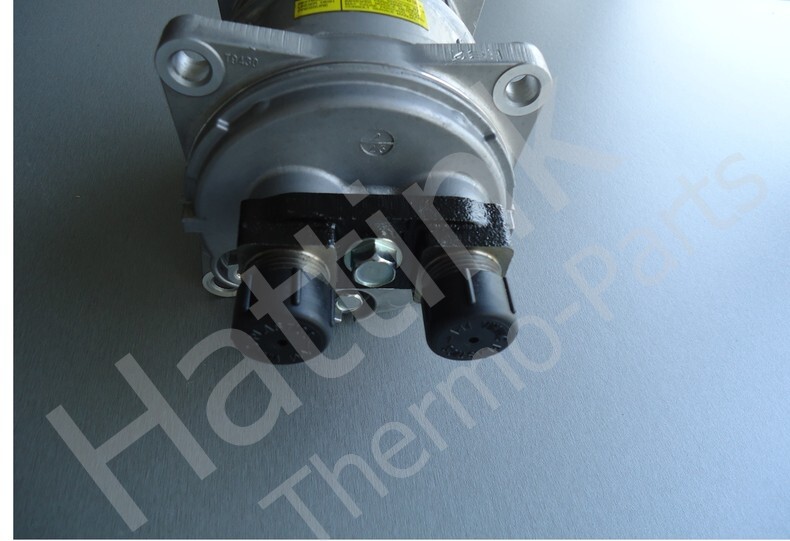

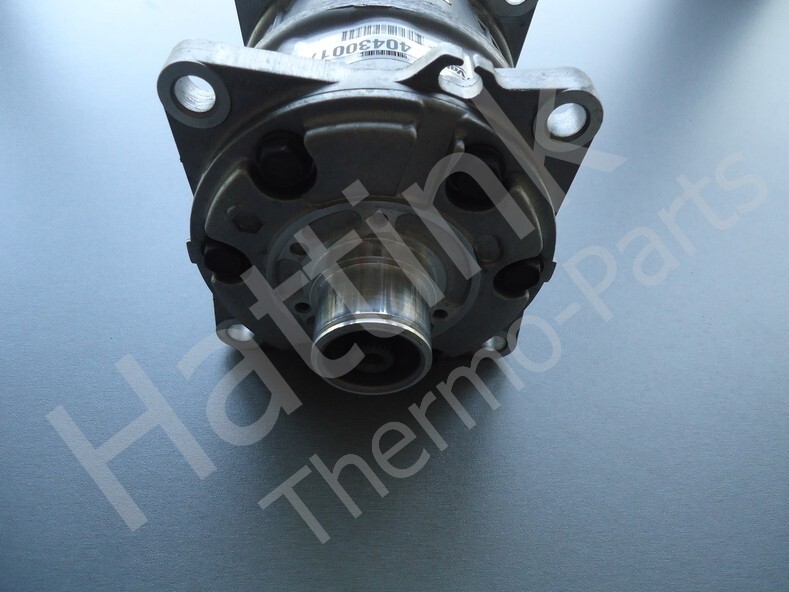

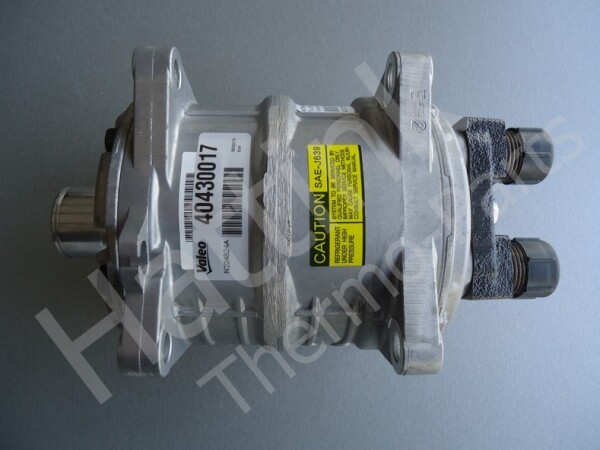

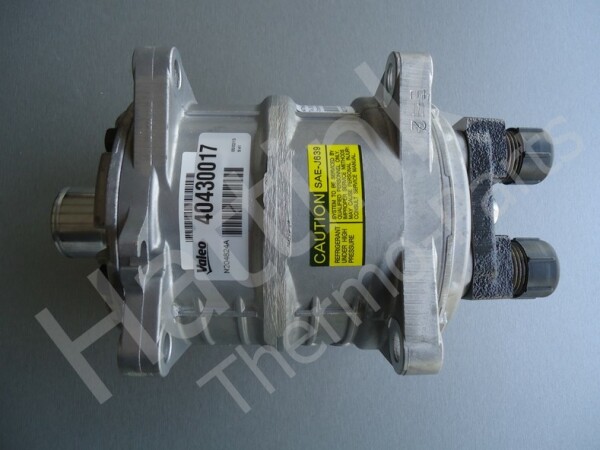

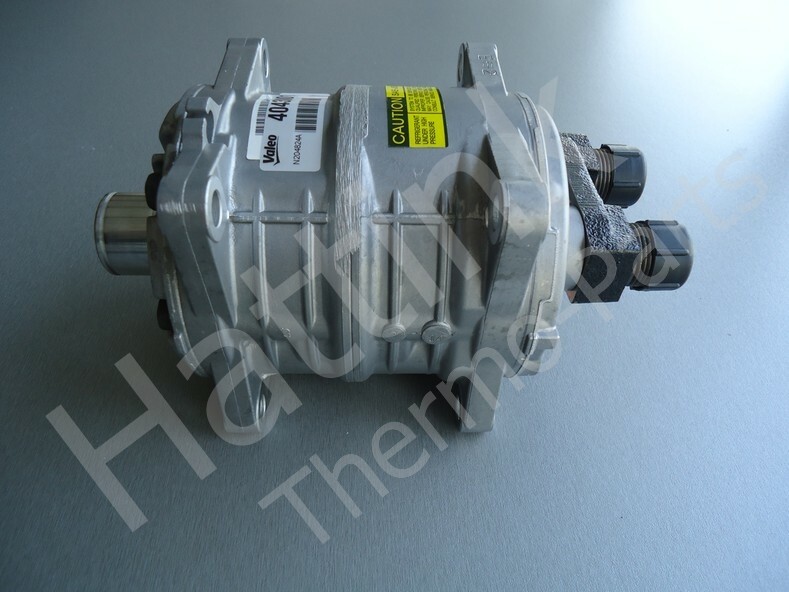

See photos
Is always supplied without Magnetic coupling / Clutch
Possibly. the correct coupling separately when ordering
Zexel / Tama / Valeo
Compressors
Description Airco Compressor:
AC Compressor Seltec TM13 HS
Connection:
Rotolock / Rotalock O-ring
Connection Horizontal
Zexel / Tama / Valeo Compressor info:
Capacity / stroke volume content: 131cc
Refrigerant: R134A
Oil type: ZXL 100PG (or Equiv.)
Amount of oil: 150cc
Oil type from us see Photo
Connection Type: Rotolock
Coupling Suction: 1 "14UNS
Clutch Press: 1 "14UNS
www.Hattink-ThermoParts.com
Compressor type:
Seltec / Zexel TM13HS / TM-13HD
Connection Rotolock O-ring
Housing type: Z0006329A
B (mm) 46.5 mm
C (mm) 83.3 mm
Valeo N204824A
According to the rules art.SAE-J639
OE No. 3CMP785
Pump air conditioner / AC pump / AC compressor
Celtec / Zeltec / Seltek / Zeltek / Sexel
Description on article:
Valeo / N204824A / SAE-J639 / B2 / T9430
17/2/3 / SELTEC / HFC-134a / G312E0019
BODY No. ZOOO6329A / LUB. ZXL100PG 150cm³
LEAK. TEST Hi / Lo: 2.9 / 1.5 MPaG / 16
Made in Japan
5.1 kg
