No oil in the compressor supplied

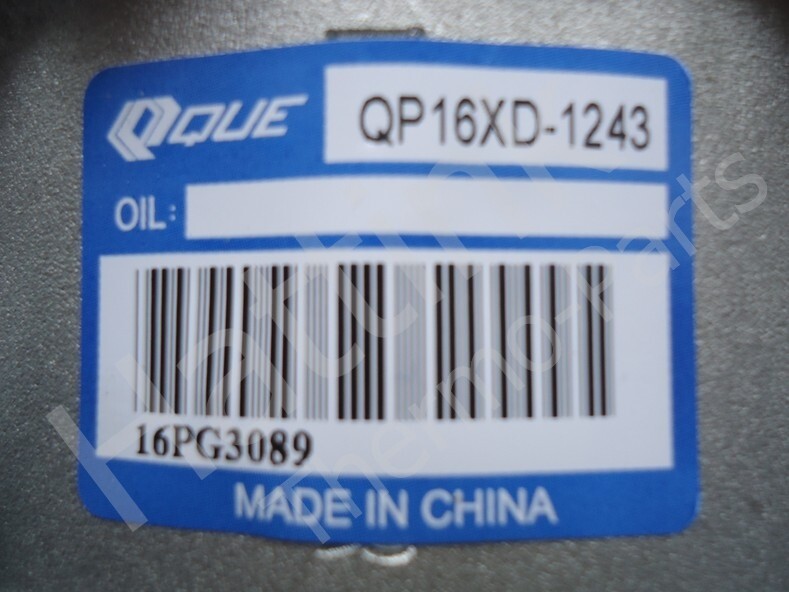

(QP16XD-1243)

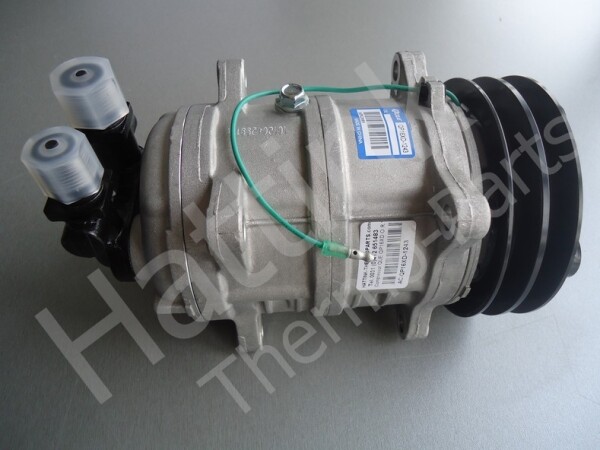

Description A/C Compressor
QP16XD OR Vertical 24V 5"1/4 2G A
Displacement 162,9 cc
Refrigerant R404a
Oil Quantity 0 cc

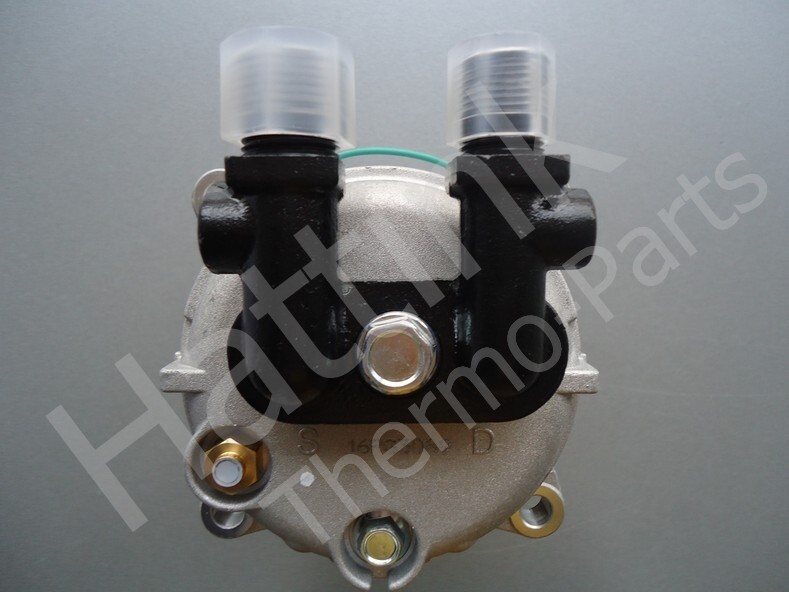

Suction fitting 7/8" 14UNF
Discharge fitting 3/4" 16UNF

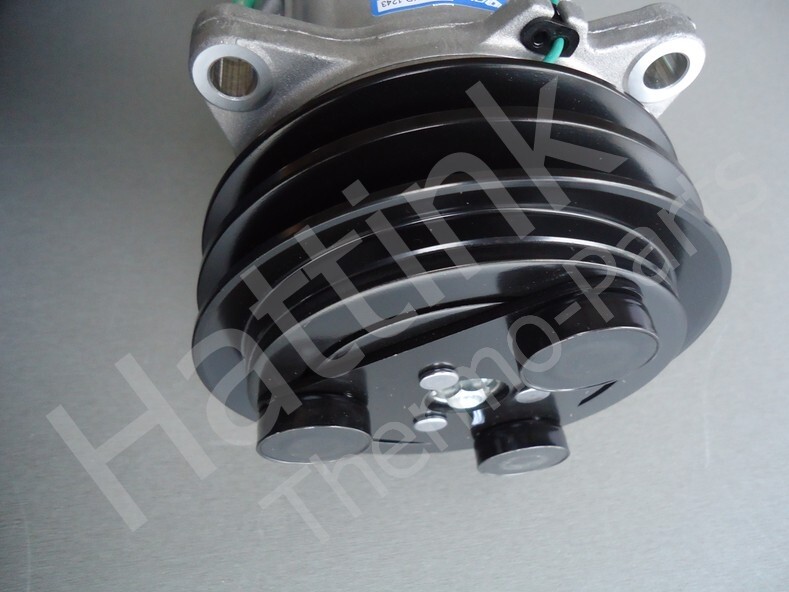

Pulley Diameter Ø 135 mm
Voltage 24V
Number of grooves 2 "A"
Section Groove 12,7 mm
Compressor Type QP16XD
Koppeling type: 3 Eye
Fittings OR O.
B (mm) 39,5 mm
C (mm) 83,3 mm
Made in China
Netto 7400 gram
Interchangeable with AC-40430179
Applications and Examples or
Names and product codes:
It is not allowed to copy this.
AC-40430179/ AC40430179/ 40430179
AC-QP16XD1243/ACQP16XD1243
AC QP16XD1243
