No oil in the compressor supplied
((QP16HD-1180)

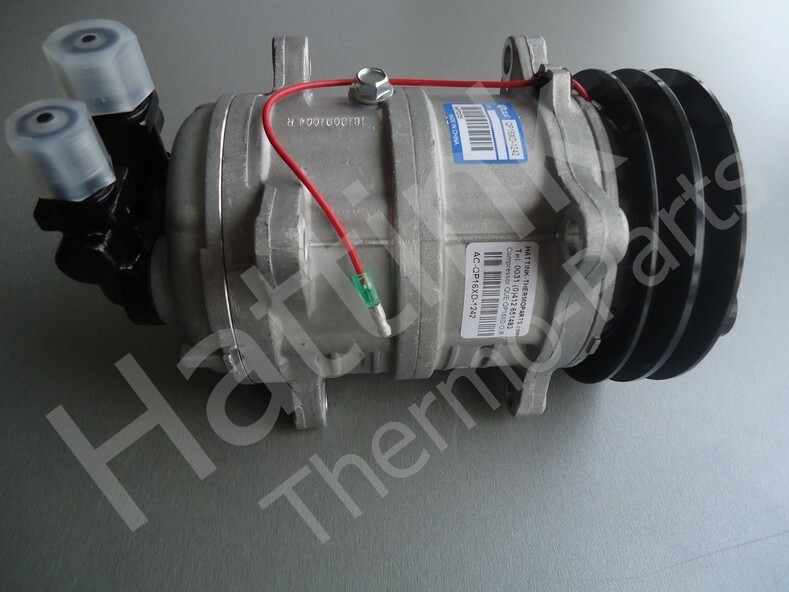

Description A/C Compressor
QP16HD OR Vertical 12V 5"1/4 2G A
Displacement 162,9 cc
Refrigerant R134a
Oil Quantity 0 cc
Suction fitting 7/8" 14UNF
Discharge fitting 3/4" 16UNF
Pulley Diameter Ø 132 mm
Voltage 12V
Number of grooves 2 "A"
Section Groove 12,7 mm
Compressor Type QP16HD
Koppeling type: 3 Eye
Fittings OR O.
B (mm) 39,5 mm
C (mm) 83,3 mm
Made in China
Netto 7400 gram
Interchangeable with AC-40430177
Applications and Examples or
Names and product codes:
It is not allowed to copy this.
AC-40430177/ AC40430177/ 40430177
AC-QP16XD1242/ACQP16XD1242
AC QP16XD1242/AC-16PT2725
AC16PT2725/AC-16PT2725
