No oil in the compressor supplied
(QP15XD-1238)

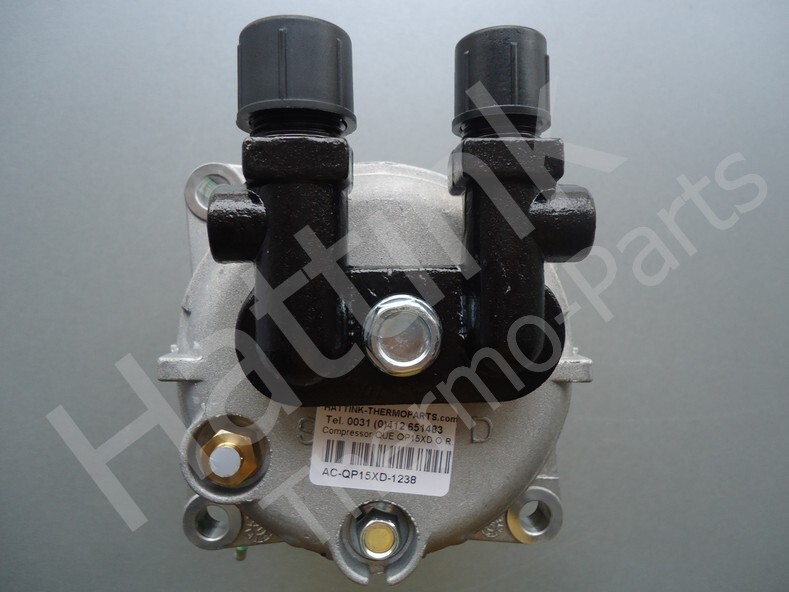

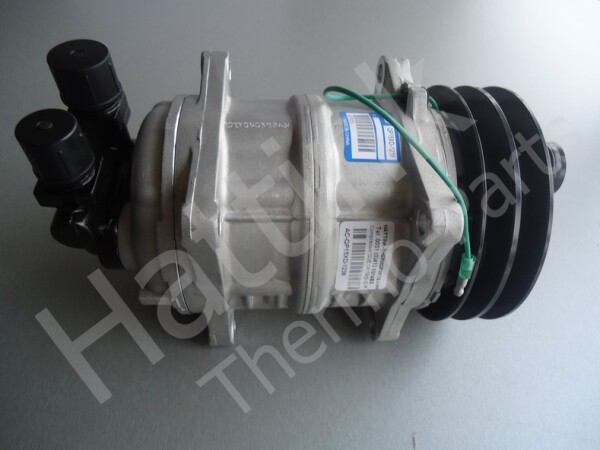

Description A/C Compressor
QP15XD OR Vertical 24V 5"1/4 2G A
Displacement 162,9 cc
Refrigerant R404a
Oil Quantity 0 cc
Suction fitting 7/8" 14UNF
Discharge fitting 3/4" 16UNF
Koppeling type: 3 Eye

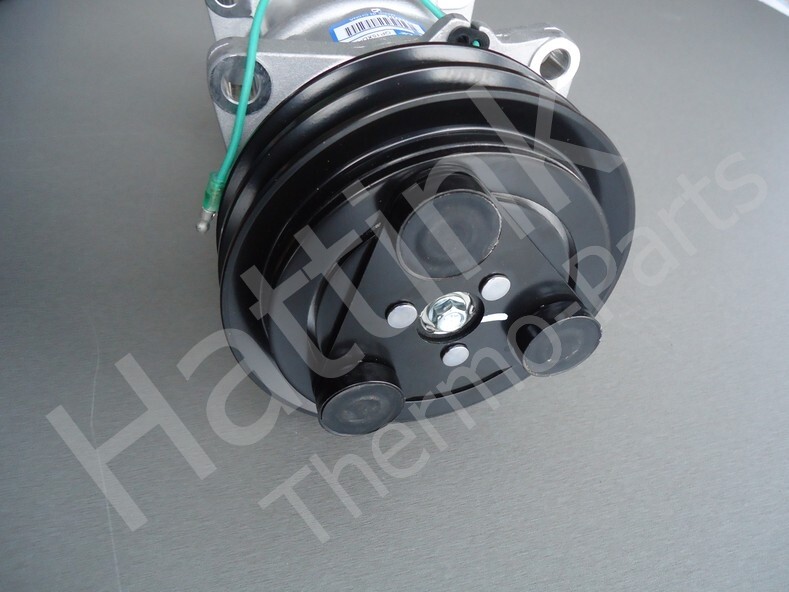

Pulley Diameter Ø 135 mm
Voltage 24V
Number of grooves 2 "A"
Section Groove 12,7 mm
Compressor Type QP15XD
Fittings OR O.
B (mm) 39,5 mm
C (mm) 83,3 mm
Made in China
Net 7400 gram
Interchangeable with AC-40430161

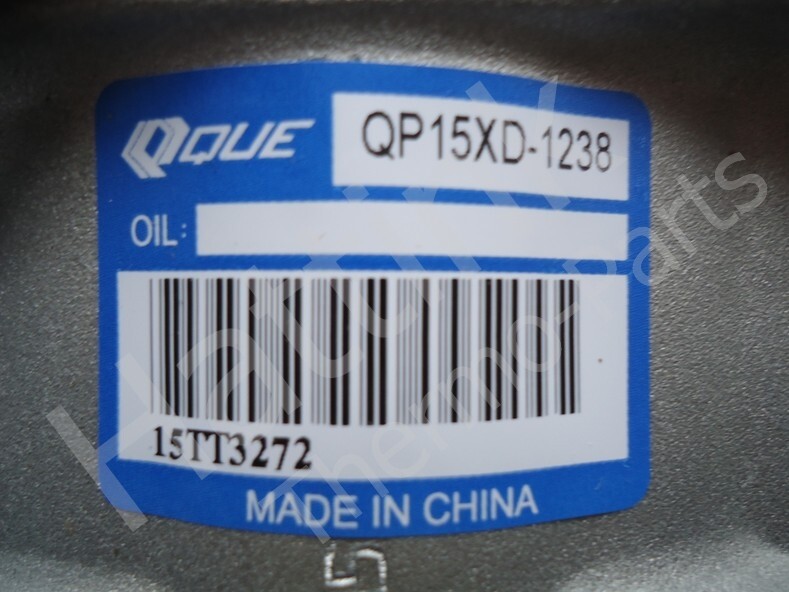

15TT3252
Applications and Examples or
Names and product codes:
It is not allowed to copy this.
AC-40430161/ AC40430161/ 40430161
QP15XD-1238/ AC-QP15XD-1238/ ACQP15XD-1238/ ACQP15XD1238
15TT3252/ AC-15TT3252/ AC15TT3252
